3 Product description
3.1 Device description
Device size XS GN

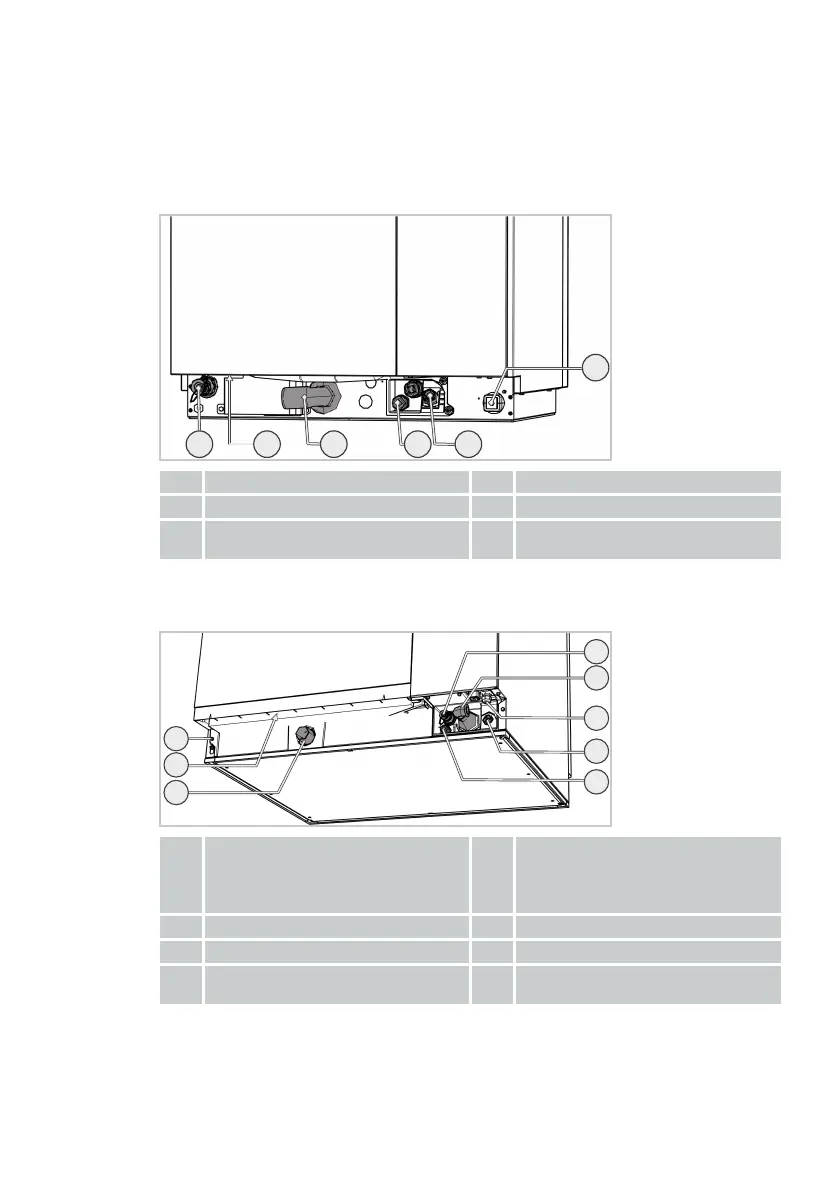

The connections for the installation are located on the rear side of the device:
1
23456
1 Equipotential bonding 2 Water connection
3 Electrical connection 4 Waste water connection
5 Safety overflow for wastewater
connection
6 Network connection
Device size 6 half size to 10 full size GN
The connections for the installation are located on the rear side of the device:
1
2
4
8
6
7
3
5
1 Network connection 2 Only for gas devices: Gas connec-
tion
Only for electrical devices: Electri-
cal connection
3 Power supply 4 Water connection
5 Optional connection 6 Wastewater connection
7 Safety overflow for wastewater
connection
8 Equipotential bonding
