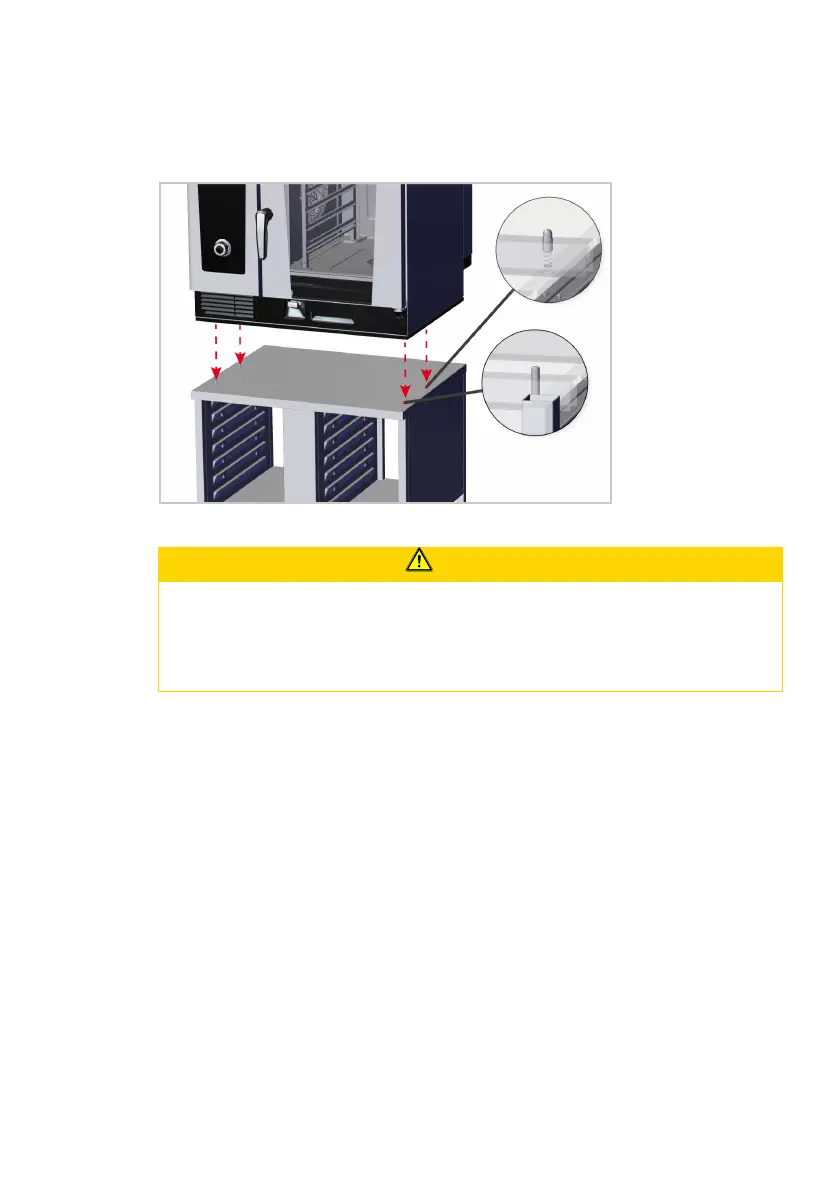

1. Lift the device onto the stand, e.g. using the lifting straps.
2. Position the device using the spring pins.
3. Screw the device to the stand using two screws. The illustration shows
schematically the position of the screwed-in screws in the stand. The
screws are fastened with nuts welded into the device.
5.2.3 Align and fasten the stand horizontally
CAUTION
Slipping of the device at the installation position
Risk of crushing if the device slips.
Gas lines may be damaged in gas devices.
n
Secure the device using the fixing set.
Non-mobile stand
Align stand horizontally
a The device is installed on the stand and is on the intended installation sur-
face.
1. Place two spirit levels on the device: One spirit level along the right edge of
the device and one spirit level along the front edge.
2. To align the device horizontally on the right, turn the stand feet on the front
right and rear right.
3. To align the device horizontally on the left, turn the stand feet on the front
left and rear left.
Fix stand
Secure the stand against slipping using the fixing set.
