5 | Setup
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US 39 / 84
20 half size 20 full size
x [mm] 741 946
x [inch] 29 1/8 37 1/4
a The foot locks and the fixing set are available.

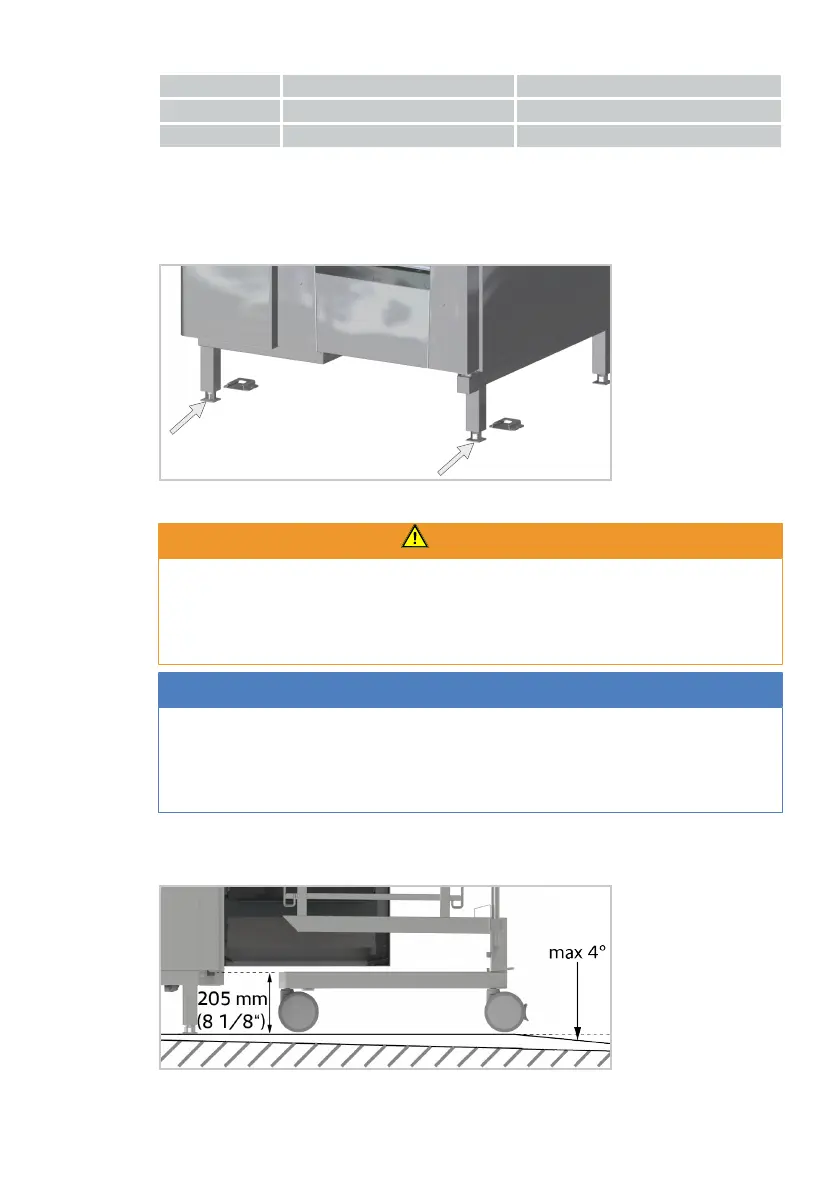

1. Secure the foot locks for the front feet to the floor with the special adhesive
or screws and dowels. Make sure that both foot locks point forward with
the openings.
2. Slide the floor device into the foot locks.
5.3.3 Align support rack trolley
WARNING
The maximum approach angle of the entry ramp is exceeded
Risk of burns due to hot liquid and food being cooked at too steep an
approach angle.
Make sure that the approach angle of the entry ramp is less than 4 degrees.
NOTE
Malfunction due to inclined support rack trolley
An incorrectly aligned support rack trolley can lead to malfunctions in the
device function, for example during cleaning.
Align the support rack trolley horizontally in the device.
1. Set a distance of 205mm [81/8inch] between the upper edge of the entry
frame and the floor using the feet on the support rack trolley. The distance is
required so that the support rack trolley can move correctly into the device.
