6 | Electrical connection
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US 47 / 84
Device size 20 half size GN, 20 full size GN

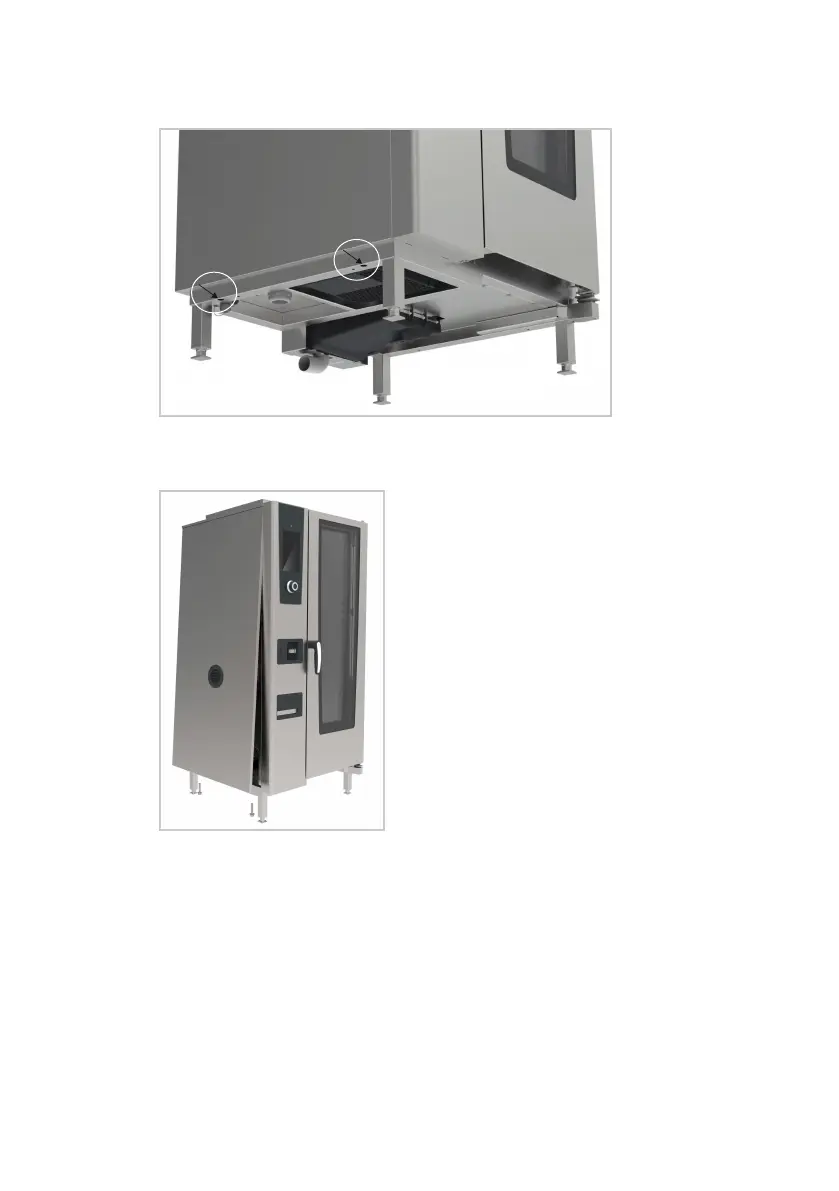

1. Loosen two screws on the underside of the side wall.
2. Lift the left side wall from below and pull the side wall downwards away
from the device.
>> The electrical compartment is open.
6.3 Connecting the electrical devices to the power grid
Notes on the power cable and connection point
n
There is a fixed connection for the electrical connection of the device.
n
Devices with a 3 NAC 400 V connection voltage can be connected via a
fixed connection (conduit connection) or connection with a safety switch.
n
You have your own supply cable on hand for the device.
n
The devices are supplied without a power cable.
n
Device size XS GN: The device is delivered with a power cable.
n
The connection point of the power cable is on the main contactor in the
electrical compartment behind the removable left side wall.
