5 | Setup
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US 27 / 84

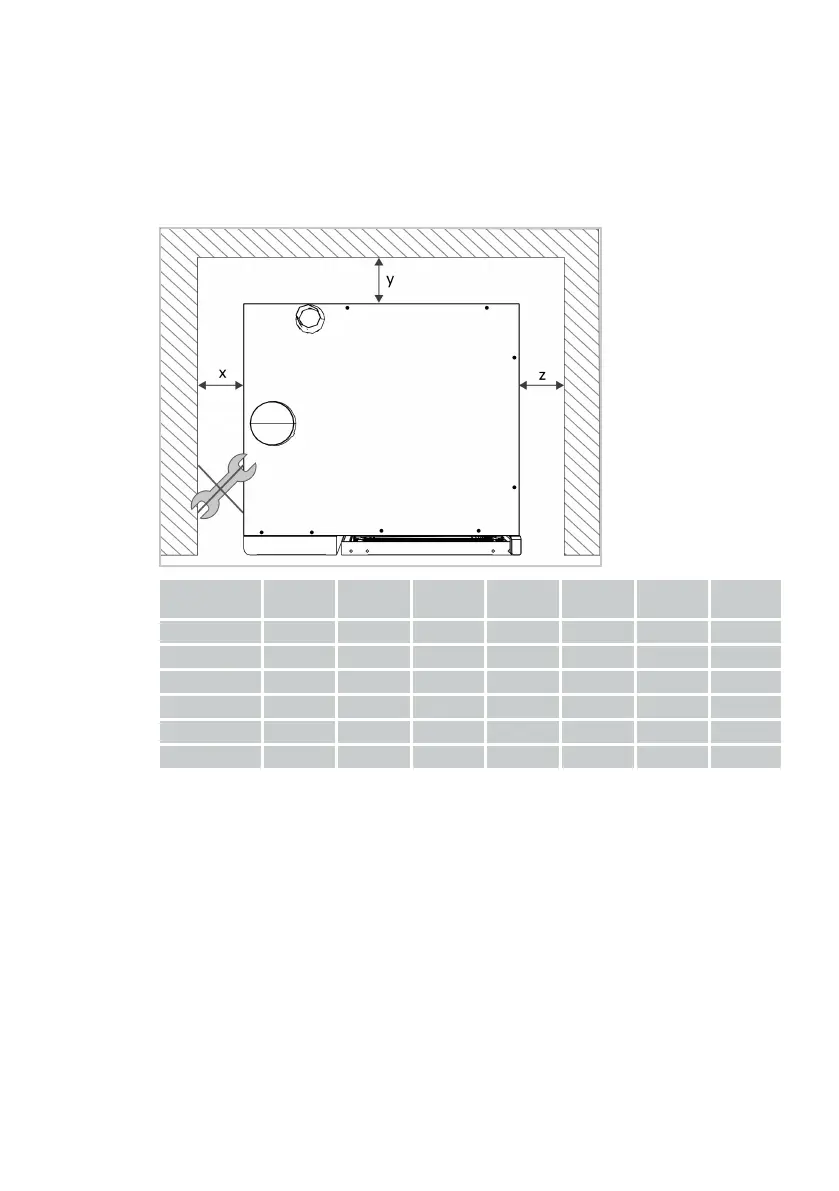

5.1 Minimum distance to the device
5.1.1 Distance from walls
Minimum distance to all sides
Set up the device taking into account the minimum distances to the wall. The
distances depend on the device size, as shown in the table below.
Device size XS 6 half
size
6 full
size
10 half
size
10 full
size
20 half
size
20 full
size
x (mm) 10 50 50 50 50 500 500
x (inch) 1/2 2 2 2 2 20 20
y (mm) 10 0 0 0 0 0 0
y (inch) 1/2 0 0 0 0 0 0
z (mm) 10 50 50 50 50 50 50
z (inch) 1/2 2 2 2 2 2 2
Recommended distance to the left side of the device
To ensure that there is sufficient space on the left side of the device to carry out
service work in the installation area, place the device on the left side at a recom-
mended minimum distance from the wall.
