5 | Setup
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US 31 / 84
Minimum distance from ceiling
x [mm] 400
x [inch] 16
Condensation breaker
If the steam from the ventilation pipe cannot be fed directly into an extractor
hood or ventilation ceiling, there must be a minimum distance between the de-
vice and the ceiling.

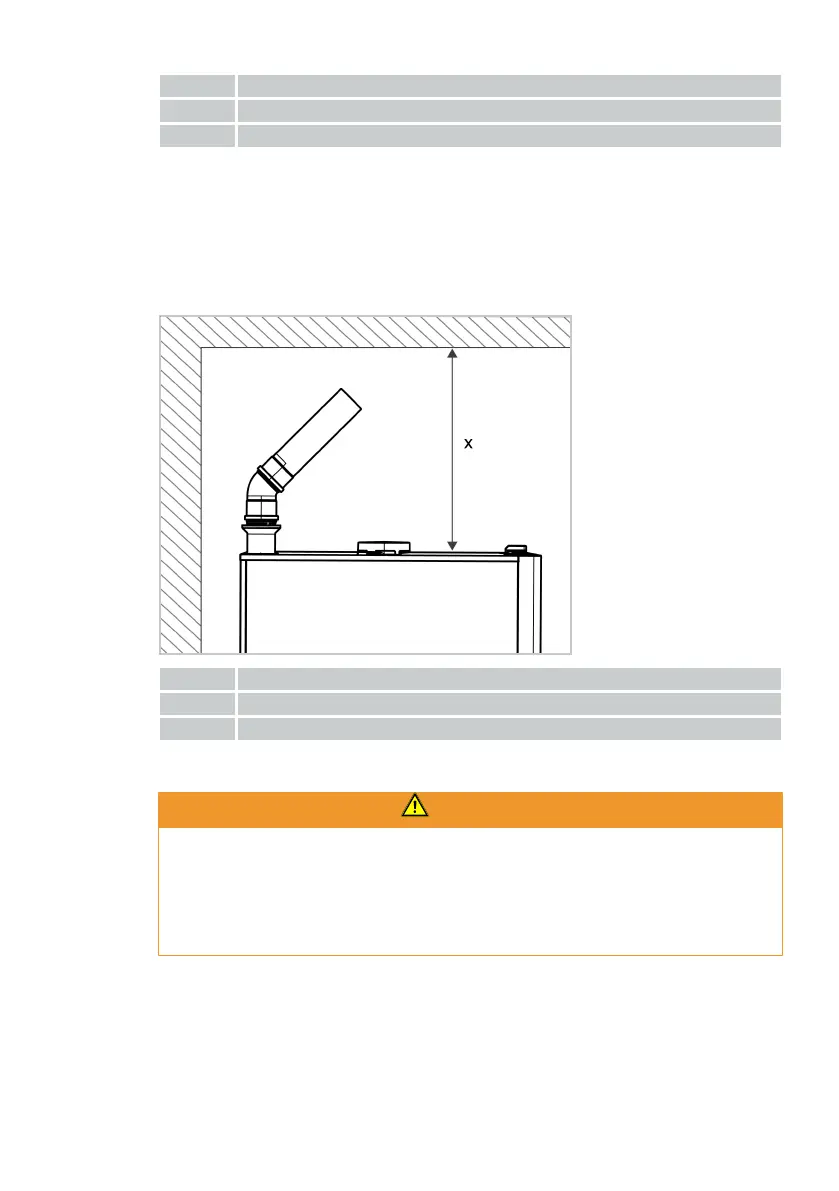

This space is needed to install a condensation breaker that can be used to direct
the flue gas air into uncritical areas.
Minimum distance from ceiling
x [mm] 500
x [inch] 20
5.2 Installation of tabletop devices
WARNING
Device falls from the installation surface
Risk of crushing and injury if the device is tilted or turned.
n
Do not tilt the device on the installation surface.
n
When turning the device, ensure that the weight of the device is evenly
distributed and that all device feet are on the installation surface.
