4 | Transport
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US 21 / 84
NOTE

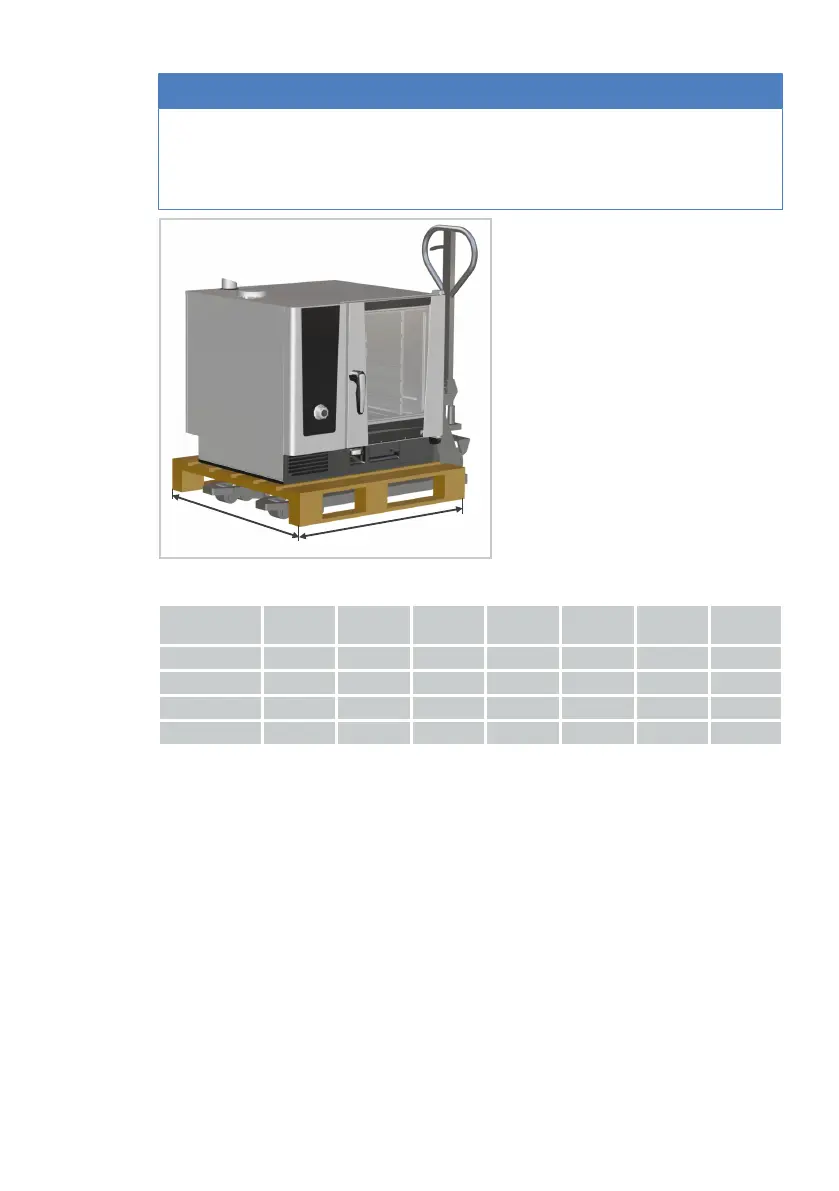

Transport with transport aid without protection
Transport the device on the pallet for as long as possible. Do not transport
the device with a transport aid or similar transport equipment without
protection. Use a wooden board for protection, for example.
x
y
Required door width with transport pallet
Device size XS 6 half
size
6 full
size
10 half
size
10 full
size
20 half
size
20 full
size
x (mm) 880 945 1150 945 1150 989 1194
x (inch) 34 5/8 37 1/4 45 1/4 37 1/4 45 1/4 38 7/8 47
y (mm) 930 935 1170 935 1170 969 1174
Y (inch) 36 5/8 36 3/4 46 1/8 36 3/4 46 1/8 38 1/8 46 1/4
Transport tabletop devices with transport pallet
a The packaging material is removed.
a The device is on the transport pallet.
a The device rests on the device base frame.
1. Transport the device to the installation site with the transport pallet.
2. Lift the device off the transport pallet on the lifting points or using the
transport straps and set it down on the designated installation surface. Fol-
low the description in these instructions for transporting using transport
straps.
>> The device is on the designated installation surface and is ready for setup
and installation.
Transport floor devices with transport pallet
Floor devices are delivered on a special, divisible transport pallet.
a The packaging material is removed.
a The device is on the transport pallet.
