6 | Electrical connection
80.06.083_iCombi Pro-iCombi Classic_IM_V01_en-US 45 / 84

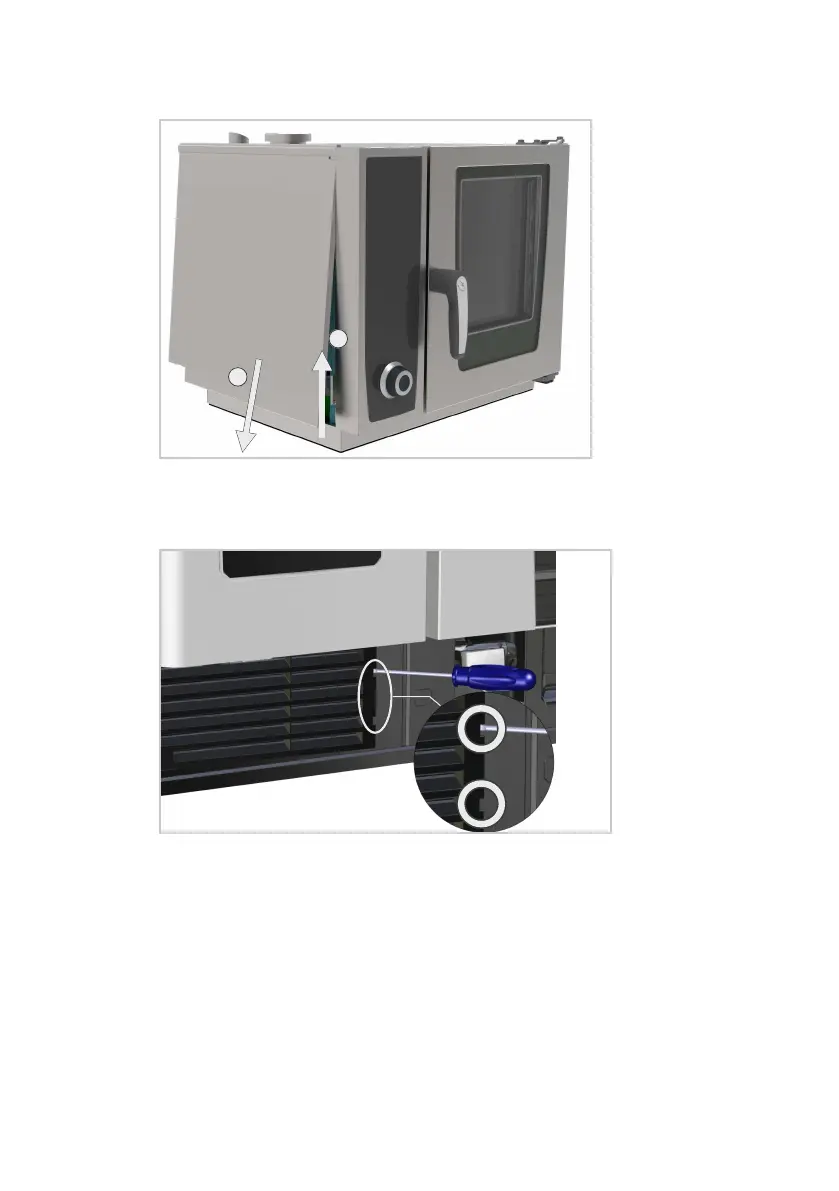

2. Lift the left side wall from below and pull the side wall downwards away
from the device.
>> The electrical compartment is open.
Device size 6 half size GN to 10 full size GN
1. Use a screwdriver to lever out the grille below the control panel.
