CHAPTER 4
INSTALLATION
SENSOR INSTALLATION
RAVEN RADAR SPEED SENSOR
NOTE: Raven Industries recommends the installation of a large, heavy mounting bracket (P/N 107-0159-693)
on the machine’s frame for mounting the radar speed sensor.

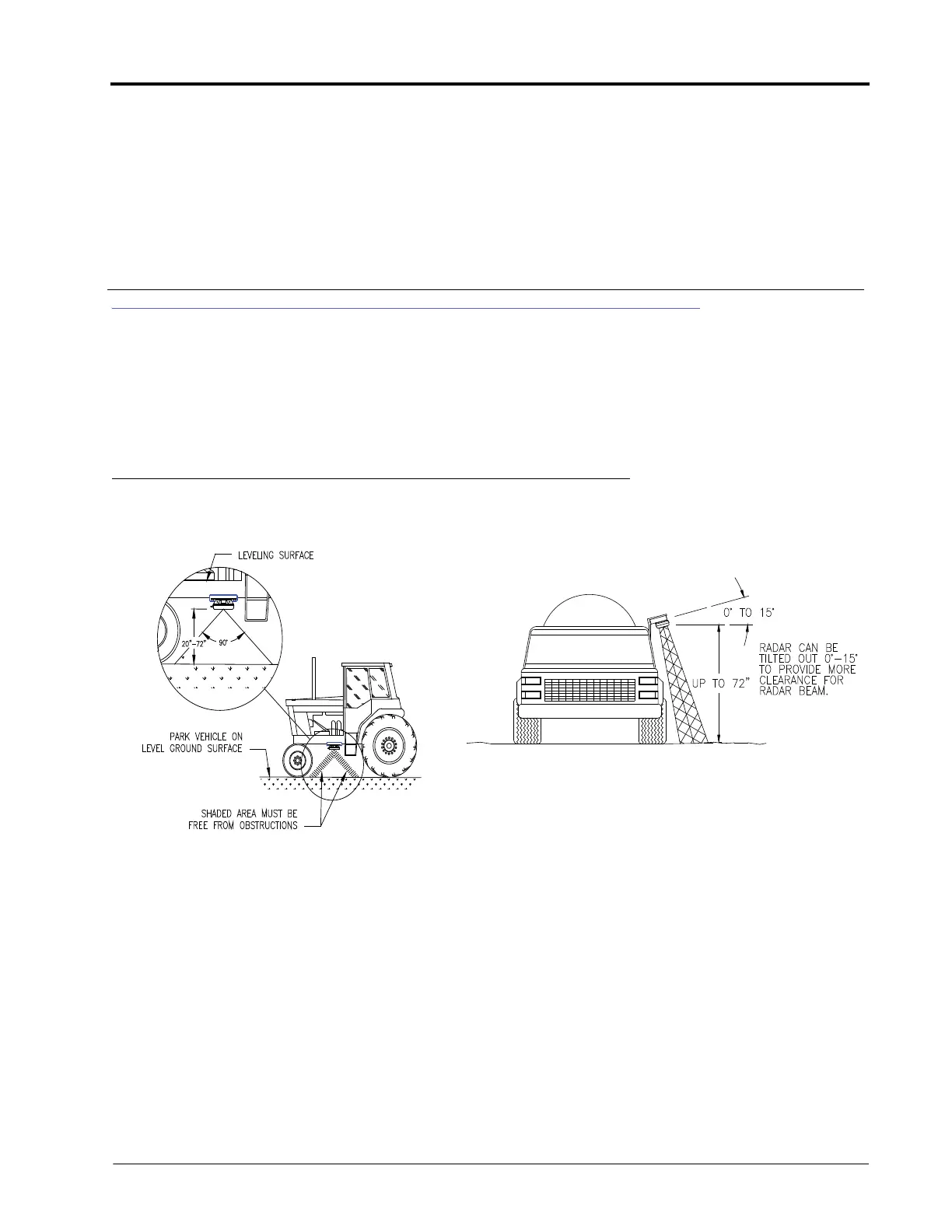

FIGURE 1. Radar Mounting Locations
1. Park the machine on a level surface.
2. Select the radar mounting location on the machine, considering the following factors:
• The line of sight from the lens to the ground must not be obstructed by structures or tires. Obstructions
must not come closer to the bottom of the radar than 20”.
• When viewed from side of the machine (end-to-end view), the radar lens must be parallel to the ground.
• When viewed from the front of the machine (side-to-side view), the radar may be tilted slightly, with no
more than a 15° tilt to provide more clearance and avoid obstructions.
3. Use a level to verify that the selected mounting bracket location is parallel to the ground.
4. Bolt the mounting bracket to the machine.
End-to-End View Side-to-Side View
To Next Page
