CHAPTER 5 CONSOLE PROGRAMMING
AND CALIBRATION
IMPORTANT: The SCS 440 console requires the selection of volume rate (US, SI, or TU), speed sensor type (SP1 or SP2),
and valve type (C-SD - standard valve, C-F - fast valve, C-FC - fast close valve, C-P - PWM valve, and C-PC
- PWM close valve). Hold the SELF TEST key to review the selections.
CONSOLE IDENTIFICATION
There may be situations that arise during which it may be necessary to contact Raven Industries with questions
about the SCS 440 system. The SCS 440 console has an identification label affixed that contains information useful
to the Raven customer support team to identify potential issues with the console or system. Please refer to this
information on the console when calling to request assistance.

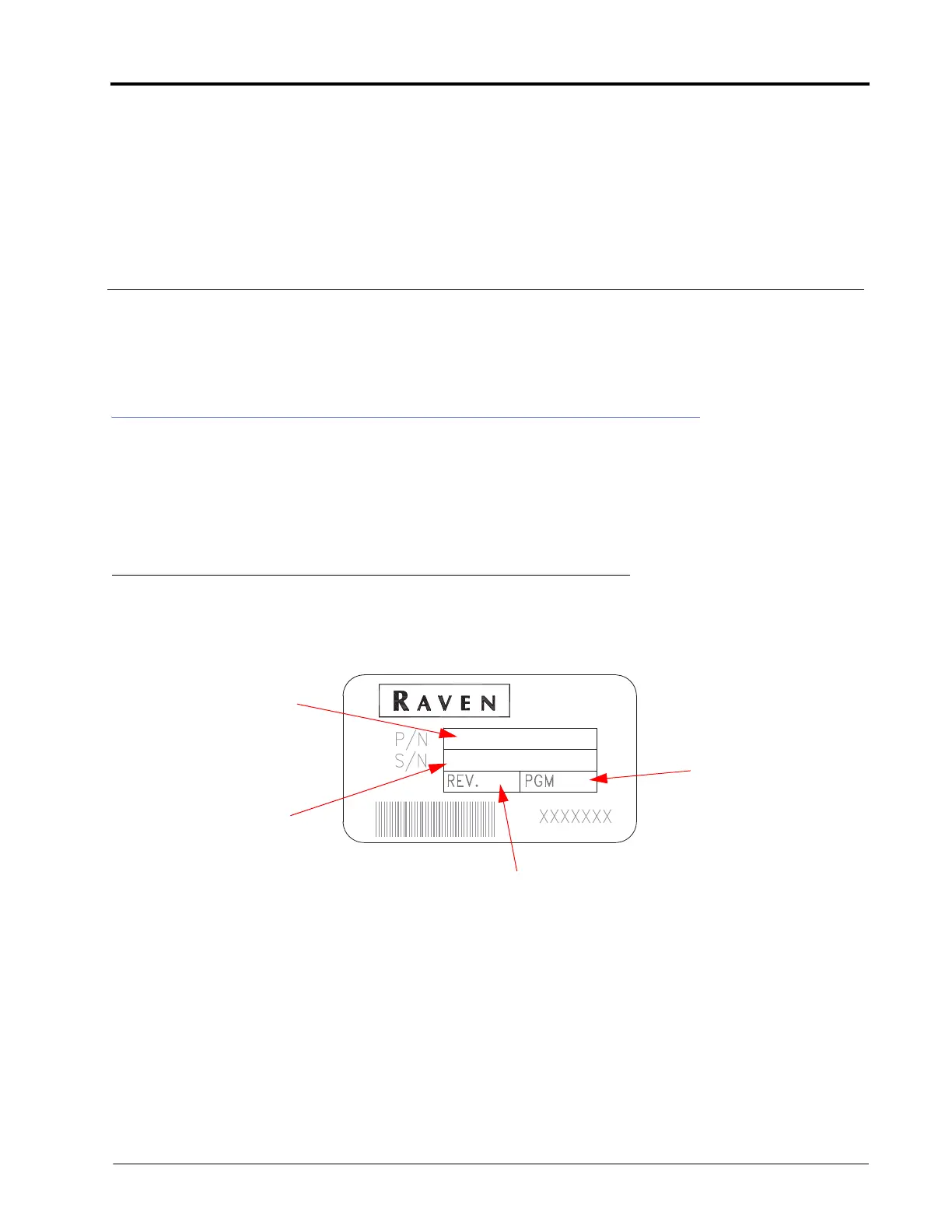

FIGURE 1. Identification Label
Indicates the firmware
version that was
loaded on the machine
at the time it was
manufactured
Indicates the revision
level of the console
Indicates the Raven part
number. This number
would be needed to
order a replacement
console.
Indicates the
identification number
unique to the console.
Used to identify when
the console was
manufactured and to
track the console if it is
sent back for repair.
