Chapter 4
32 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual

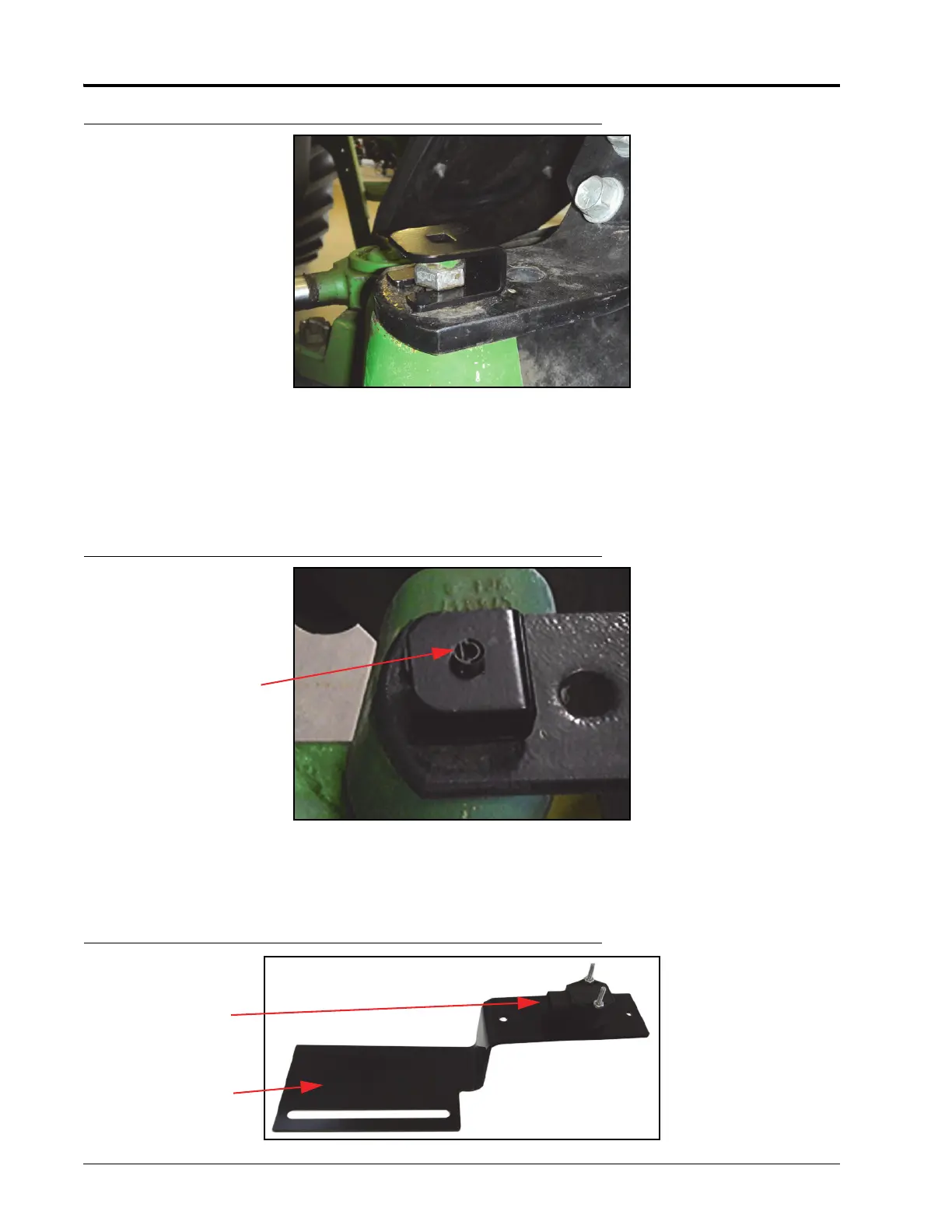

FIGURE 14. Sensor Centering Bracket Installed
4. Slide the sensor centering bracket tight against the kingpin bolt as shown in Figure 14 above.
Note: The bracket should be positioned so that the slot is in line with the front axle.
5. Fully tighten the kingpin bolt, ensuring the bracket stays aligned with the axle and tight against the kingpin
bolt.
FIGURE 15. WAS Coupler Installed
6. Install the WAS coupler (P/N 307-0159-419) in the rectangular cutout of the sensor centering bracket.
Note: The flat side of the ‘D’ profile should be closest to the machine’s engine.
FIGURE 16. Rotary Sensor Installed on Sensor Bracket
Sensor
Connector
Bracket
Base
To Next Page
