Raven SmarTrax Installation Manual

2
Manual No. 016-5034-004 5
Introduction
Bracket - Universal Mounting 107-0171-578 1
Bracket - Hydraulic Valve Mounting 107-0171-907 1
Bracket - Node Mounting 104-0171-946 1
Bracket - MFWD Dual Cylinder WAS Frame
Mounting
107-0172-028 1
Bracket - MFWD WAS Rod Mounting 107-0172-030 1
Bracket - MFWD Single Cylinder WAS
Frame Mounting
107-0172-041 1
Assembly - 250 mm Non-Contact Linear
Wheel Angle
063-0181-017 1
Cable - John Deere 7000 Series Valve
Harness
115-4001-093 1
Transducer - 0-3000 PSI Pressure 422-0000-086 1
Mount - M10 Ball Linear Sensor 103-0001-029 1
Mount - M10 Stud Linear Sensor 103-0001-030 1

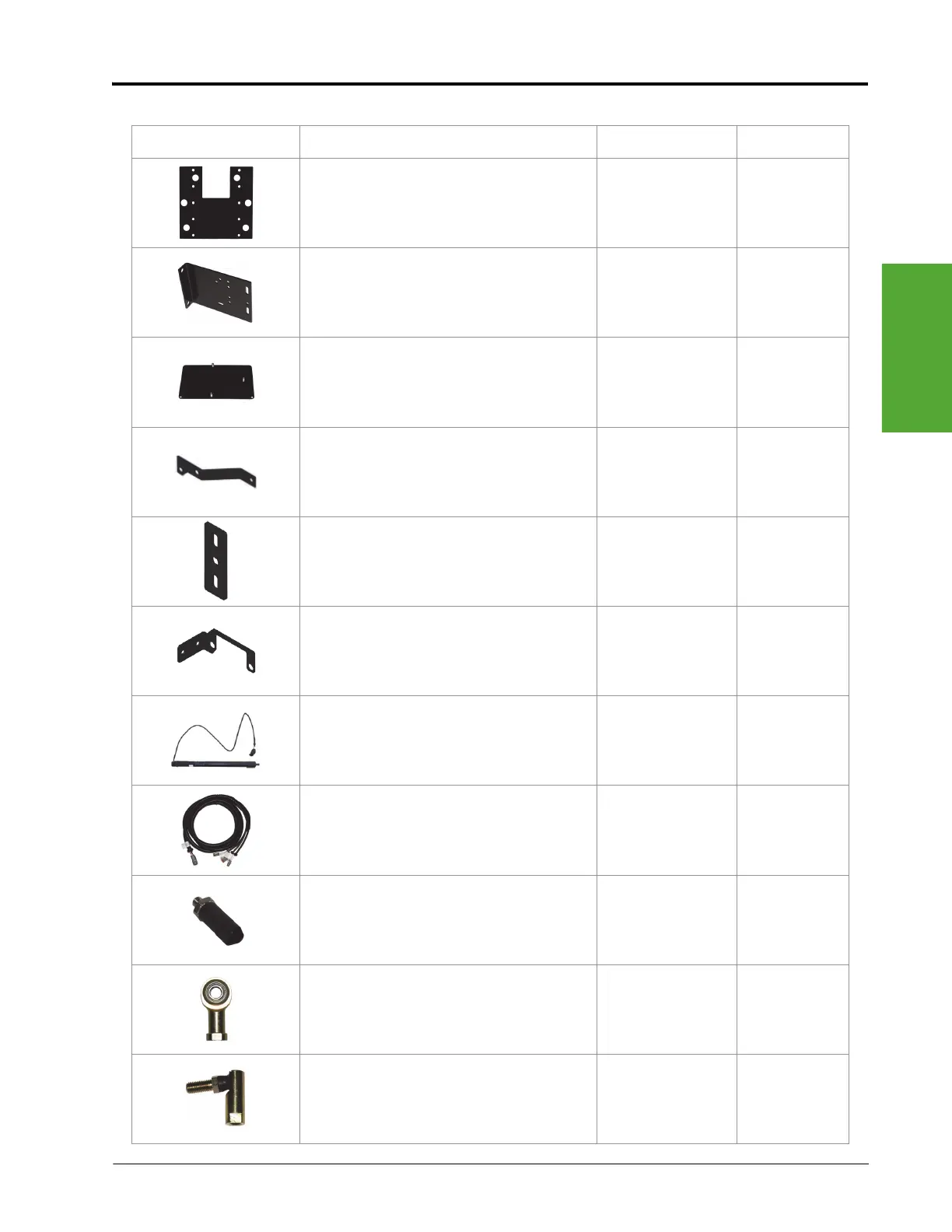

TABLE 1. John Deere 7X00/7X10 MFWD SmarTrax Installation Kit (P/N 117-5034-004)
Picture Item Description Part Number Qty.
