6 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual
Spacer - 3/8” ID x 3/4” OD x 3/4” Long 107-0172-037 2
Clamp - 1-1/2” Muffler 435-3003-030 1
Clamp - 1-3/4” Muffler 435-3003-052 1
Bolt - 5/16”-18 UNC x 7/8” Hex 311-0052-104 4
Bolt - 3/8”-16 UNC x 1” Hex 311-0054-105 2
Bolt - 5/8”-11 UNC x 1-1/2” Hex 311-0060-087 2
Bolt - M10 x 1.5 x 60 mm Metric Hex 311-0070-025 1
Bolt - M10 x 1.5” x 70 mm Metric Hex 311-0070-033 1
Nut - 5/16”-18 Nylon Insert Lock 312-4000-059 6
Nut - 3/8”-16 Nylon Insert Lock 312-4000-061 3
Nut - 5/8”-11 Nylon Insert Lock 312-4000-069 2

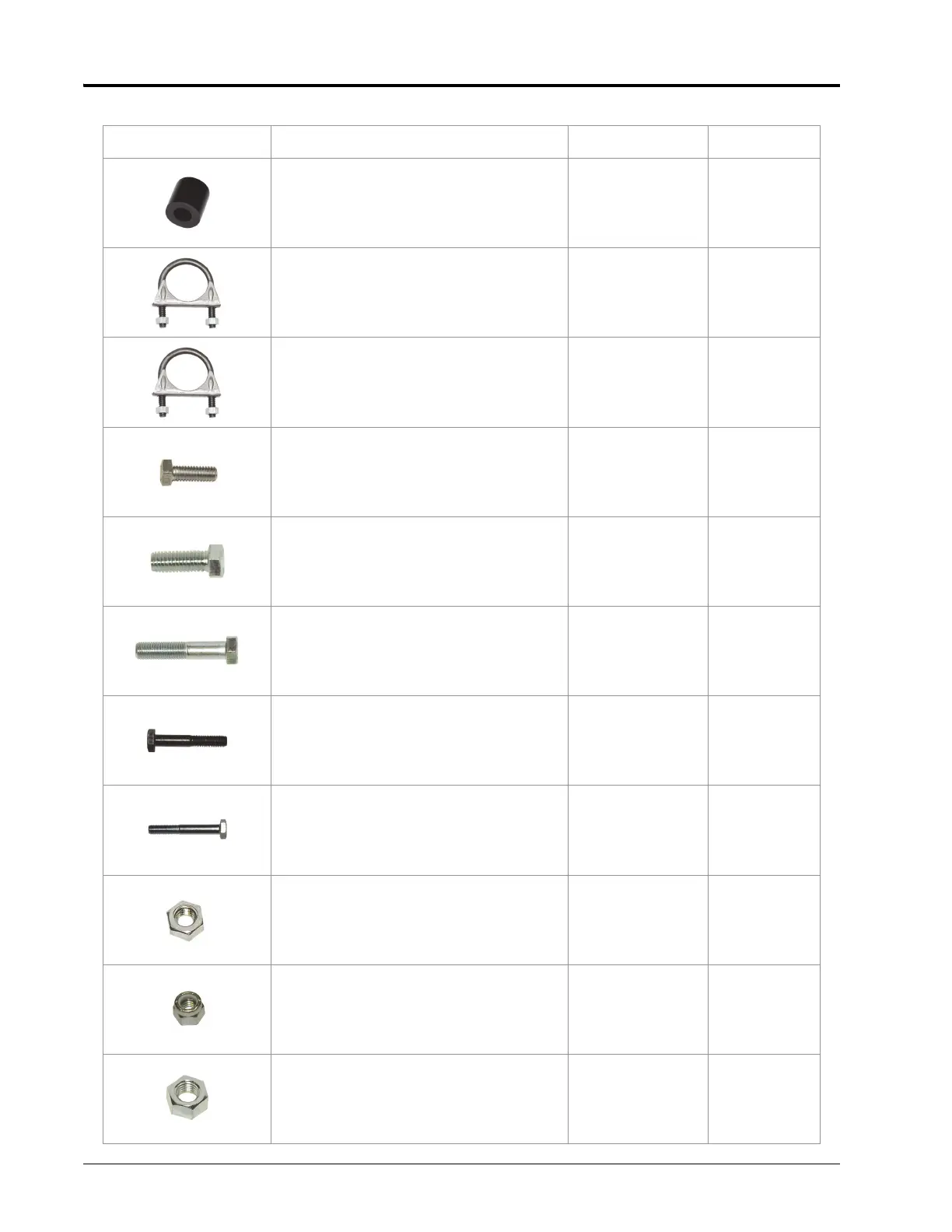

TABLE 1. John Deere 7X00/7X10 MFWD SmarTrax Installation Kit (P/N 117-5034-004)
Picture Item Description Part Number Qty.
