2
Manual No. 016-5034-004 7
Introduction

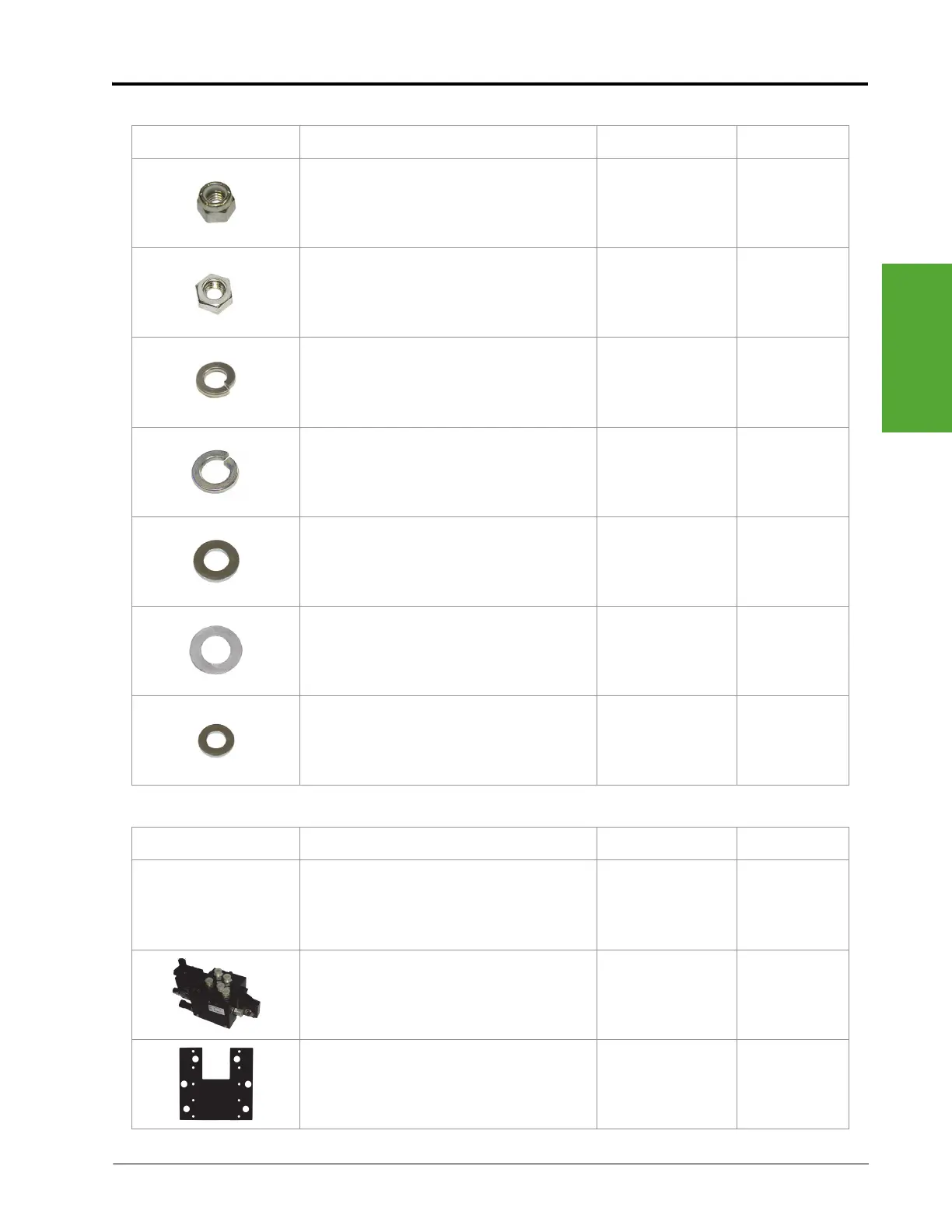

Nut - M10 x 1.5 Nylon Insert Lock 312-4000-208 2
Nut - M10 x 1.5 x 5 mm Thick Jam 312-1002-035 2
Washer - 5/16” Split Lock 313-1000-019 4
Washer - 3/8” Split Lock 313-1000-022 2
Washer - 0.406” ID x 0.812” OD x 0.065”
Thick
313-2300-014 8
Washer - 5/8” Flat 313-2300-132 2
Washer - 0.325” ID x 0.505” OD x 0.040
Thick
313-2300-005 6
TABLE 2. John Deere 7X00/7X10 2WD SmarTrax Installation Kit (P/N 117-5034-008)
Picture Item Description Part Number Qty.
Not Pictured
Manual - John Deere 7X00 and 7X10 Series
SmarTrax Installation Manual
016-5034-004 1
Valve - SmarTrax Hydraulic 334-0003-088 1
Bracket - Universal Mounting 107-0171-578 1
TABLE 1. John Deere 7X00/7X10 MFWD SmarTrax Installation Kit (P/N 117-5034-004)
Picture Item Description Part Number Qty.
To Next Page
