Chapter 2
8 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual
Bracket - Hydraulic Valve Mounting 107-0171-907 1
Bracket - Node Mounting 104-0171-946 1
Bracket - 2WD Sensor Mounting 107-0171-982 1
Bracket - 2WD Sensor Cover 107-0171-983 1
Bracket - 5/8” Bolt 2WD Sensor Centering 107-0171-984 1
Bracket - M20 Bolt 2WD Sensor Centering 107-0172-016 1
Bracket - 2WD Axle Mounting 107-0172-044 1
Sensory - Rotary 416-0001-050 1
Cable - John Deere 7000 Series Valve
Harness
115-4001-093 1
Transducer - 0-3000 PSI Pressure 422-0000-086 1
Coupler - WAS 307-0159-419 1

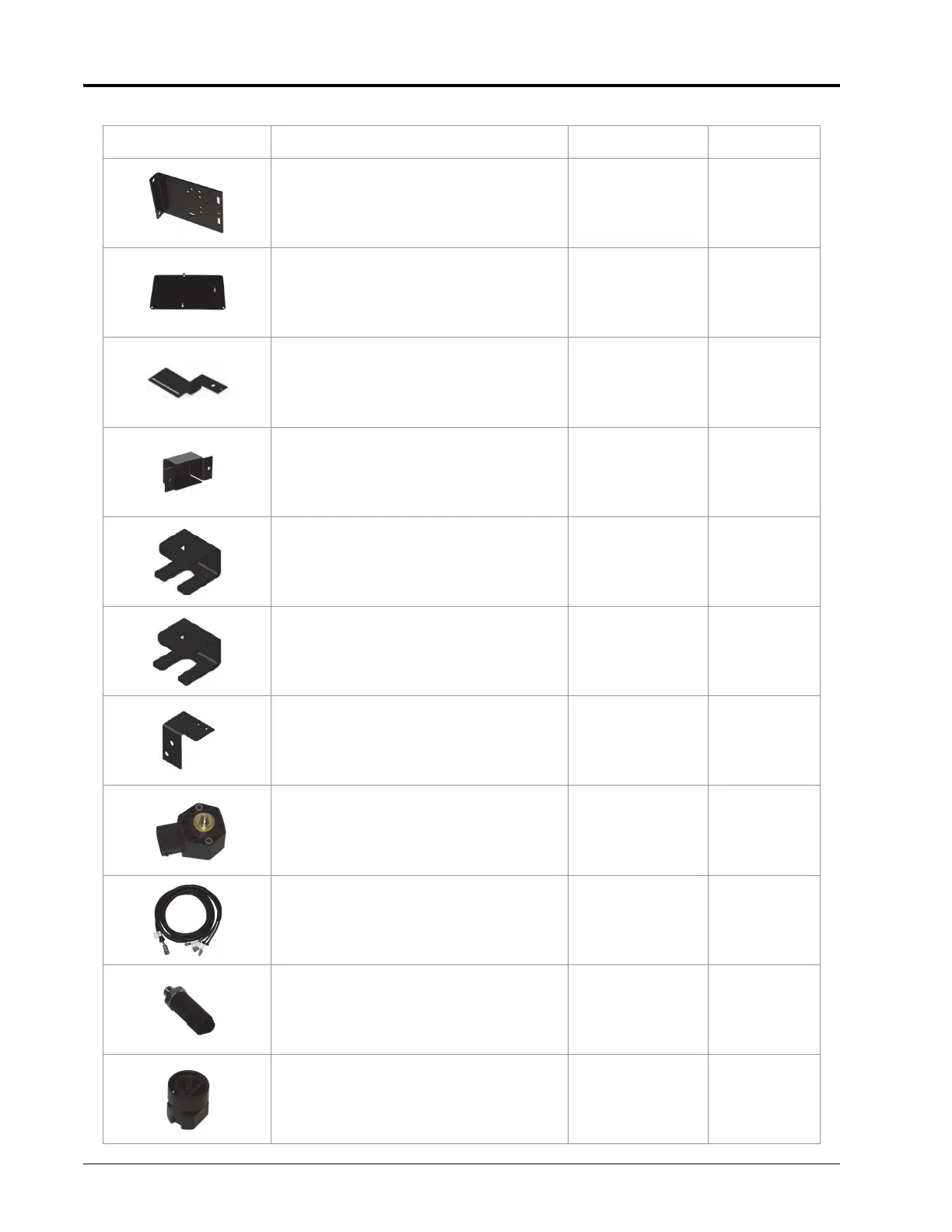

TABLE 2. John Deere 7X00/7X10 2WD SmarTrax Installation Kit (P/N 117-5034-008)
Picture Item Description Part Number Qty.
