Introduction
Screw - #8-32 UNC x 1-3/4” 311-0001-027 2
Bolt - 5/16”-18 UNC x 7/8” Hex 311-0052-104 4
Bolt - 3/8”-16 UNC x 1” Hex 311-0054-105 2
Bolt - 5/8”-11 UNC x 1-1/2” Hex 311-0060-087 2
Bolt - M10 x 1.5 x 25 mm Metric Hex 311-0070-008 2
Bolt - M20 x 2.5” x 90 mm Metric Hex 311-0070-034 2
Nut - #8-32 Nylon Insert Lock 312-4000-053 2
Nut - 5/16”-18 Nylon Insert Lock 312-4000-059 2
Nut - 3/8”-16 Nylon Insert Lock 312-4000-061 3
Nut - 5/8”-11 Nylon Insert Lock 312-4000-069 2
Nut - M10 x 1.5 Nylon Insert Lock 312-4000-208 2

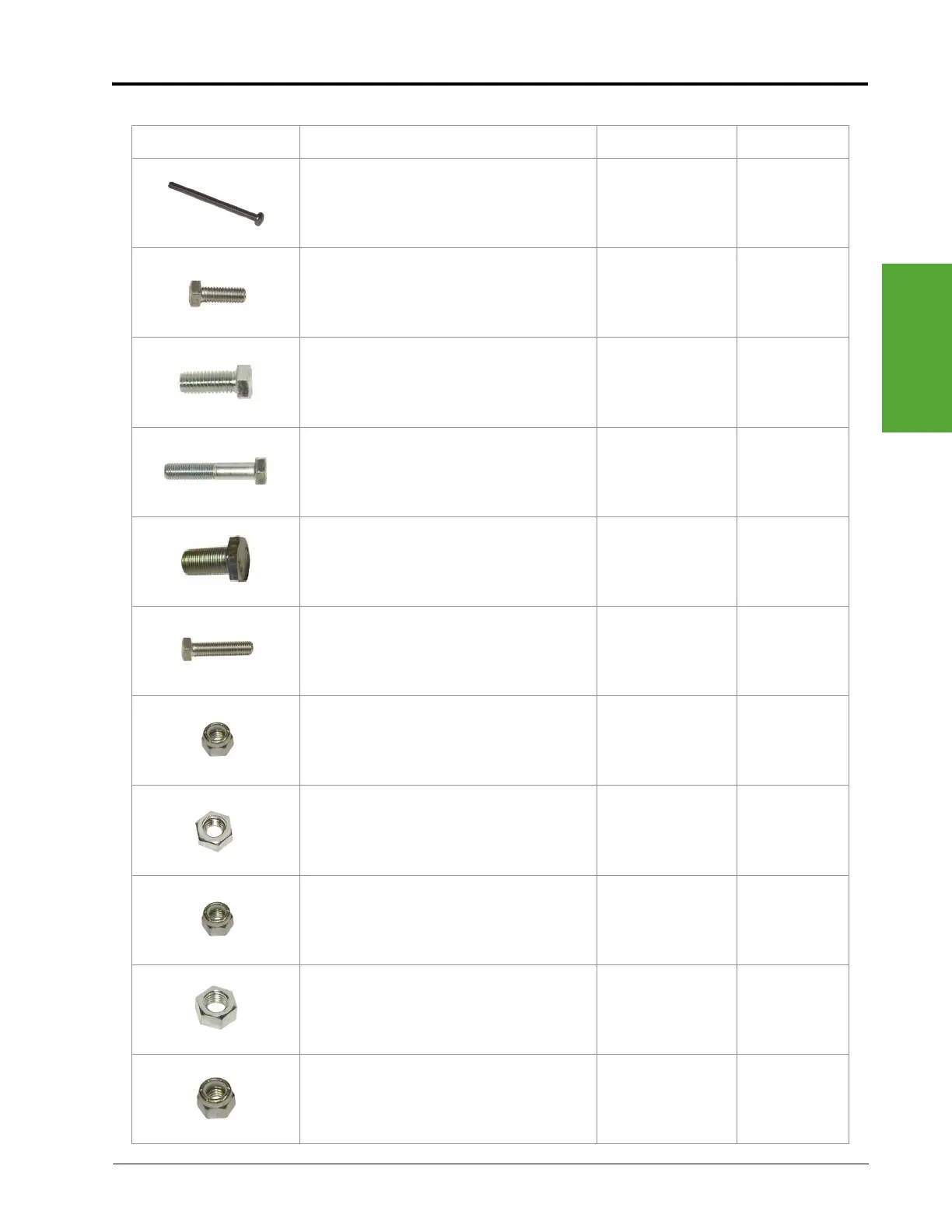

TABLE 2. John Deere 7X00/7X10 2WD SmarTrax Installation Kit (P/N 117-5034-008)
Picture Item Description Part Number Qty.
