Chapter 2
10 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual

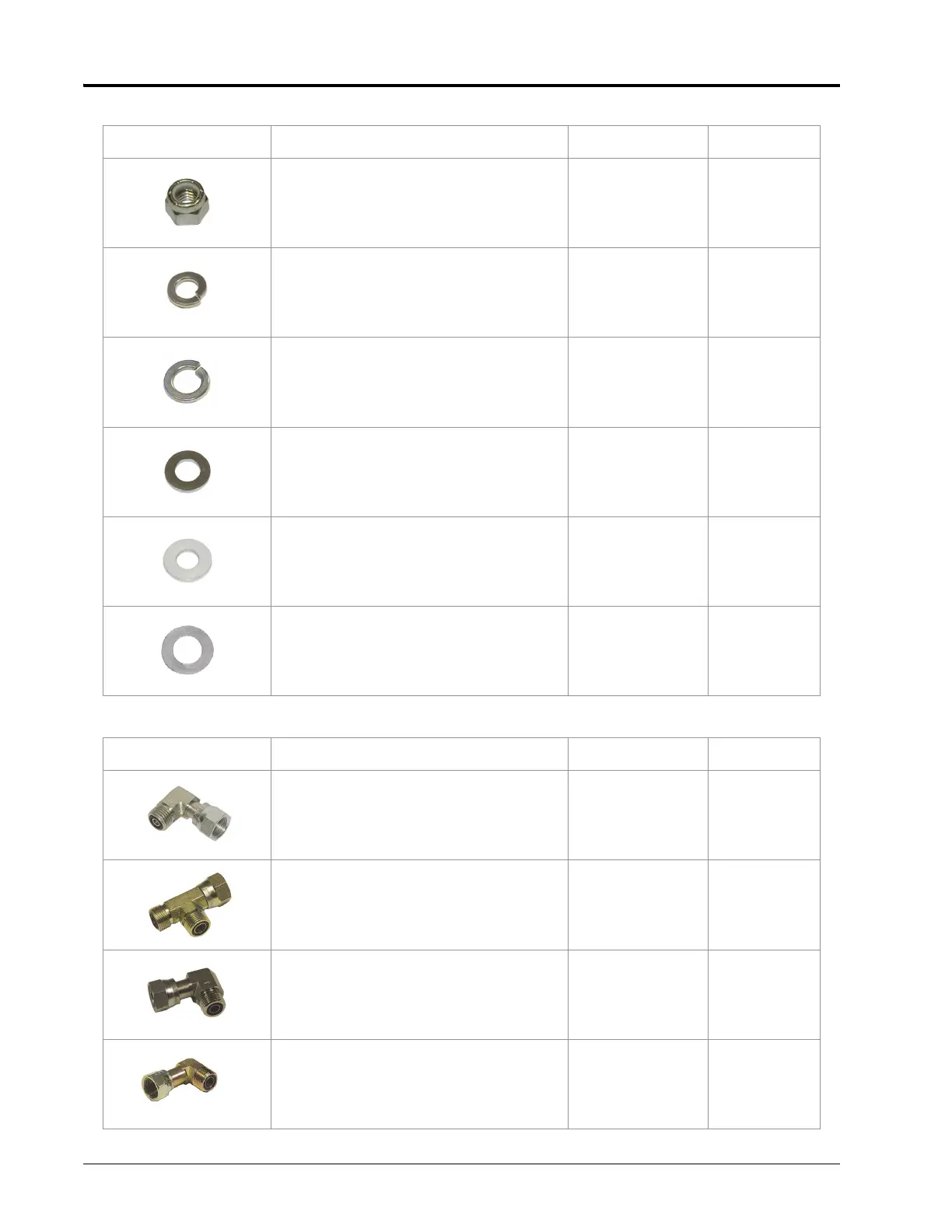

Nut - M20 x 2.5 Lock 312-4000-212 2
Washer - 5/16” Split Lock 313-1000-019 4
Washer - 3/8” Split Lock 313-1000-022 2
Washer - 0.406” ID x 0.812” OD x 0.065”
Thick
313-2300-014 6
Washer - 0.812” ID x 1.469” OD x 0.134
Thick Flat
313-2300-023 5
Washer - 5/8” Flat 313-2300-132 2
TABLE 3. Hydraulic Installation Kit (P/N 117-0199-036)
Picture Item Description Part Number Qty.
Fitting - -4 ORFS M/F 90° Swivel Elbow 333-0012-023 1
Fitting - -8 ORFS M/M/F Swivel Run Tee
Adapter
333-0012-028 3
Fitting - -6 ORFS M/F 90° Swivel Elbow 333-0012-065 1
Fitting - -8 ORFS M/F 90° Swivel Elbow 333-0012-067 2
TABLE 2. John Deere 7X00/7X10 2WD SmarTrax Installation Kit (P/N 117-5034-008)
Picture Item Description Part Number Qty.
