D3968-5

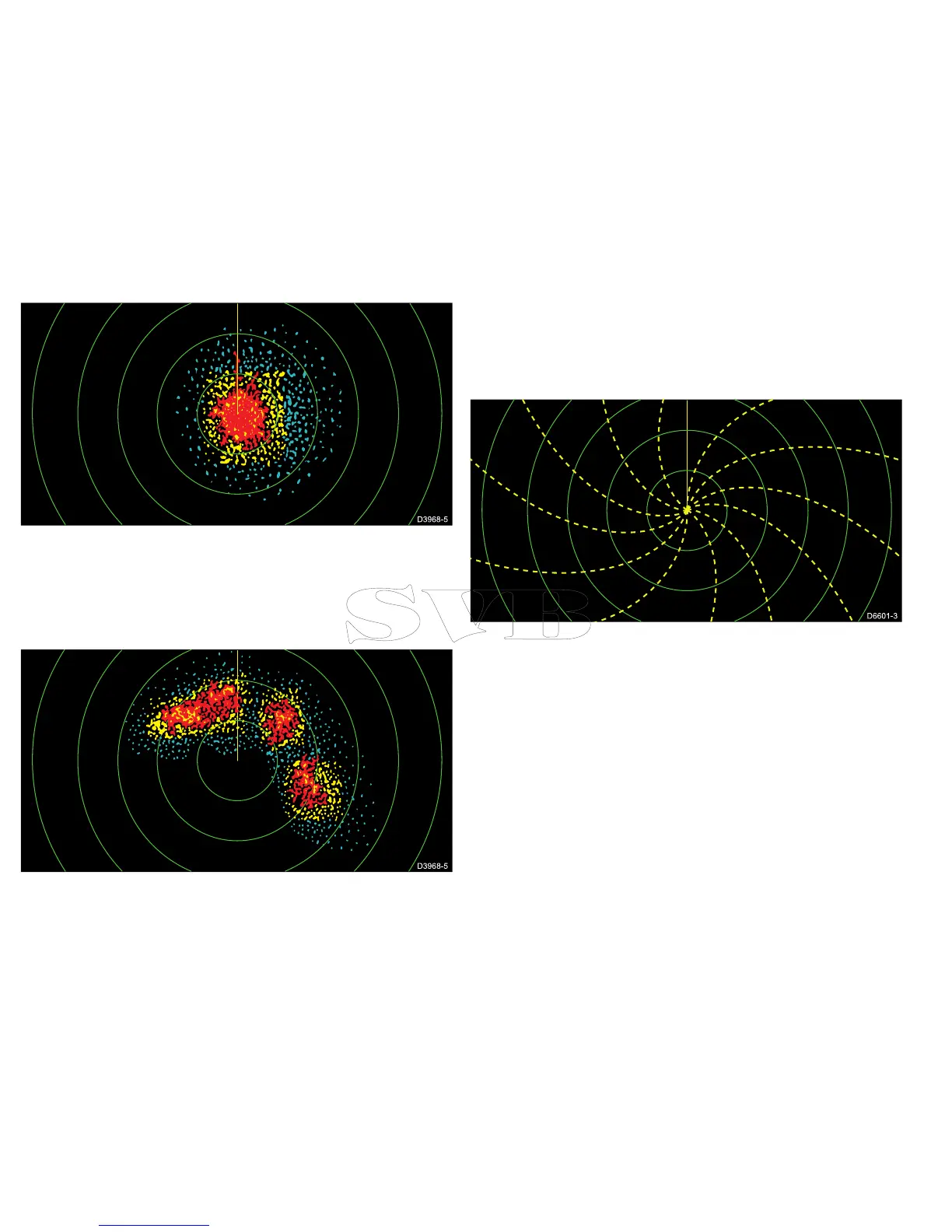

RainorSnowClutter

Theradarcanseeechoesfromrainorsnow.Returnsfromstorm

areasandrainsquallsconsistofcountlesssmallechoesthat

continuouslychangesize,intensityandposition.Thesereturns

sometimesappearaslargehazyareas,dependingontheintensity

oftherainfallorsnowinthestormcell.

D3968-5

Interference

Whentwoormoreradar-equippedvesselsareoperatingwithin

rangeofeachothermutualradarinterferencecanoccur.This

usuallyappearsasaspiralofsmalldotsfromthedisplaycentreThis

typeofinterferenceismostnoticeableatlongranges.

D6601-3

140e7/e7D—Userreference
