tatusarea
Thestatusareaislocatedatthetoprightofthehomescreen.Thisarea
displaysthecurrenttimeandidentifiesthestatusofthedisplay’ssonarping.
Thestatusareapop-overmenuprovidesaccesstothetimerandtimeand
datesettings.

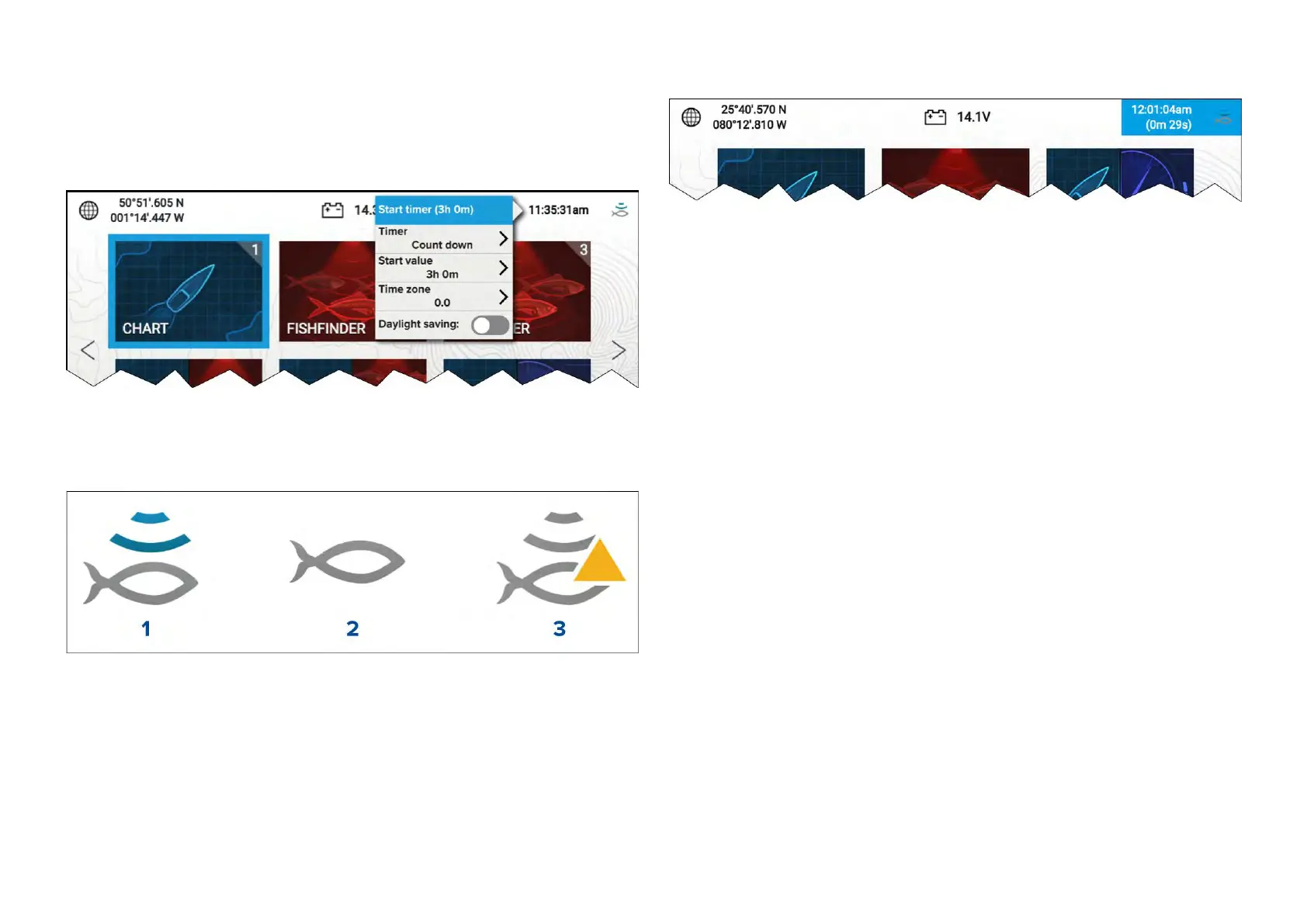

S tatusareaicons
TheiconsdisplayedintheStatusareasignifythecurrentstatusofcertain
connecteddevices.
1.Sonarpinging.
2.Sonarpingdisabled.
3.Sonarerror
.
5.6Timer
Atimerisprovidedinthehomescreenstatusarea.Thetimercanbeusedas
acountdowntimerorasacount-up(stopwatch).
Whilstthecountdownorcount-uptimerisinuseitisdisplayedinthestatus
area,belowthecurrenttime
.
Usingthecountdowntimer
Fromthehomescreen:
1.Selectthestatusarea,locatedinthetoprightcornerofthehomescreen.
2.Thestatusareapop-overmenuisdisplayed.
3.Ensurethat[Countdown]isselectedinthe[Timer]option.
4.Select[Startvalue]andadjusttothedesiredvalue.
Thecountdowntimercanbesettoamaximumof9hoursand59
minutes.
5.Pressthe[Back]buttontoreturntothepop-overmenu.
6.Select[Starttimer].
Thecountdowntimercanbestoppedorresetatanytimefromthepop-over
menu.
Usingthecountuptimer
Fromthehomescreen:
1.Selectthestatusarea,locatedinthetoprightcornerofthehomescreen.
2.Thestatusareapop-overmenuisdisplayed.
3.Ensurethat[Countup]isselectedinthe[Timer]option.
4.Select[Starttimer].
Thecountuptimercancountupwardstoamaximumof23hoursand
59minutes.
Thecountuptimercanbestoppedorresetatanytimefromthepop-over
menu.
Homescreen45
