Chapter 6: Installation 97
6.3 Location
This section provides information that affects the possible locations of
the display unit, and its position relative to the power supply.
Selecting the Display Unit Site
The display unit can be mounted using the trunnion (yoke) bracket
already fitted, or console mounted using the optional flush-mounting kit.

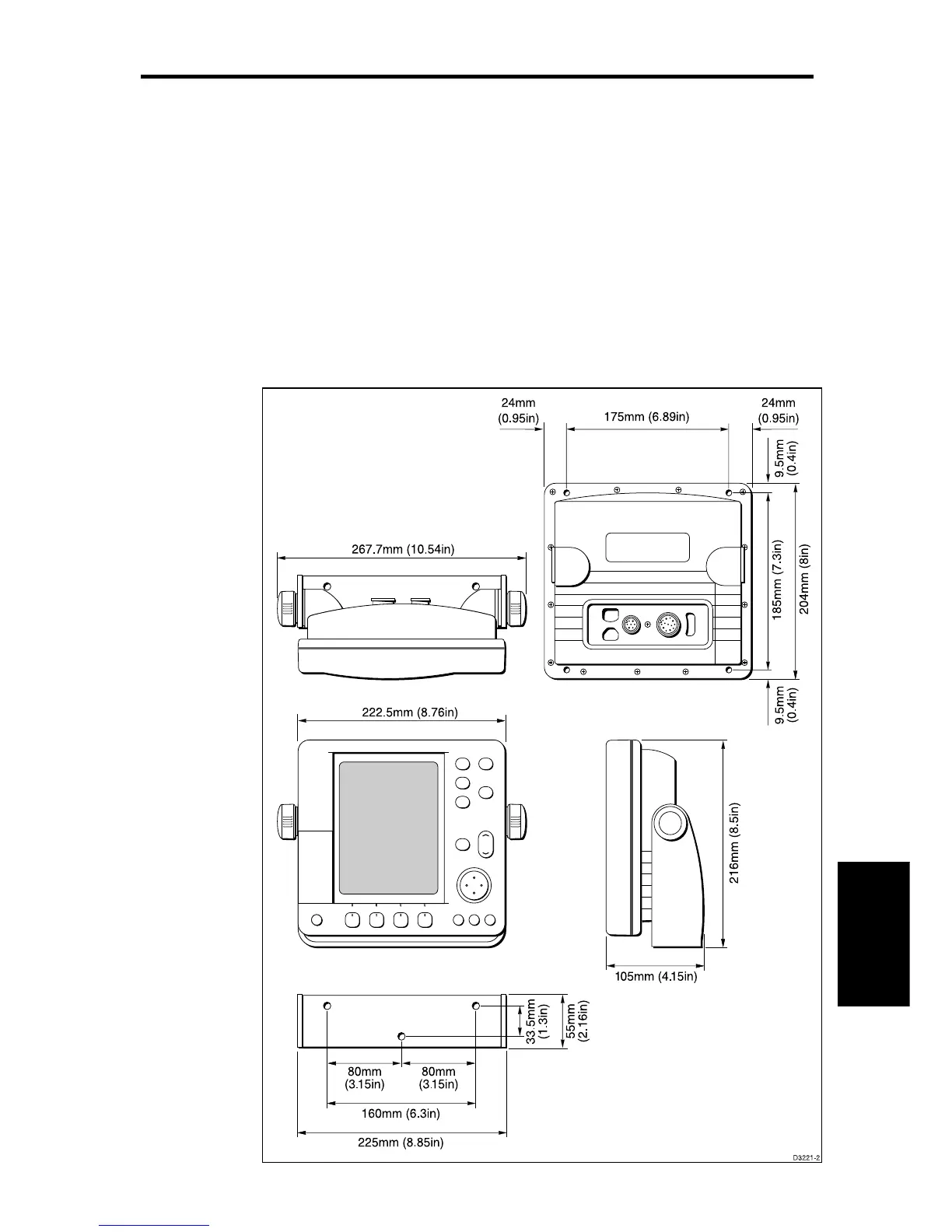

The dimensions of the display unit, including the bracket, are shown in
the following diagram.
DISPLAY
GAIN
VRM/EBL
MULTI
MARKS
ALARMS
RANGE
ENTER CLEAR MENU
POWER
