BS06K SERIES 6kW All-In-One Smart Laser Cutting Head-User Manual

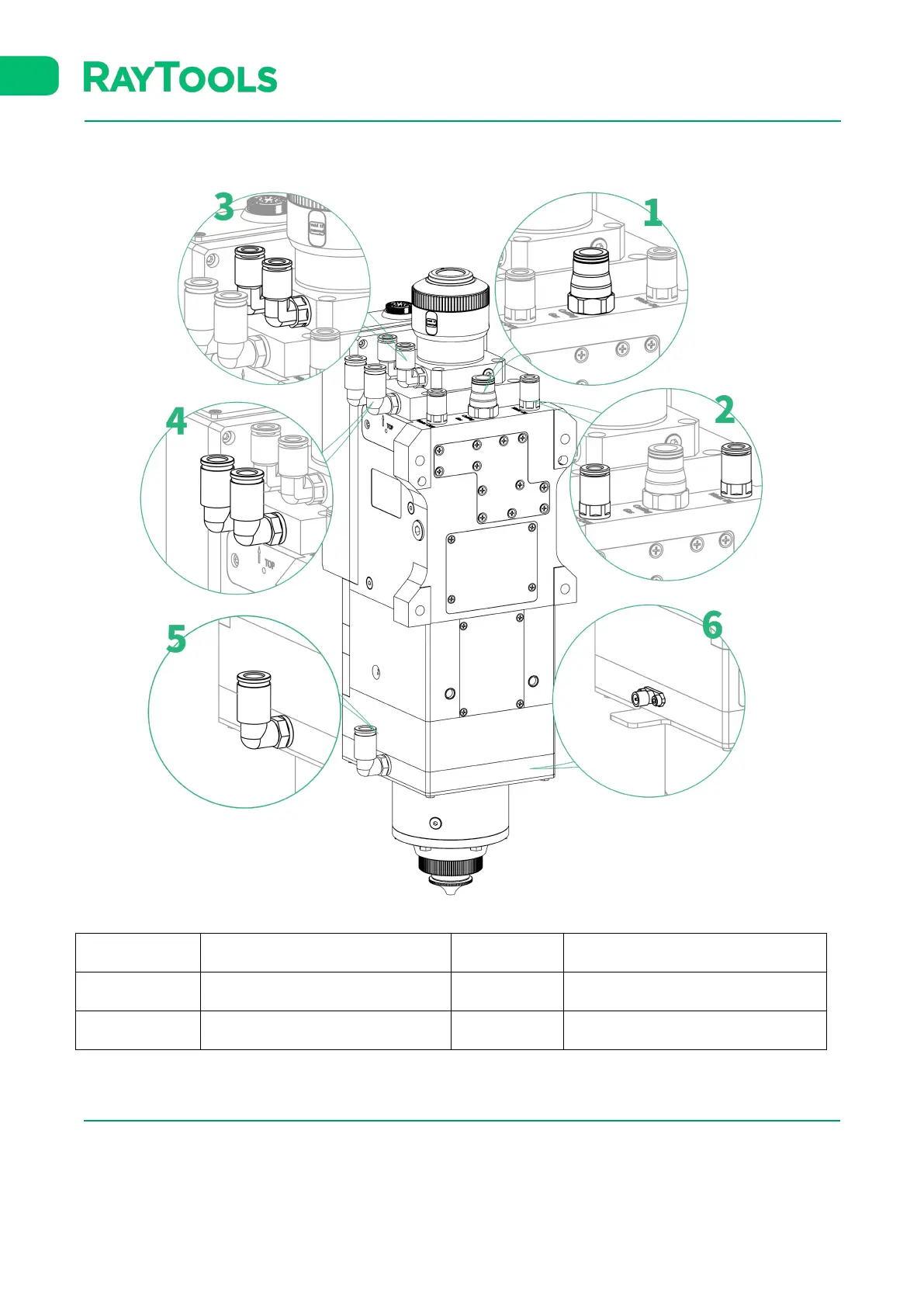

1.5 Physical Interface
No. 1
Cutting gas (Φ10)
No. 4
Cooling water (Φ6)
No. 2
Cooling water (Φ6)
No. 5
Nozzle cooling gas (Φ8)
No. 3
Cooling water (Φ6)
No. 6
Preamplifier (SMA)
