4.2 Set Focus Correction Position

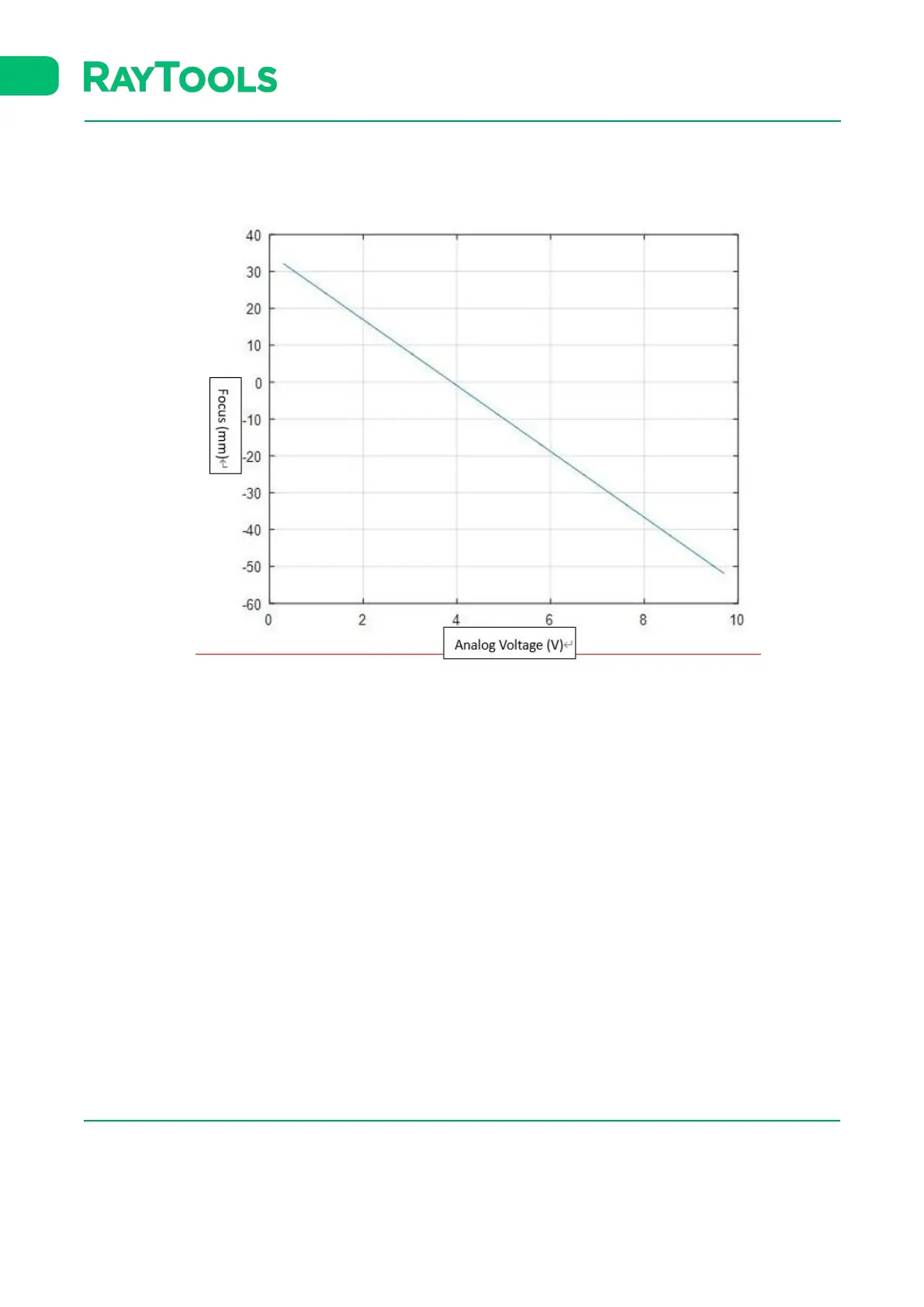

Focus & Voltage Curve
Note:
1. CL100mm/FL200mm: 0.3V corresponds to +32mm. 9.7V corresponds to -52mm.
2. CL100mm/FL150mm: 0.3V corresponds to +16mm. 9.7V corresponds to -26mm.
3. Mechanical and optical manufacturing tolerance, matching tolerance between imaging proportion of optical
component and optical fiber will have other effects on the actual focus position.
4. Adjust the focus offset according to the actual situation.
