BS06K SERIES 6kW All-In-One Smart Laser Cutting Head-User Manual
1 Product Summary

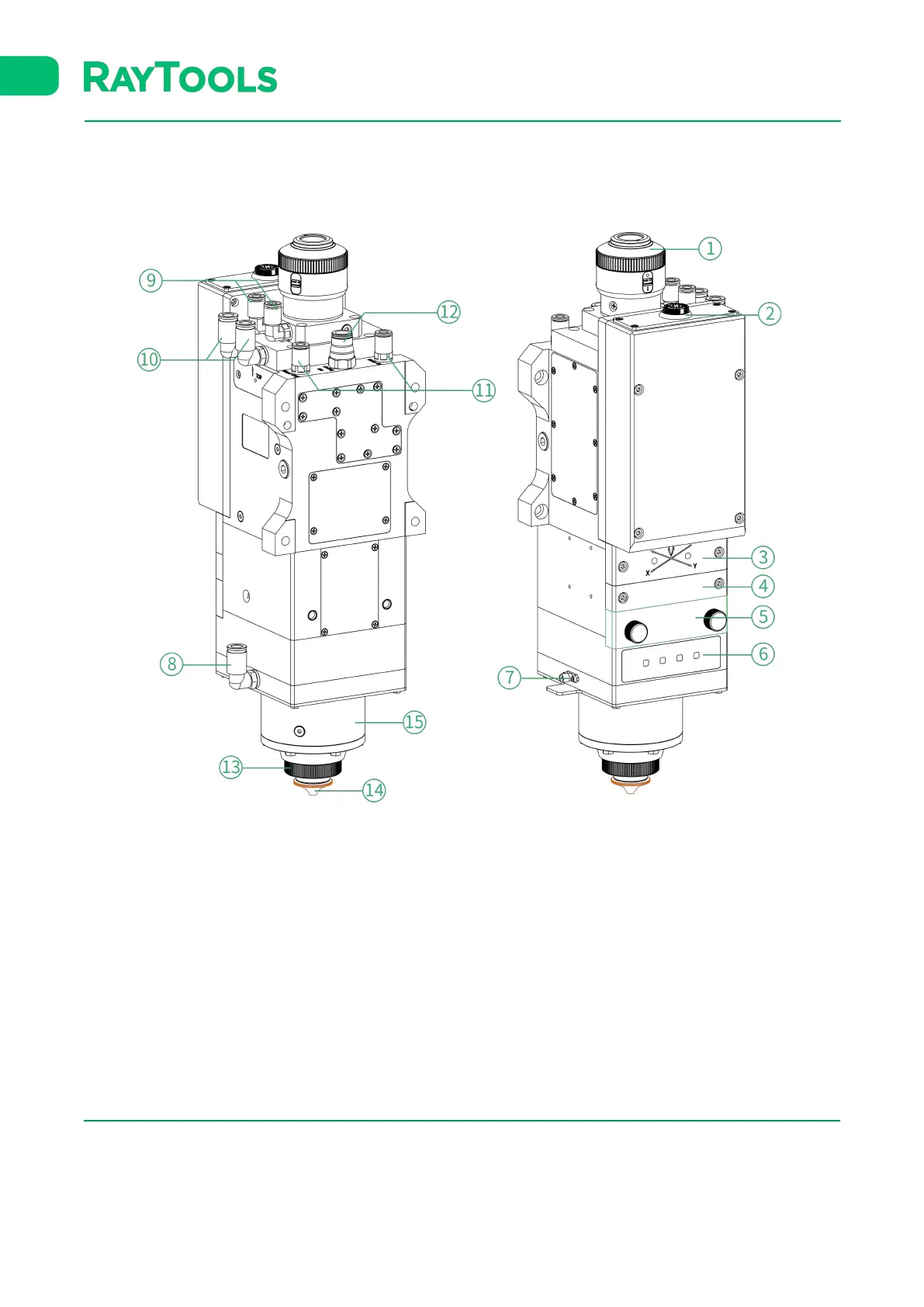

1.1 Structure (with QBH Interface)
1 Fiber Interface
2 Control Interface
3 Focus Module (XY Alignment)
4 Middle Cover Glass Assy
5 Bottom Cover Glass Assy
6 LED
7 Preamplifier Interface
8 Nozzle Cooling Gas Interface (Φ8)
9 Water Cooling Interface (Φ6)
10 & 11 Water Cooling Interface (Φ6)
12 Cutting Gas Interface (Φ10)
13 Retainer Ring
14 Ceramic Body & Nozzle
15 TRA (Nozzle Assy)
