BS06K SERIES 6kW All-In-One Smart Laser Cutting Head-User Manual
3 System Installation and Commissioning

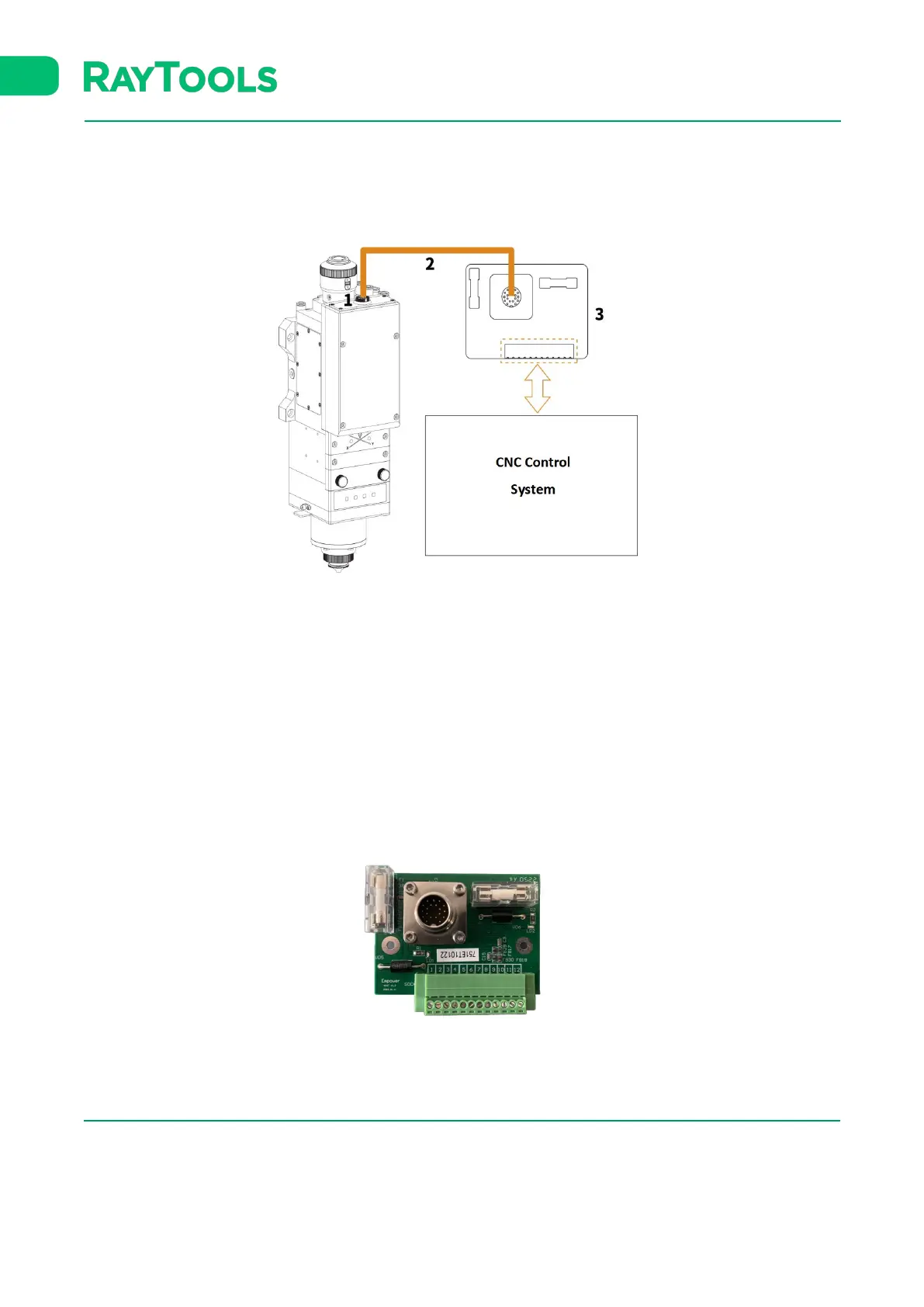

3.1 Auto Focus by 0-10V Analog
▪ Connect ①the interface of laser head with ③I/O-CAN board by ②the control cable
▪ Connect all necessary I/O interface of laser head with CNC
▪ Connect 24V power supply to the I/O-CAN board
▪ Complete configuration and commissioning according to the system instruction
Note: FSCUT motion control system usually gets a 0.3V cutoff voltage and the corresponding voltage range comes to be
0.3V-9.7V.
I/O-CAN Board
