BS06K SERIES 6kW All-In-One Smart Laser Cutting Head-User Manual

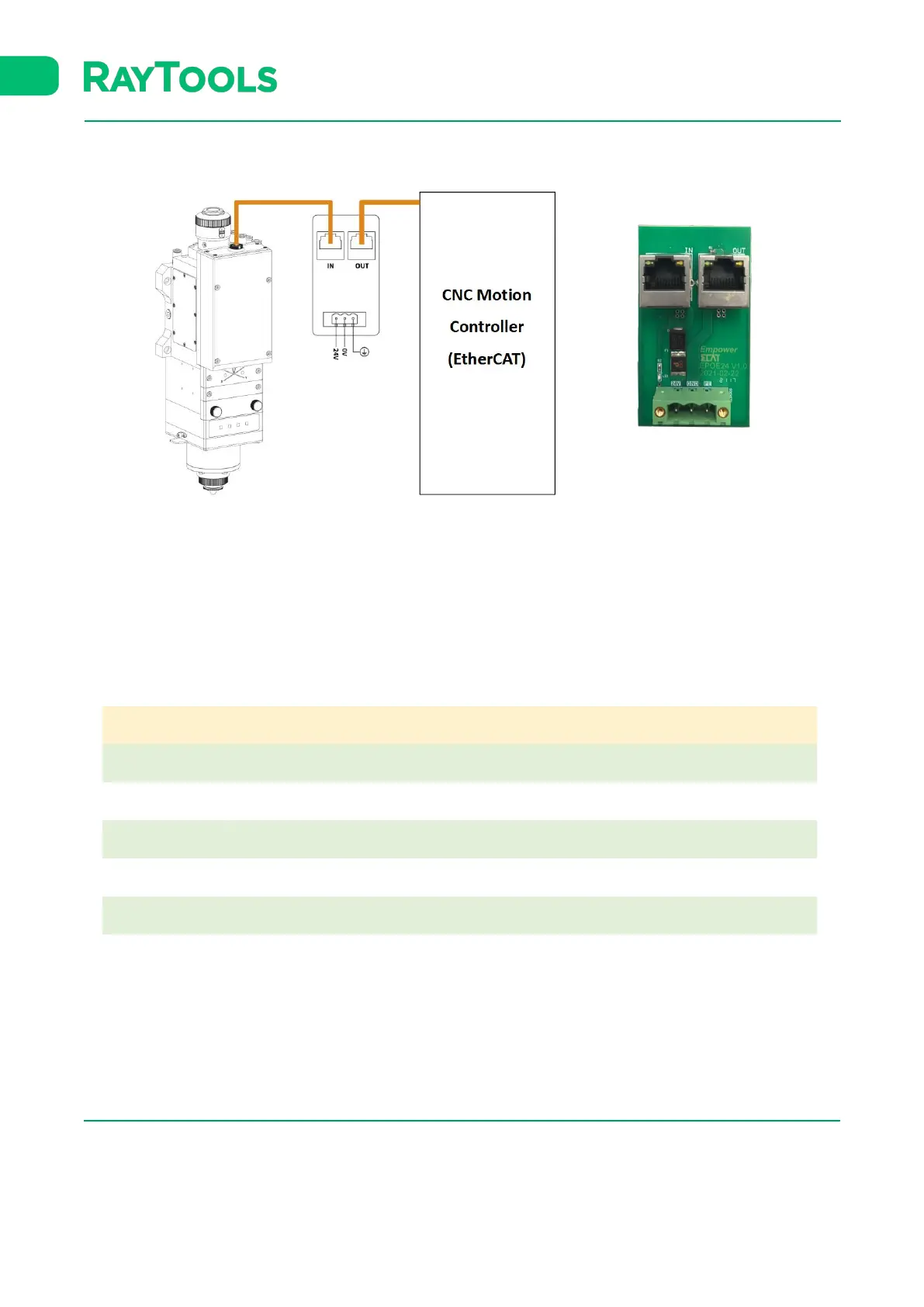

3.2 Auto Focus by EtherCAT
▪ Connect 24V power supply to the I/O board (EPOE24
▪ Connect by network cable as shown above
▪ Complete configuration and commissioning according to the system instruction
EPOE24 Definition
No.
Definition
Remark
IN
Input-Interface
Signal input
OUT
Output-Interface
Signal output
24V
Power supply 24V
24V to power supply
GND
Power supply 0V
0V to power supply
PE
Earthing
For earthing
EPOE24
