BS06K SERIES 6kW All-In-One Smart Laser Cutting Head-User Manual

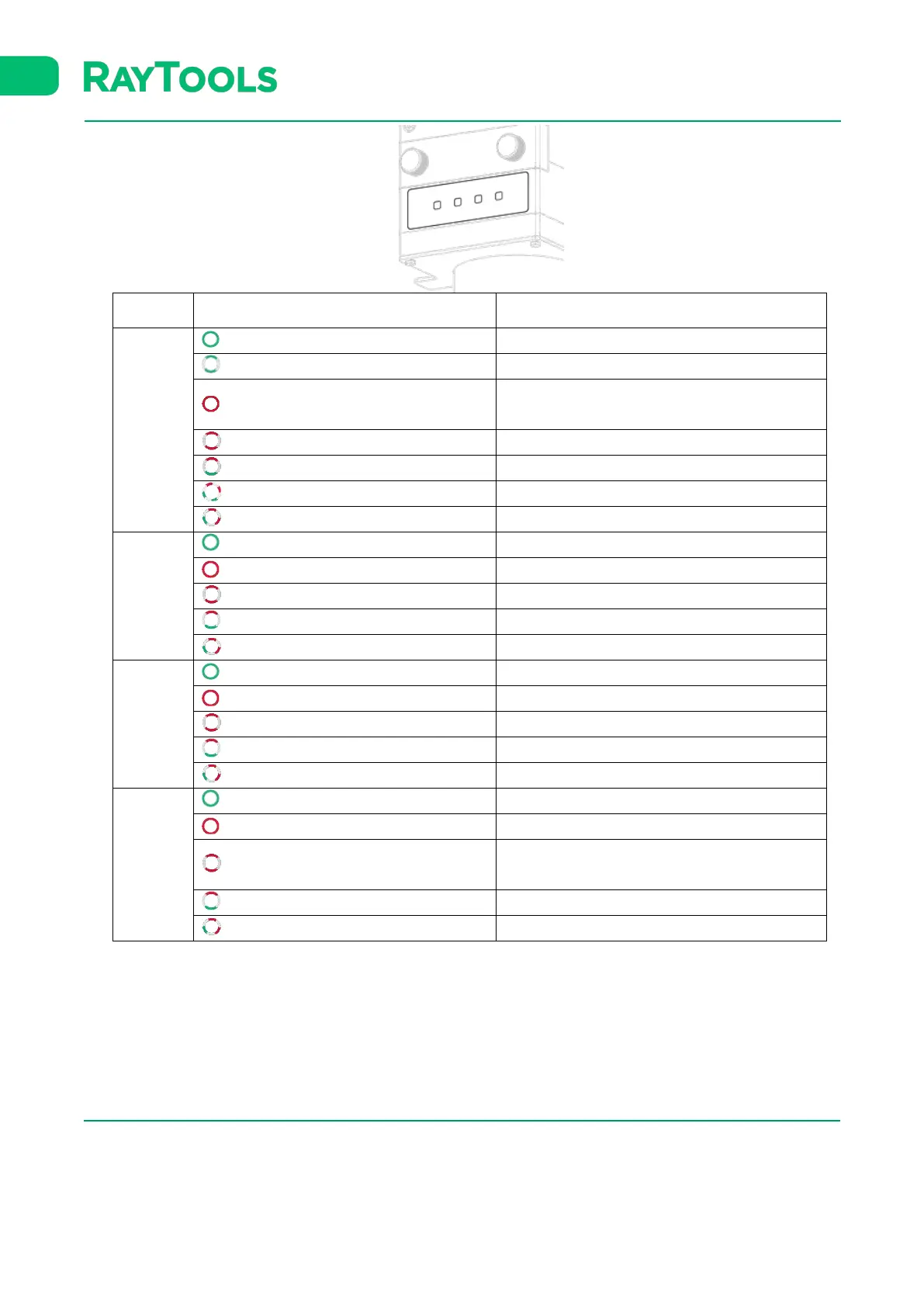

1.2.4 LED Indicator
LED Status Definition (from left to right):
LED No.
LED Status
Status Definition
LED 1
Green on
Running normally
Green blinks
Focus motor homing
Red on
Communication error (connection issue of master
card and WIFI card)
Red blinks
Motor fault
Red/Green blink once alternately
Limit sensor error of screw rod
Red/Green blink twice alternately
Focus homing failed
Red twice/Green once blink alternately
WIFI card fault
LED 2
Green on
Running normally
Red on
Overheating of top cover glass
Red blinks
Overheating of focus lens
Red/Green blink once alternately
Temperature sensor fault of top cover glass
Red twice/Green once blink alternately
Temperature sensor fault of focus lens
LED 3
Green on
Running normally
Red on
Overheating of bottom cover glass
Red blinks
Bottom cover glass not ready for operation
Red/Green blink once alternately
Temperature sensor fault of bottom cover glass
Red twice/Green once blink alternately
Gas pressure sensor fault
LED 4
Green on
Running normally
Red on
Overheating of cavity
Red blinks
Detected cavity pressure indicates gas leakage
from focus lens holder
Red/Green blink alternately
Temperature sensor fault of cavity
Red twice/Green once blink alternately
Pressure sensor fault of cavity
