RC GROUP TRIPACK Series - Hydraulic Connection to the Exhaust Heat Exchanger

Chapter 4 - INSTALLATION AND TESTING INFORMATION
RC GROUP S.p.A I_TRP_0909_GB
23
4.7 HYDRAULIC CONNECTION TO THE EXHAUST HEAT
EXCHANGER
The inlet and outlet connection must be carried out as specified during
the design stage.
The water inlet/outlet pipes are identified by the plates directly affixed to
the machine (see figure).
CONDENSATORE
CONDENSATORE
CONDENSER
CONDENSER
VERFLÜSSIGER
V
ERFLÜSSIGER
CONDENSEUR
CONDENSEUR
К
OH
Д
EHCATOP
К
OH
Д
EHCATOP
INGRESSO ACQUA
USCITA ACQUA
WATER INLET
WATER OUTLET
WASSER EINTRITT
WASSER AUSTRITT
ENTRÉE EAU
SORTIE EAU
B
Х
O
Д
BO
Д
Ы
B
ЫХ
O
Д
BO
Д
Ы

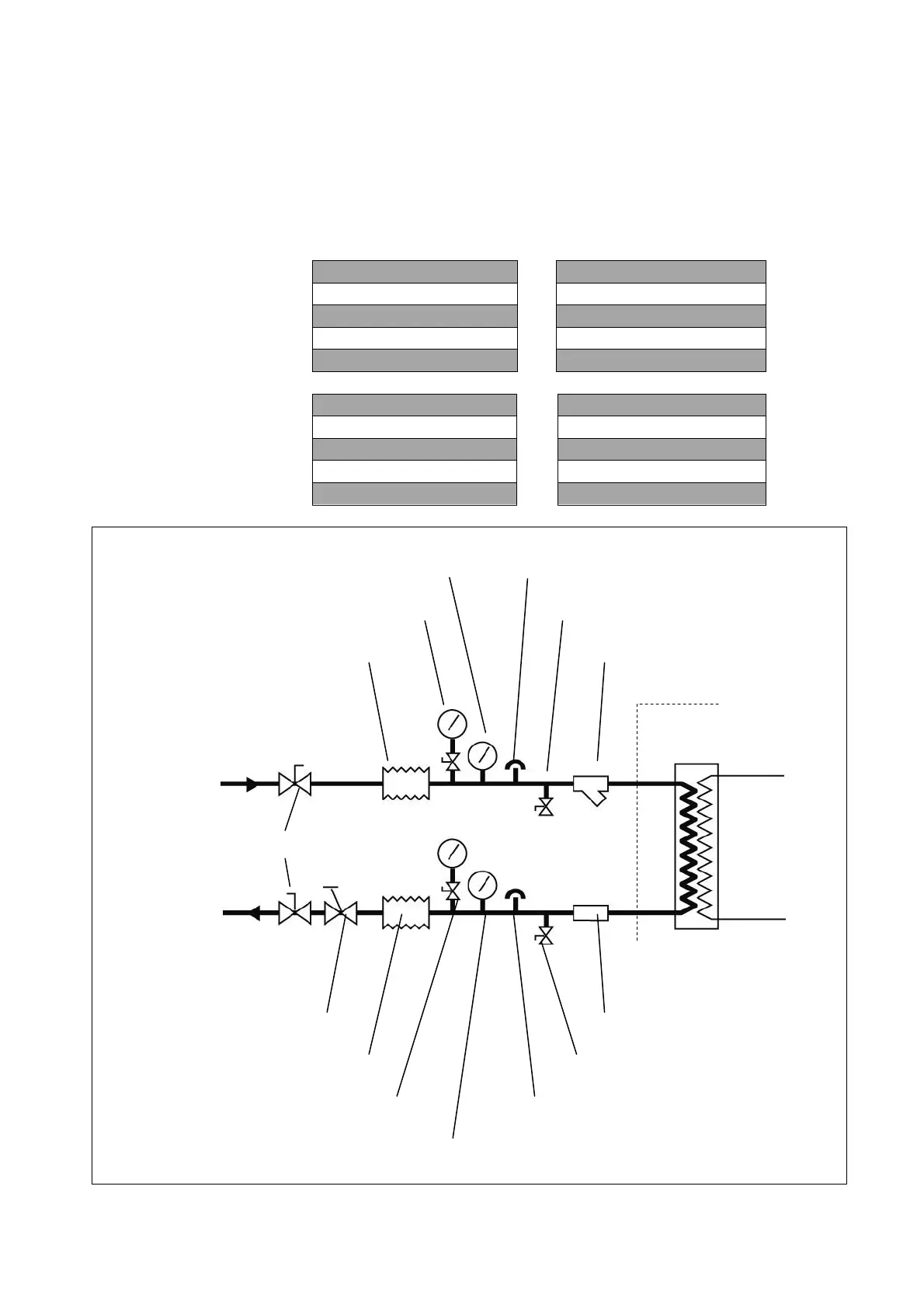

HYDRAULIC CONNECTION TO THE COND
ENSER
Anti-vibration
connection
Pressure gauge
Thermometer
Air vent
Pipe’s draining valve
Gauze filter
Exhaust heat
exchanger
Anti-
vibration connection
Pressure gauge
Thermometer
Air vent
Pipe’s draining valve
Water flow meter
Calibration valve
Shutoff valve
Supply limit
