RC GROUP TRIPACK Series User Manual

Chapter 4 - INSTALLATION AND TESTING INFORMATION
RC GROUP S.p.A I_TRP_0909_GB
25
4.8 HYDRAULIC CONNECTION TO THE DOMESTIC WATER
EXCHANGER
The inlet and outlet connection must be carried out as specified during
the design stage.
The water inlet/outlet pipes are identified by the plates directly affixed to
the machine (see figure).
SCAMBIATORE DI RECUPERO SCAMBIATORE DI RECUPERO
HEAT RECOVERY EXCHANGER HEAT RECOVERY EXCHANGER
VOLLE WRG VOLLE WRG
EXCHANGER DE RECUPERATION EXCHANGER DE RECUPERATION
TE
ПЛ
OO
Б
MEHH
ИК
C
PEГEHEPAЦИEЙ TEПЛA
TE
ПЛ
OO
Б
MEHH
ИК
C
PEГEHEPAЦИEЙ TEПЛA
INGRESSO ACQUA USCITA ACQUA
WATER INLET WATER OUTLET
WASSER EINTRITT WASSER AUSTRITT
ENTRÉE EAU SORTIE EAU
BХOД BOДЫ BЫХOД BOДЫ

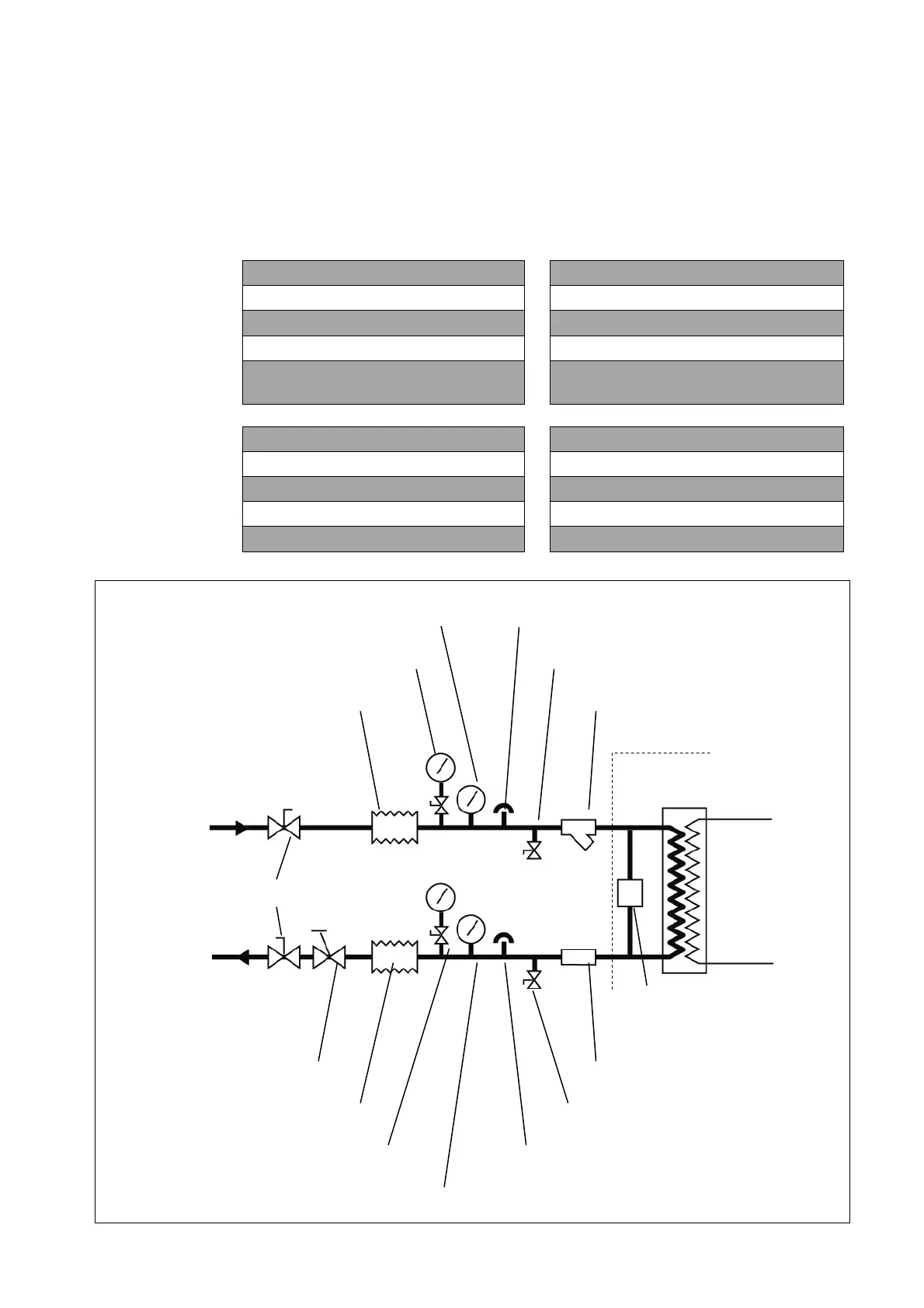

HYDRAULIC CONNECTION TO THE DOMESTIC WATER EXCHANGER
Anti-vibration connection
Pressure gauge
Thermometer
Air vent
Pipe’s draining valve
Gauze filter
Sanitary water
exchanger
Anti-vibration connection
Pressure gauge
Thermometer
Air vent
Pipe’s draining valve
Water flow meter
Differential pressure
switch for water flow
Calibration valve
Shutoff valve
Supply limit
