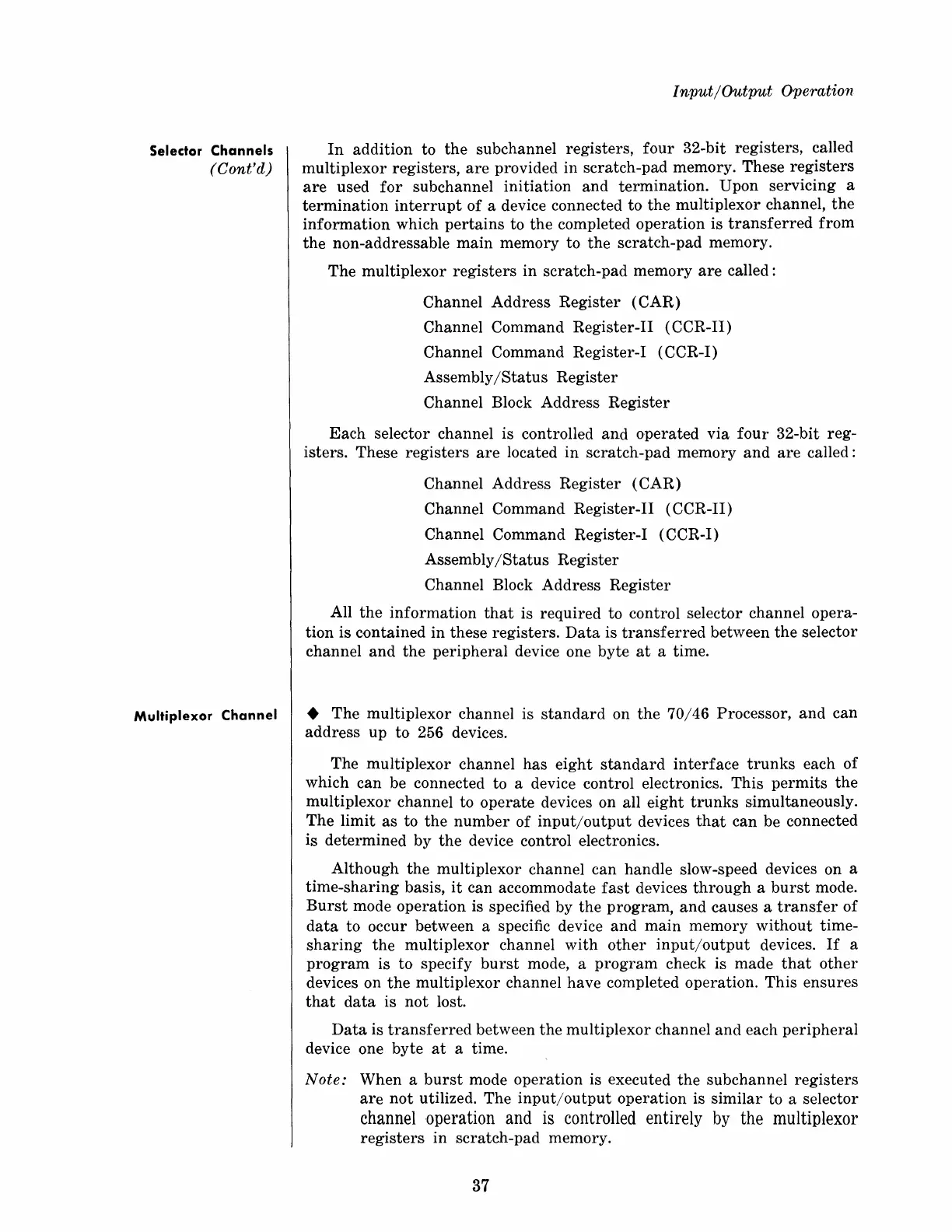

Selector Channels
(Cont'd)
Multiplexor
Channel
Input/Output Operation
In
addition to
the
subchannel registers,
four
32-bit registers, called
mUltiplexor registers,
are
provided in scratch-pad memory. These
registers
are
used
for
subchannel initiation
and
termination.
Upon servicing a
termination
interrupt
of
a device connected
to
the
multiplexor channel,
the
information
which
pertains
to
the
completed operation is
transferred
from
the
non-addressable
main
memory to
the
scratch-pad memory.
The multiplexor
registers
in
scratch-pad memory
are
called:
Channel Address
Register
(CAR)
Channel Command
Register-II
(CCR-II)
Channel Command Register-I (CCR-I)
Assembly/Status
Register
Channel Block Address
Register
Each
selector channel is controlled
and
operated
via
four
32-bit reg-
isters. These
registers
are
located
in
scratch-pad memory
and
are
called:
Channel Address
Register
( CAR)
Channel Command Register-II (CCR-II)
Channel Command Register-I (CCR-I)
Assembly/Status
Register
Channel Block Address
Register
All
the
information
that
is required to control selector channel opera-
tion is contained in these registers.
Data
is
transferred
between
the
selector
channel
and
the
peripheral
device one byte
at
a time .
•
The
multiplexor channel is
standard
on
the
70/46
Processor,
and
can
address
up
to
256 devices.
The multiplexor channel has
eight
standard
interface
trunks
each of
which can be connected to a device control electronics. This
permits
the
multiplexor channel to
operate
devices on all
eight
trunks
simultaneously.
The
limit
as to
the
number
of
input/output
devices
that
can be connected
is determined by
the
device control electronics.
Although
the
multiplexor channel can handle slow-speed devices on a
time-sharing
basis,
it
can accommodate
fast
devices
through
a
burst
mode.
Burst
mode
operation
is specified by
the
program,
and
causes a
transfer
of
data
to occur between a specific device and
main
memory
without
time-
sharing
the
mUltiplexor channel
with
other
input/output
devices.
If
a
program
is to specify
burst
mode, a
program
check is made
that
other
devices on
the
multiplexor channel have completed operation. This
ensures
that
data
is
not
lost.
Data
is
transferred
between
the
multiplexor channel
and
each
peripheral
device one byte
at
a time.
Note: When a
burst
mode operation is executed
the
subchannel
registers
are
not
utilized. The
input/output
operation is
similar
to a selector
channel
operation
and
is
controlled
entirely
by
the
multiplexor
registers
in scratch-pad memory.
37
