Recon BLOCKAGE+ - Figure 12: Securing ECU to Brackets

Installing ECUs Recon Blockage Plus™ Installation Manual
600840-000069, rev 1.0 Page 13 of 35
1. Determine the number of ECUs (153510-000182) you need per manifold. The number of
ECUs you use depends on the number of runs per manifold.
Runs per Manifold
ECUs
7 or fewer
1 ECU for 2 manifolds
8-14
1 ECU per manifold
More than 14
2 ECUs per manifold
2. Secure the top and bottom of the ECU to a bracket using a 3/8" x 2" bolt (356060-
000371), washers (352012-000031), vibration damping mount (353070-000239), and
lock nut (352011-000045) as shown in Figure 12.

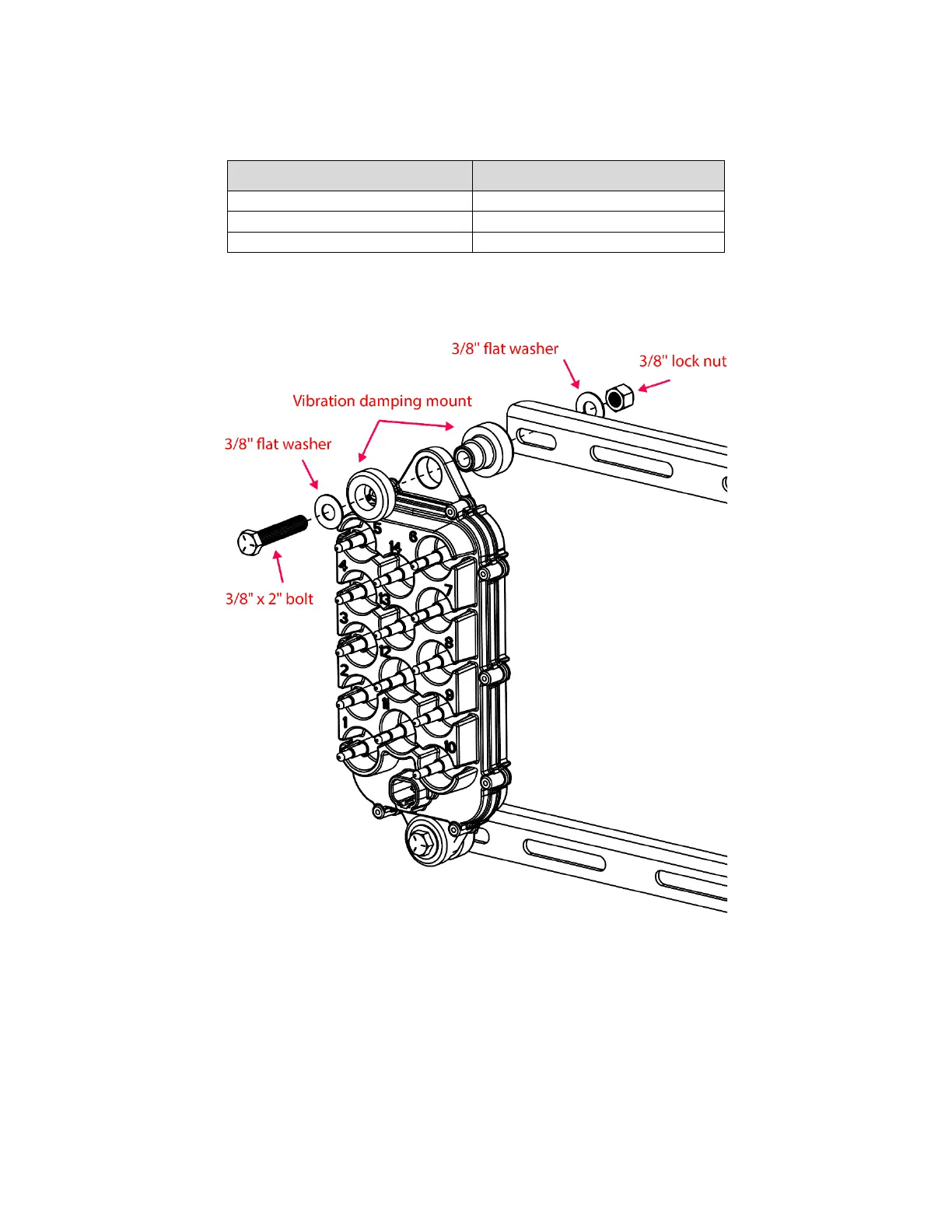

Figure 12: Securing ECU to brackets
3. If you’re using 2 ECUs per manifold, install another ECU onto the other end of the
brackets.
4. Use 3/8” x 1” bolts (356060-000400), washers (352012-000031), and locknuts (352011-
000045) to install a third bracket across the center of the two brackets, as shown in
Figure 10.
