Connecting Auditory Tubes to ECUs Recon Blockage Plus™ Installation Manual
600840-000069, rev 1.0 Page 16 of 35
2. Locate the auditory tube of the sensor that is closest to the tractor when facing the back
of the tractor (labeled “1” in Figure 14) and route it toward the ECU. connect the auditory
tube to the port labeled “1”. Make sure that the hose is not kinked.

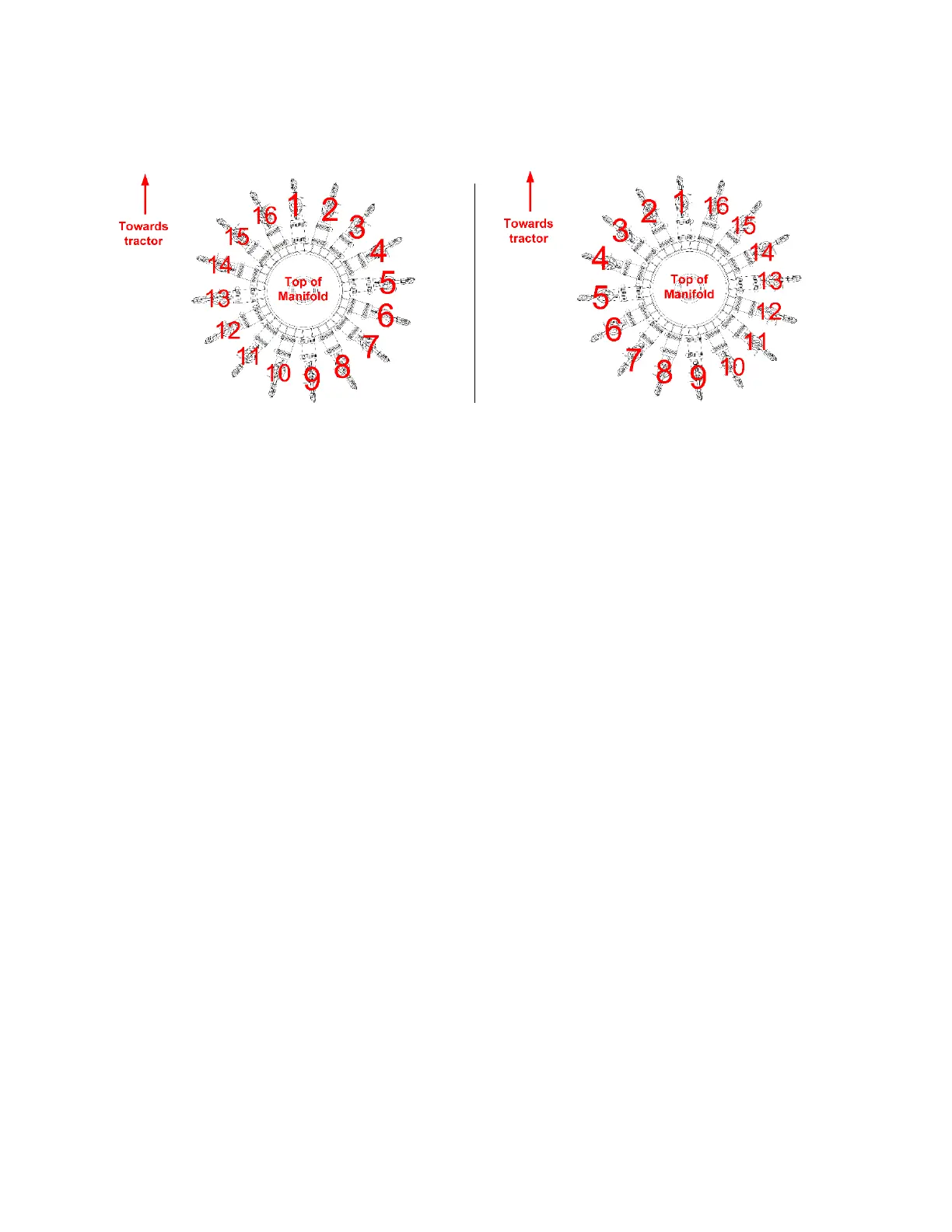

Figure 14: Order to connect flow sensors to ECU
Default order on left (clockwise), Reverse order on right (counterclockwise)
3. Optional: Mark the flow sensor hose with the ECU port number that the sensor is
connected to.
4. Continue connecting auditory tubes to the ECU, working clockwise around the manifold
as shown in Figure 14.
NOTE: If you connect ports in the reverse order, you can change the run direction while
configuring the system in the app.
