Recon BLOCKAGE+ - Installing the Gateway; Figure 18: Mounting a Gateway

Installing the Gateway Recon Blockage Plus™ Installation Manual
600840-000069, rev 1.0 Page 19 of 35
6. Installing the Gateway
The gateway is a computing platform that sends ECU data to the iPad through the Wi-Fi
antenna.
Provided Parts
Part Name
Part Number
Quantity
Gateway 260
153010-000085
1
1/4” flat washer
352012-000002
8
U-bolt
352013-000007,
356060-000152, or
356060-000403
2
Gateway mounting bracket
353070-000079
1
3/8" locknut
(for square u-bolts)
356060-000094
4
3/8" washer
(for square u-bolts)
356060-000239
4
1/4" nut
356060-000241
4
1/4” x 2-1/2” screw
356060-000303
4
Tools Needed
• Standard wrench set
Installation Location
Mounted on the tractor or on top of the air cart. Refer to the steps below for specific mounting
locations for your air cart configuration.

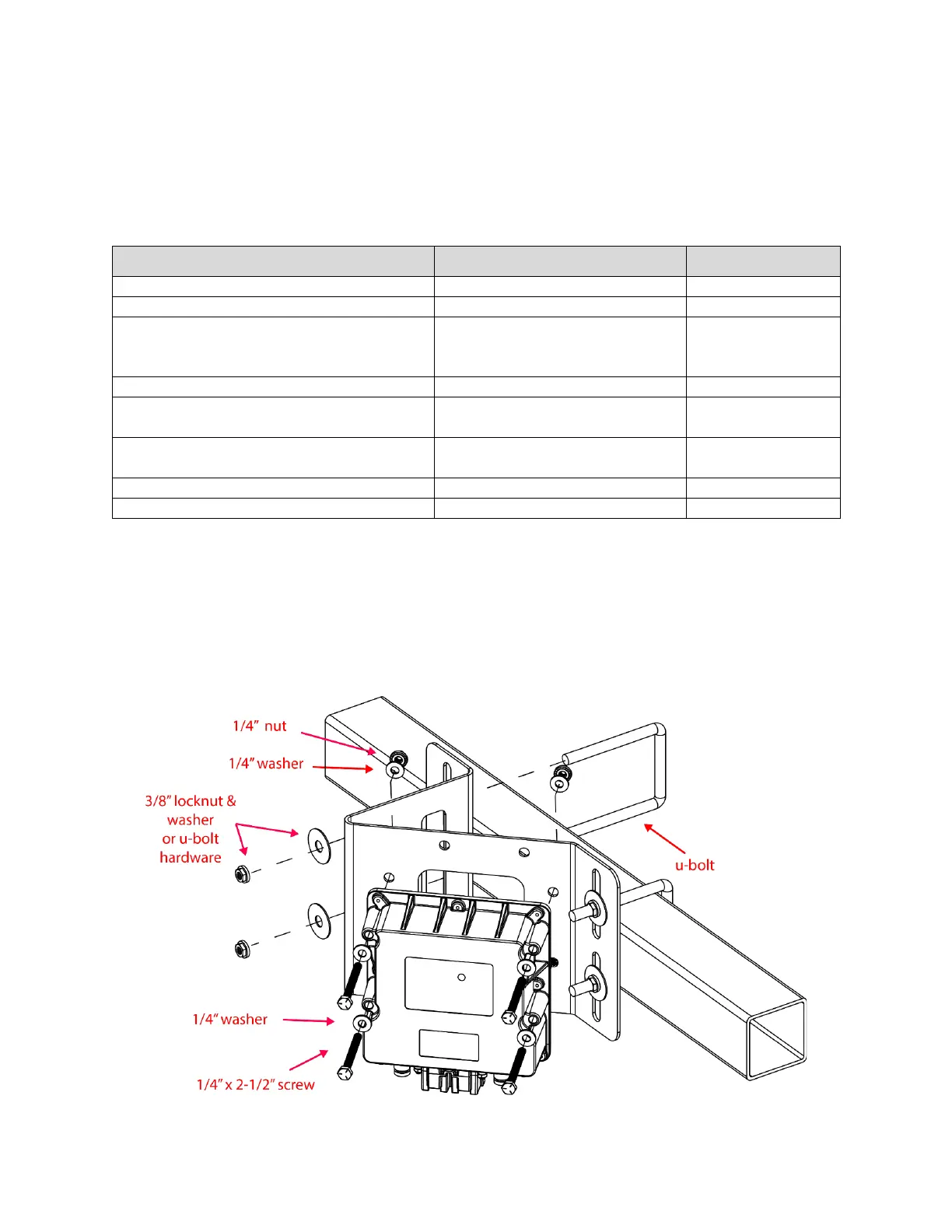

Figure 18: Mounting a gateway
