Connecting Auditory Tubes to ECUs Recon Blockage Plus™ Installation Manual
600840-000069, rev 1.0 Page 15 of 35
4. Connecting Auditory Tubes to ECUs
The auditory tubes on the sensors allow sound to be transmitted from the sensor to the ECU.

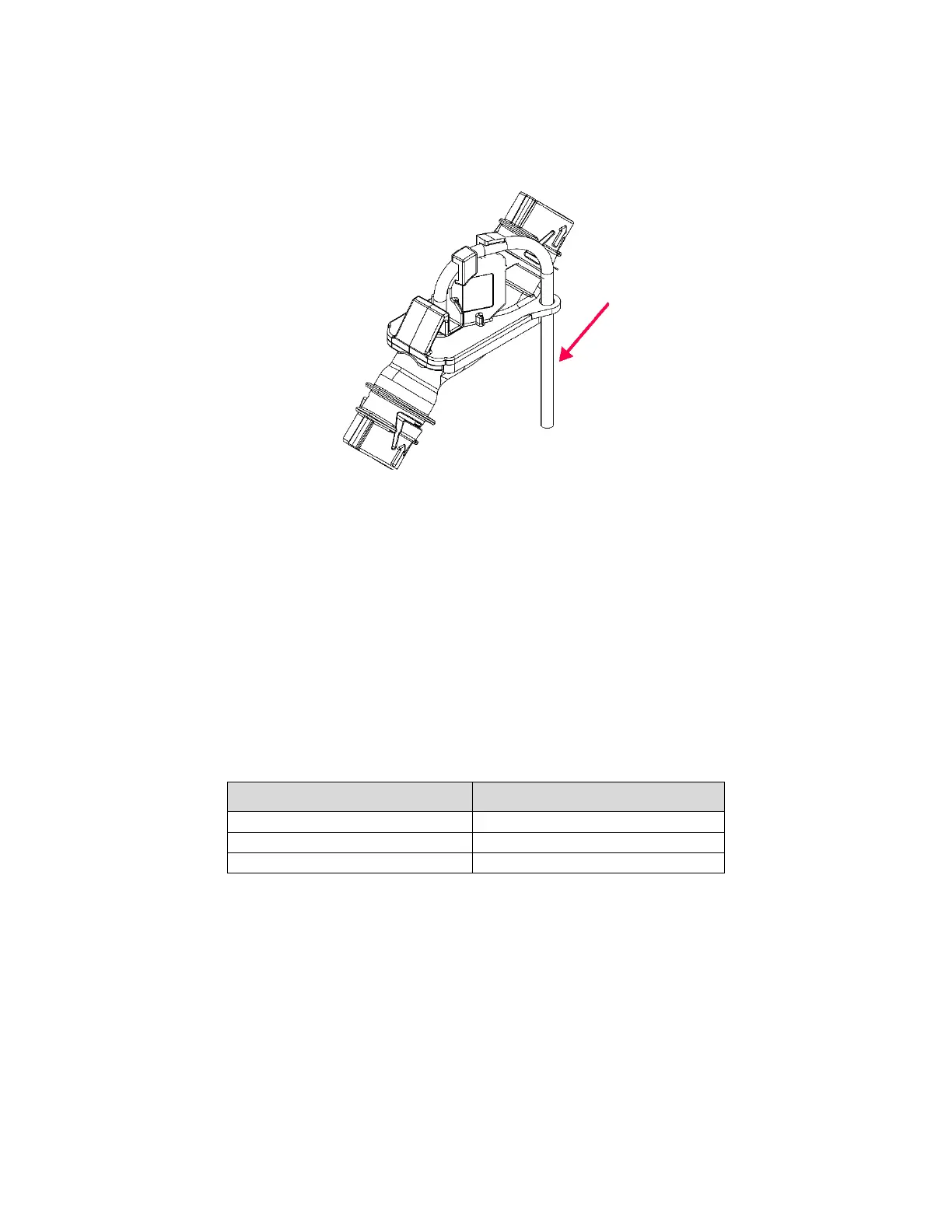

Figure 13: Auditory tube
Tools Needed
• Pliers
• Paint pen or other permanent marking tool (optional)
Connecting Auditory Tubes to ECUs
IMPORTANT: Do not cut or change the length of the auditory tubes. This will cause incorrect
readings.
1. Remove the caps from the ECU ports that you will be using, beginning with ECU port 1.
You will use one ECU port per sensor on the manifold. The number of ECUs you use
depends on the number of runs per manifold.
