RED DEVIL 1400 - 1400 & 1410-A1 Pneumatic Schematic; Pneumatic System Overview

15
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
Back
Front
Ball Valve (On-Off Switch) 9785173
Air Motor 9786128
Muffler
(Reference)
Base
Plant Ai
r
Between 80 & 200 PSI 10 CFM Minimum
Filter/regulator 9785976
Lubricator 9785977
Air Switch 9785174
...Wiring Diagrams, Continued

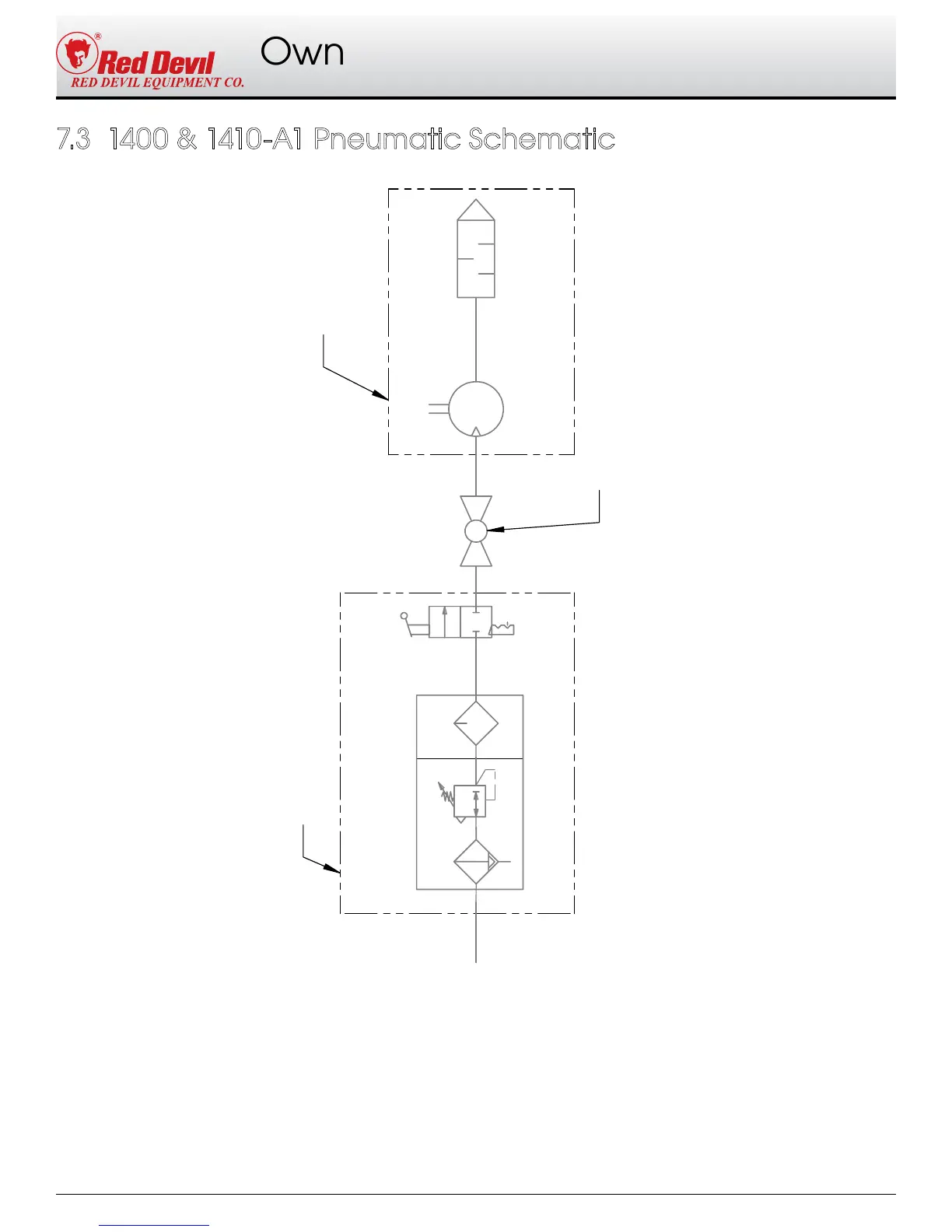

7.3 1400 & 1410-A1 Pneumatic Schematic
