RED DEVIL 1400 - Electrical Assembly (1400-X1); Electrical System Components (1400-X1)

24
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
14
13
7
15
3
16
9
19
24
17
10
31
26
28
8
11
21
25
18
29
20
6
1
30
12
23
7
22
6
5
2
3
3
4
14
13
7
15
3
16
9
19
24
17
10
31
26
28
8
11
21
25
18
29
20
6
1
30
12
23
7
22
6
5
2
3
3
4
ID Description
1 9785160 MOUNT, CONDUIT CLAMP - 1400-X1
2 9784069 NIPPLE, 1_2 NPT X 2.50
3 9782429 union, .5 npt
4 9785153 CONDUIT BODY, L - .50 NPT
5 9784985 NIPPLE, 1_2 NPT X 4.00
6 9785168 CLAMP, PIPE - .50 NPT
7 9784989 tting, sealing, .50npt
8 9785154 NIPPLE, .50NPT X 3.00
9 9785155 CONDUIT BOX, T - .50 NPT
10 9784618 BRACKET RELAY MOUNT
11 5784622 RELAY CUBE 2-POLE 120V
12 9784617 COVER, DEEP, CODUIT BOX
13
14 9785156 CONDUIT, FLEXIBLE - .50 NPT, 10 LONG, M-M
15
16 9682000 NIPPLE, PIPE 1/2" NPT X 2" LONG, GALV
ID Description
17 5784065-Switch, Limit Explosion Proof - 20A Rating
18 9785157 MOUNT, LIMIT SWITCH - 1400-X1
19 9785158 ACTUATOR, LIMIT SWITCH - 1400-X1
20 9161100 Washer, Flat 3_8 USS
21 9780144 Screw Hex 3_8-16 x .75
22 9100731 WASHER, FLAT 3_8 X .82 OD
23 9780193 Nut, Nylock 3_8-16
24 9780366 SCREW HEX THD CUT 1_4-20 X .50
25 9781142 Screw, Pan-Head, 10-32 X .50
26 9781824 Screw Hex #8 X 1_4
28 9780617 SCREW HEX 3_8-16 X 2.00
29
30 5784615 MOTOR .3HP EXP PROOF
31 9160500 belt, v

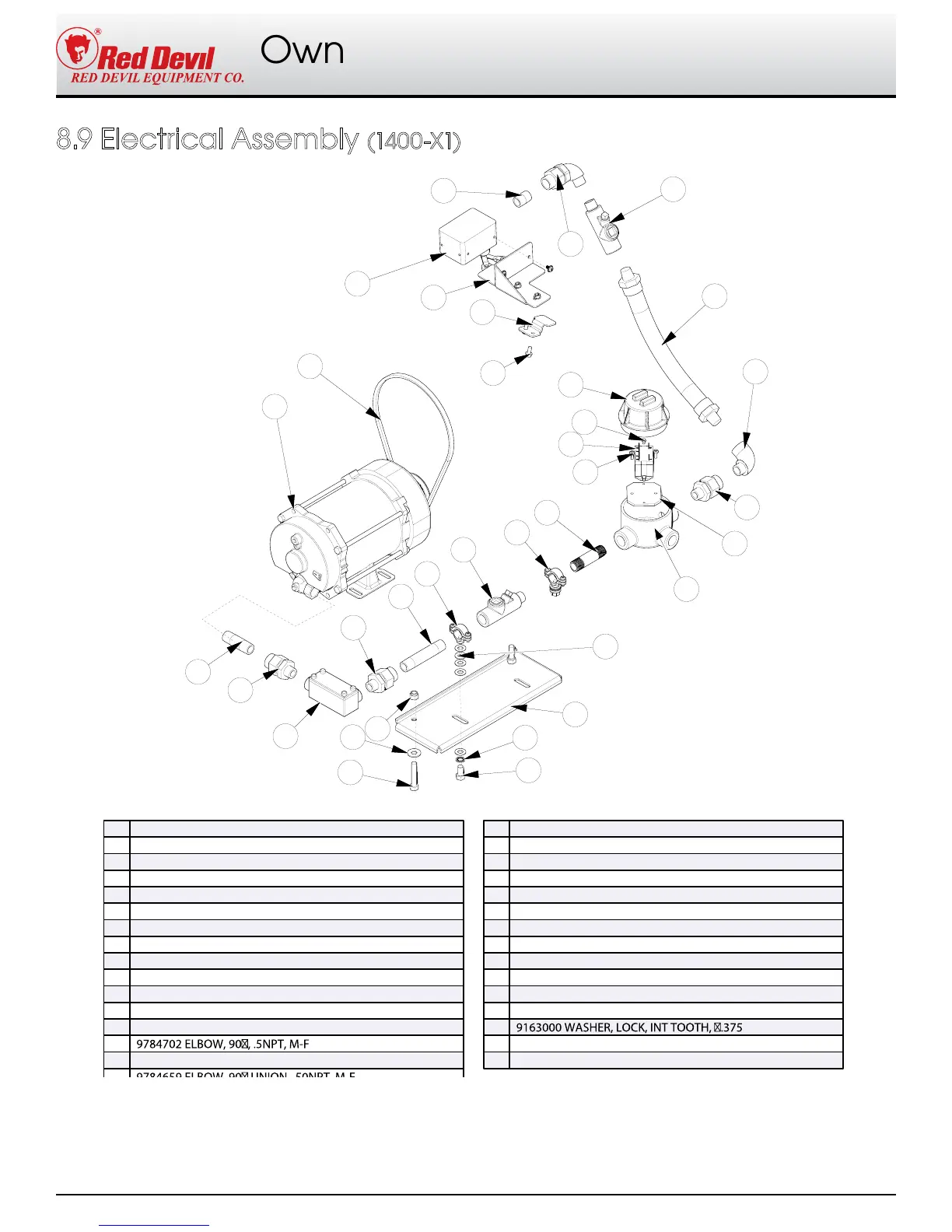

8.9 Electrical Assembly (1400-X1)
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
