RED DEVIL 1400 - Clamp Cover Assembly (1400-X1 & A1); Clamp Cover Assembly Parts

23
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
12
11
2
14
13
1
7
10
3
2
7
6
9
4
5
6
5
8
12
11
2
14
13
1
7
10
3
2
7
6
9
4
5
6
5
8
*1400 Models Only
**1410 Models Only
ID Description
1 9785063 HINGE TUBE WELDMENT - 1400
2 9785068 STUD PLATE, CLAMP COVER - 14XX
3 9785002 CLAMP COVER, LEFT
4 9785003 CLAMP COVER, RIGHT
5 9780827 Screw, Truss Head, 1_4-20 X 3_4
6 9781414 Washer Fender 1_4
7 9780343 Nut 1_4-20 Nylon Lock
8 9785066 HANDLE, RED BALL - 14XX
ID Description
99785067 TENSION BLOCK, CLAMP COVER - 14XX
10 9785059 Screw, Truss Hd Sheet Metal #8 X .75
11 9784555 SCREW, HEX SEMS 1_4-20 X .75
12 9781823 Washer, Flat 1_4 USS
13 9784048 Bumper, Threaded Rubber
14 9785074 HINGE TUBE WELDMENT - 1410
*
**
1414

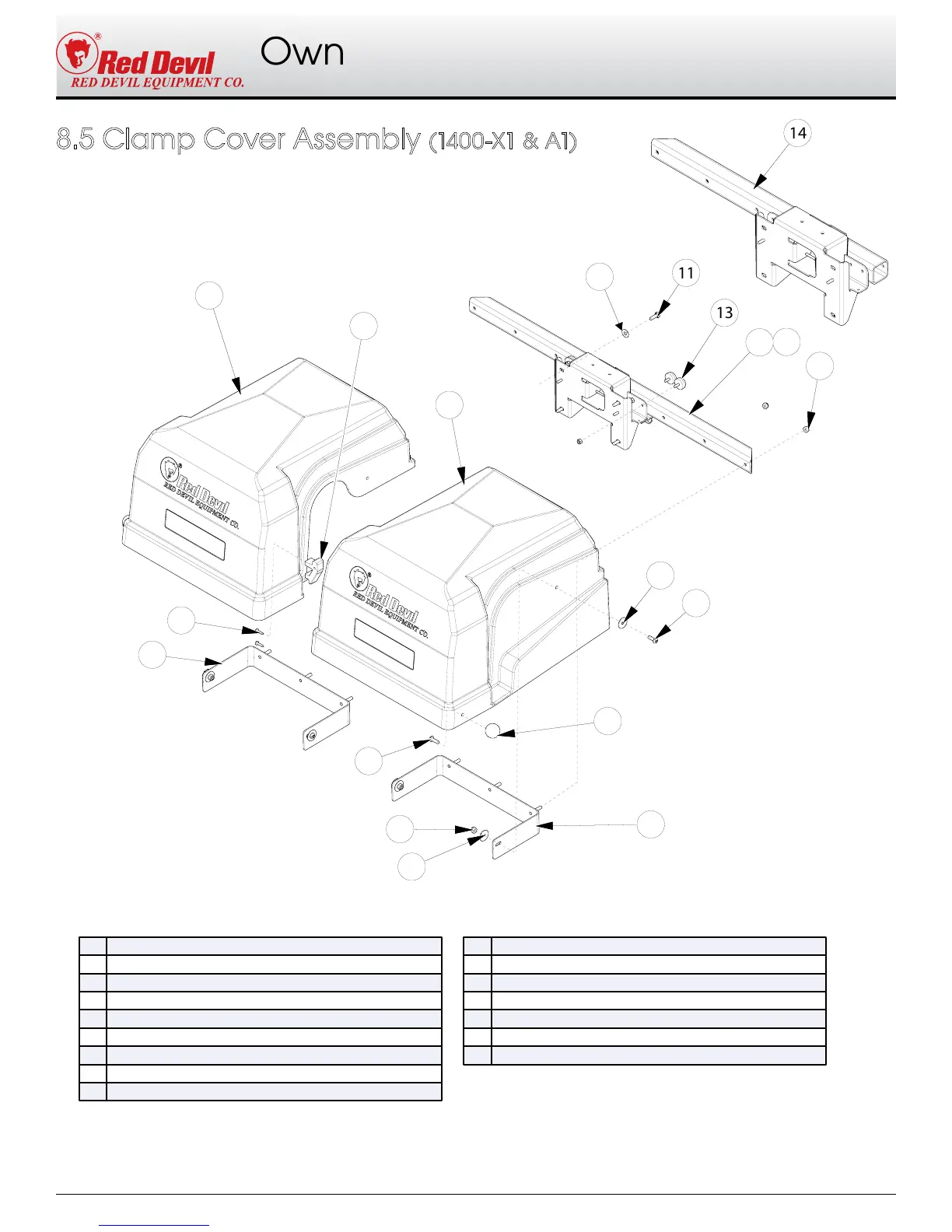

8.5 Clamp Cover Assembly (1400-X1 & A1)
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
