RED DEVIL 1400 - Enclosure Assembly (1400-X1); Enclosure Components (1400-X1)

22
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
7
4
1
3
2
6
5
7
4
1
3
2
6
5
* 14XX-A1 Models
ID Description
1 9785042 Enclosure, Explosion Proof - 14XX
2 9785592 SCREW, TYPE F 5_16-18 X 1.25
3 9781672 BUSHING - 1400
4 9785073 STRIKE PLATE, CLAMP COVER - 14XX
ID Description
59781840 Nut, Keps #8-32
69781812 WELL NUT, #10-32
79785041 Enclosure, Air
*

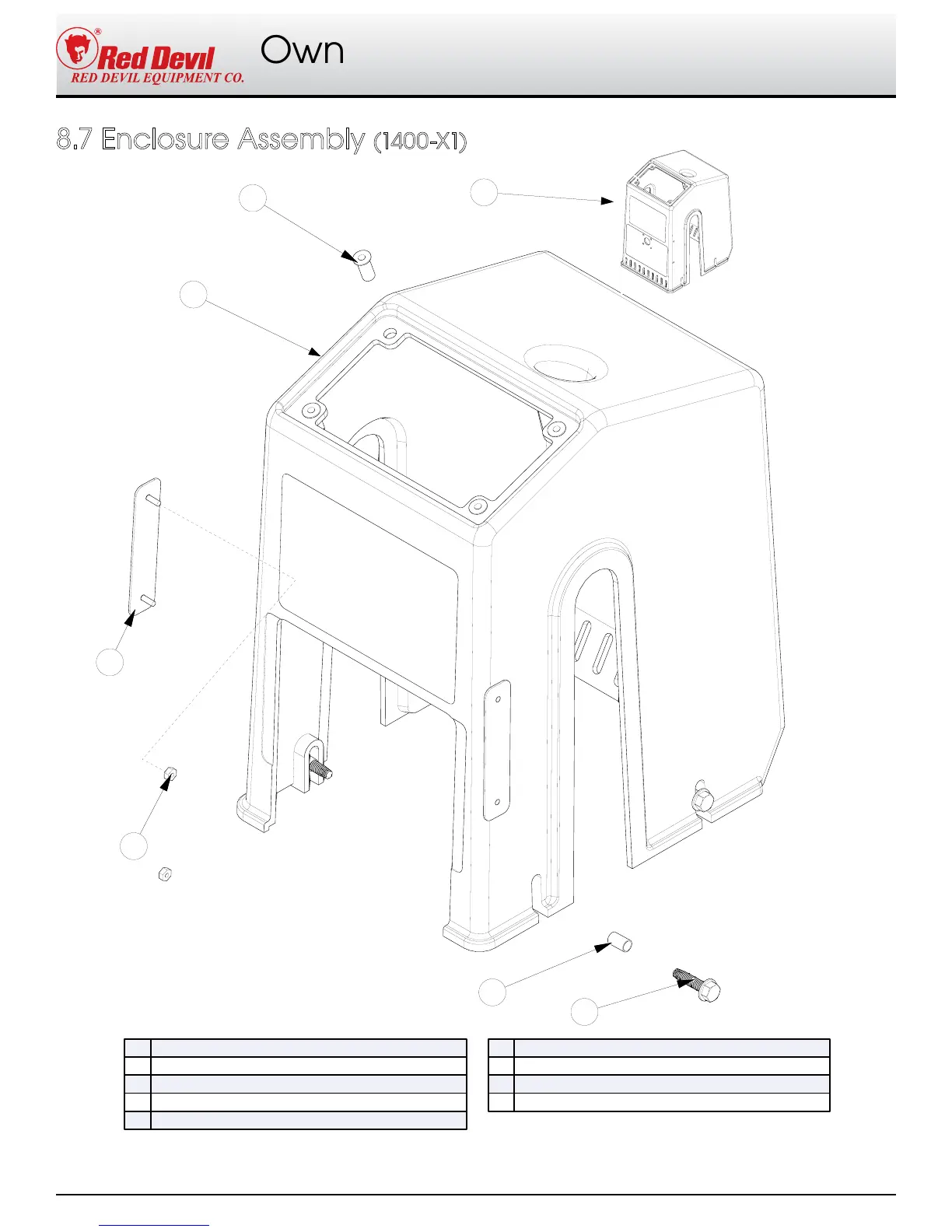

8.7 Enclosure Assembly (1400-X1)
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
