Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
IMPORTANT: Before attempting to operate the
machine:
1. Remove all packing material from the unit.
2. Remove all packing material from the
1. Attach both base castings (A) to the mixer,
using the four carriage bolts (B), washers (C), and
nuts (D) provided.
2. Install a rubber foot (E) into each end of the
springs (F).
3. Lift one side of the mixer. Insert a spring and
foot assembly into the depression in the bottom of
each corner of the base (G).
4. Lift the other side of the mixer, and repeat the
third step.
NOTE: Be sure that the machine and base are
placed on a flat, stable countertop surface.
1. Insert the studs of the suction cups (A) up
through the eight holes in the bottom of the
base (B).
2. Secure them by installing the washers (C)
and acorn nuts (D) provided.
3. Hand tighten first, then tighten the nuts one
complete turn with a wrench.
4. Align the openings of the rubber bumpers
(F) over those on the upper plate of the
base (E).
NOTE: DO NOT overtighten the nuts.
(A)
(D)
(C)
(B)
(E)
(E)
(G)
(F)
NOT FOR USE WITH 1400-X1
(C)
(F)
(D)
(E)
(A)
(B)

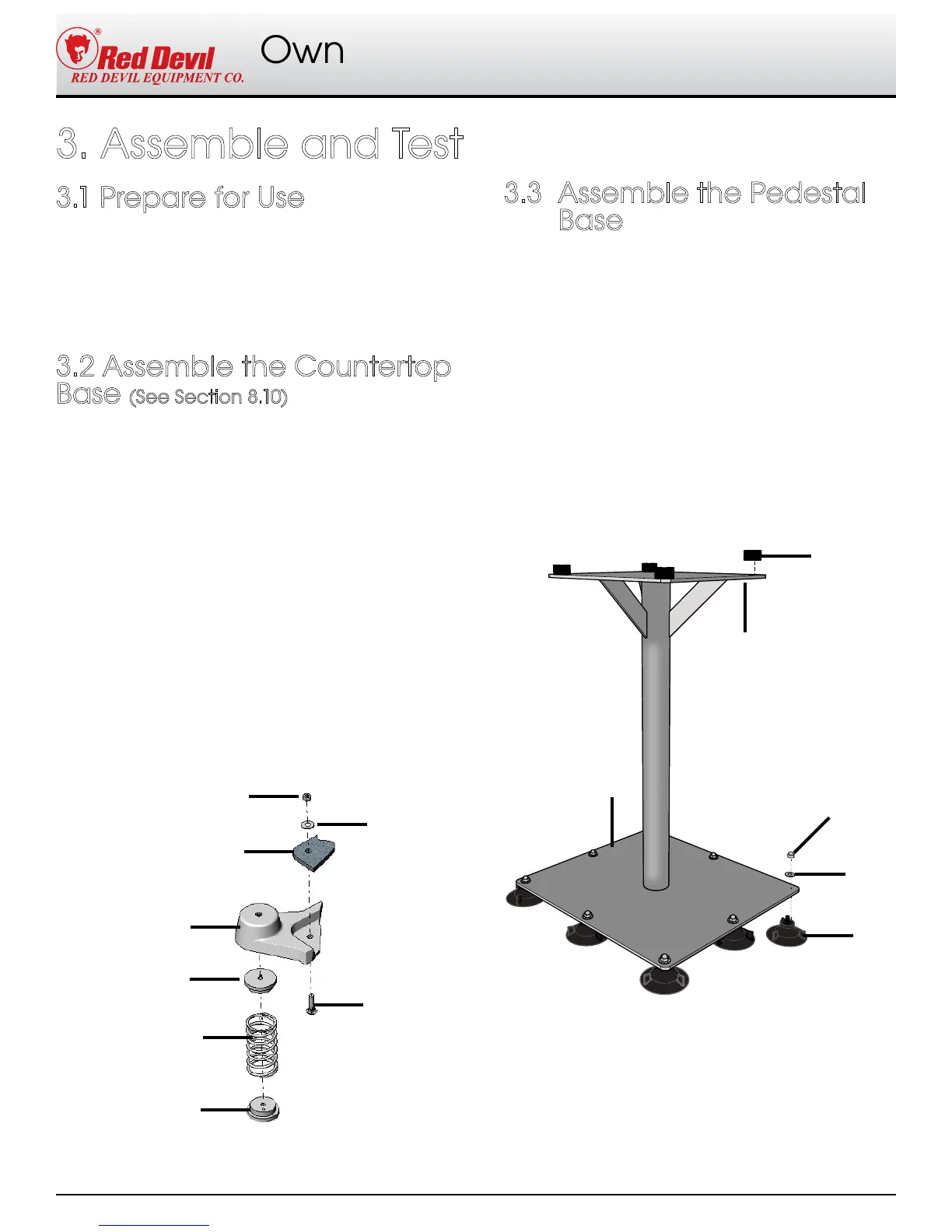

3. Assemble and Test
3.1 Prepare for Use
3.2 Assemble the Countertop
Base (See Section 8.10)
3.3 Assemble the Pedestal
Base (See Section 8.11)
Assembly and Test, Continued..
To Next Page
