RED DEVIL 1400 - Air Assembly; Air System Components

19
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
7
To Plant Air
Between 80 and 200 PSI
10 CFM Minimum
1
3
2
6
8
9
4
To 6785193 Air Drive Assembly
10
5
7
To Plant Air
Between 80 and 200 PSI
10 CFM Minimum
1
3
2
6
8
9
4
To On-O Switch
10
5
ID Description
1 9785182 BRACKET, INTERNAL, AIR PREP - 14XX-A1-N
2 9785181 BRACKET, EXTERNAL, AIR PREP - 14XX-A1-N
3 9781840 Nut, Keps #8-32
4 9785978 MOUNT, FILTER REGULATOR - 14XX-A1
5 9781383 NUT, NYLON LOCK #10-32
6 9787499 FILTER REGULATOR, AIR - 14XX-A1
ID Description
7 9780568 CONNECTOR, AIR, .25 MPT X .25 AIR
8 9785980 CLAMP_SPACER KIT - 14XX-A1
9 9785977 LUBRICATOR, AIR - 14XX-A1
10 9780732 ELBOW, HOSE, .25 MNPT X .25 BARB
...Exploded Views, Continued

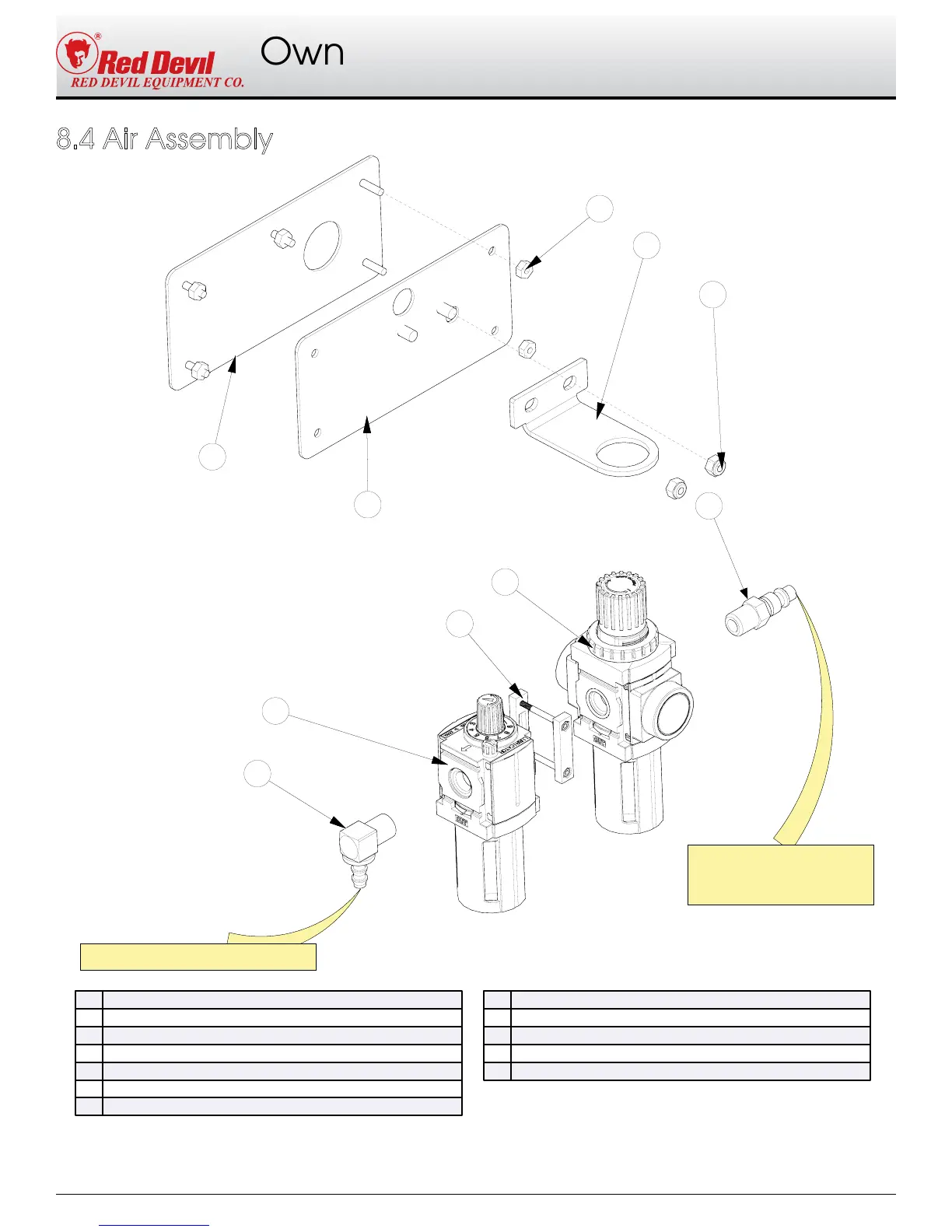

8.4 Air Assembly
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
