RED DEVIL 1400 - Transmission Assembly; Transmission Components

17
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
6
5
15
4
14
3
2
1
16
13
7
12
9
8
10
11
6
5
15
4
14
3
2
1
16
13
7
12
9
8
10
11
*1410 - A1
ID Description
1 9786258 MACHINING, BEARING HOUSING - 14XX
2 6808900 ASSY, CRANKSHAFT - 54XX
3 9124700 KEY, WOODRUFF, NO. 606
4 9694000 PULLEY, COUNTERWEIGHT - 54XX
5 9690300 WASHER, COPPER, FLAT
6 9694100 NUT, NYLON LOCK, THIN, 0.625-18
7 9430300 GASKET, BEARING HOUSING - 54XX
8 9668300 COVER, BEARING HOUSING - 54XX
9 9781831 Screw, Hex 1_4 X 1
ID Description
10 9622800 VALVE, TIRE
11 9622600 CAP, SCHRADER VALVE, NYLON - 54XX
12 9787092 BLOCK, UNIVERSAL - 14XX
13 9157400 SEAL, OIL, AGITATOR SHAFT
14 9359200 SEAL, OIL, CRANKSHAFT
15 9341700 SHAFT, AGITATOR, DUAL - 5400
16 9339600 SHAFT, AGITATOR, SINGLE
*

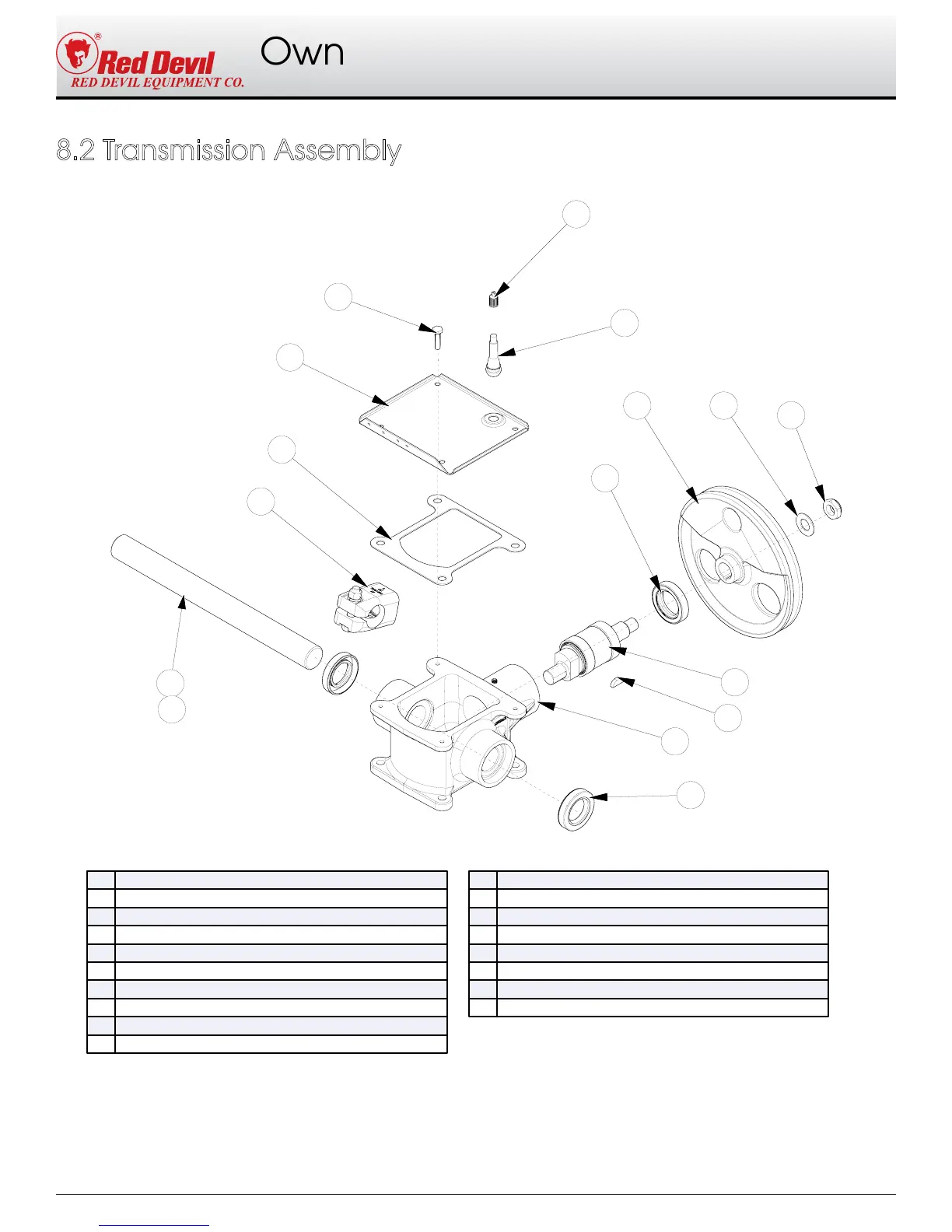

8.2 Transmission Assembly
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
