RED DEVIL 1400 - Clamp Assembly, Left; Left Clamp Assembly Parts

20
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
2
6
7
1
8
3
4
5
12
11
10
9
2
6
7
1
8
3
4
5
12
11
10
9
ID Description
1 9784822 CLAMP JAW, LEFT FRONT - 54XX
2 9784821 CLAMP JAW, LEFT REAR - 54XX
3 9188100 HANDLE, CLAMP, 5400
4 9785071 WASHER, LOCK, INTERNAL TOOTH, M12
5 9785072 NUT, HEX JAM, M12X1.75
6 9784830 CLAMP SCREW - 14XX
7 9782216 Thrust Washer
ID Description
8 9140200 Key, Woodru No 404
9 9690800 SCREW, HEX 3_8-16 X 2.00
10 9780402 Washer 3_8 split lock
11 9161100 Washer, Flat 3_8 USS
12 6784823 ASSY, GUIDE ROD, HD - 14XX
13 6785100 - Left Side Assembly Kit
13

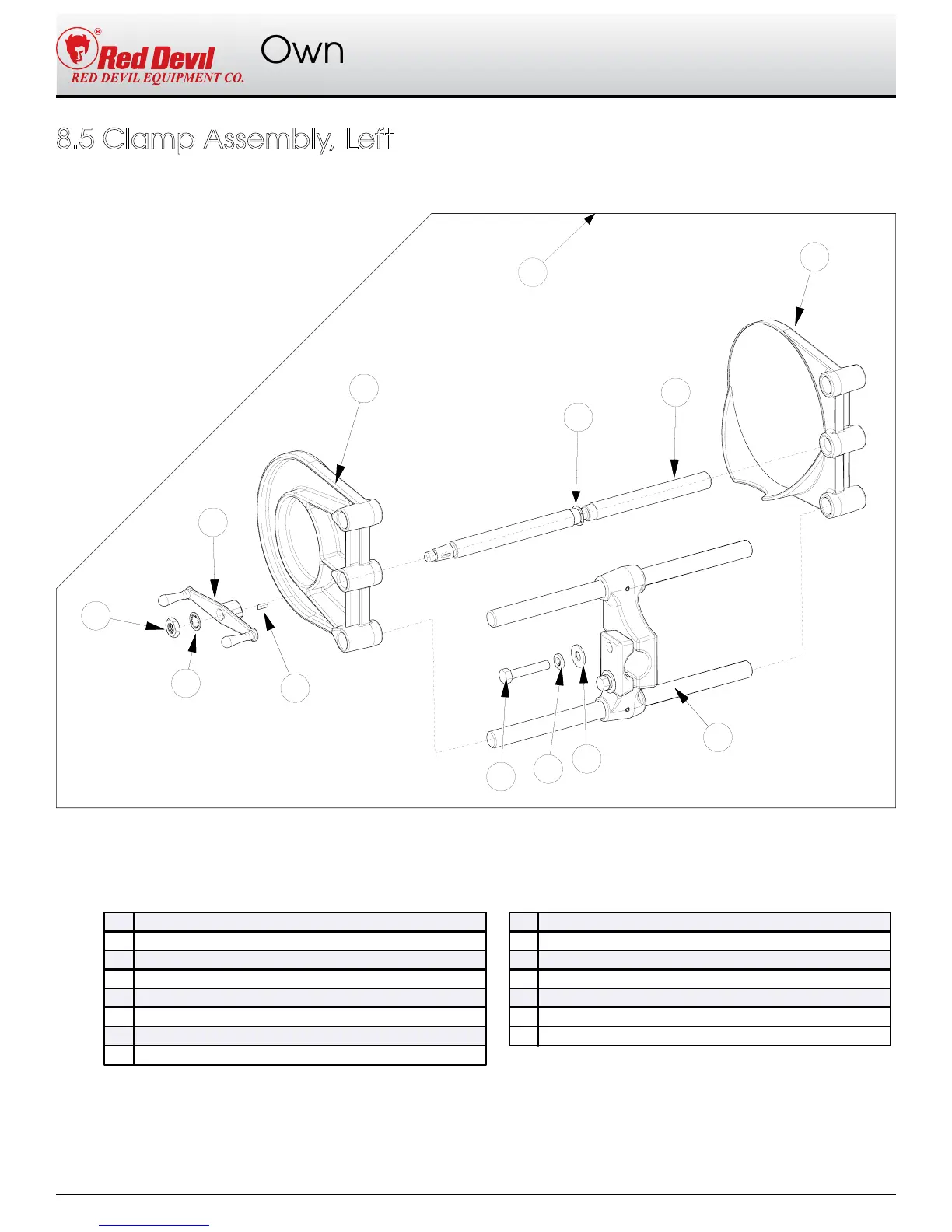

8.5 Clamp Assembly, Left
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
