RED DEVIL 1400 - Exploded Views; Drive System 1400-X1

16
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
4
1
14
3
2
5
7
8
10
4
22
11
12
22
6
13
15
9
19
21
16
20
17
18
4
1
14
3
2
5
7
8
10
4
22
11
12
22
6
13
15
9
19
21
16
20
17
18
* 1410-X1
ID Description
1 8621200 BASE WELDMENT, 54XX
2 5784615 MOTOR .3HP EXP PROOF
3 9561700 Screw Hex 5_16 X 1
4 9615100 NUT, RETAINING, J-TYPE 5/16-18
5 9638400 PULLEY, EXP PROOF, 60Hz MTR - 54XX
6 9159800 SCREW, SET, …-20 X .50, CUP PT
7 9785210 BRACKET, IDLER - 1400-X1
8 9621900 screw, hex washer hd, …-20 x 1.00 tc type f
9 9190800 CARRIAGE BOLT 3_8-16 X 1.50
10 9782995 WASHER, FLAT, 1_2 X 1.06 OD
11 9785406 Tensioner, Pulley
12 9783951 Nut, 3_8-16 Jam Nylon Lock
13 6785060 TRANSMISSION ASSEMBLY - 1400
14 6785085 TRANSMISSION ASSY - 1410
15 9160500 belt, v
16 9785062 HINGE BRACKET, TRANS RIGHT - 14XX
17 9780402 Washer 3_8 split lock
18 9780886 SCREW HEX 3_8-16 X 1.00
19 9785061 HINGE BRACKET, TRANS LEFT - 14XX
20 9622600 CAP, SCHRADER VALVE, NYLON - 54XX
21 9622800 VALVE, TIRE
22 9161100 Washer, Flat 3_8 USS
*

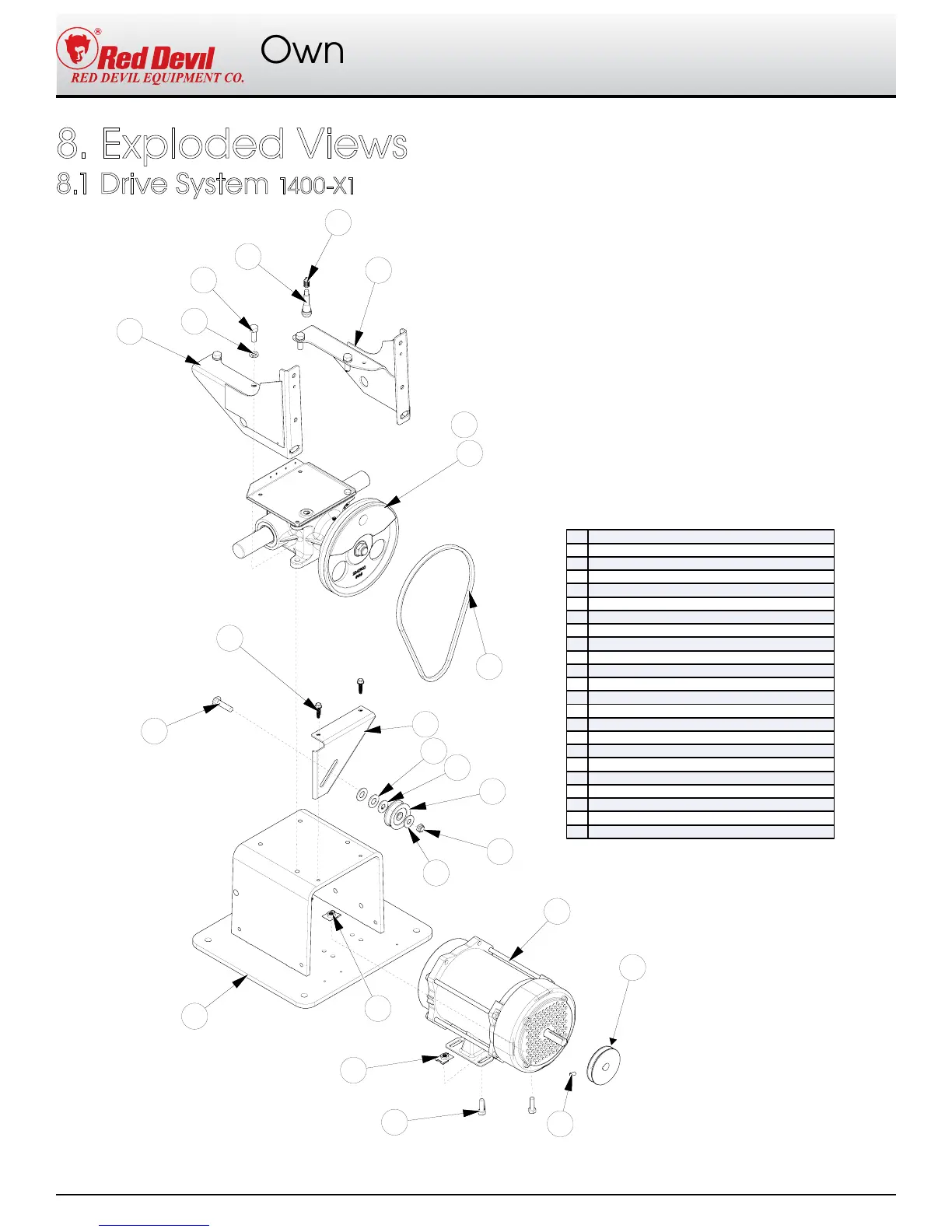

8. Exploded Views
8.1 Drive System 1400-X1
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
