RED DEVIL 1400 - Drive System 1400 & 1410-A1; Drive System Components (1400;1410-A1)

18
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
11
24
9
25
10
22
12
21
23
To Air Limit Switch
21
20
16
19
18
17
16
29
1
29
8
28
7
13
14
3
15
2
4
6
5
26
27
11
24
9
25
10
22
12
21
23
To Air Limit Switch
21
20
16
19
18
17
16
29
1
29
8
28
7
13
14
3
15
2
4
6
5
26
27
ID Description
1 8621200 BASE WELDMENT, 54XX
2 6785060 TRANSMISSION ASSEMBLY - 1400
3 9785061 HINGE BRACKET, TRANS LEFT - 14XX
4 9785062 HINGE BRACKET, TRANS RIGHT - 14XX
5 9785092 Screw Hex 3_8-16 X 1.75 FULL THD
6 9780402 Washer 3_8 split lock
7 9785123 MOUNT, VALVE - 14XX-A1
8 9780193 NUT, NYLOCK 3_8-16
9 9780725 PLATE, MOTOR MOUNT - 14XX-A1
10 9786128 MOTOR, AIR, CCW
11 9780353 Screw Hex 1_4 X 1 1_2
12 9780343 Nut 1_4-20 Nylon Lock
13 9785172 PLATE, VALVE - 14XX-A1
14 9785190 SCREW, FLAT HD, PH #10-32 x .50 BLK OXIDE
15 9759820 Screw, Ph Pan Hd 6-32 X .375
ID Description
16 9780732 ELBOW, HOSE, .25 MNPT X .25 BARB
17 9786121 HOSE, AIR, VALVE TO MOTOR - 14XX-A1
18 9785178 HOSE, AIR, PREP TO VALVE - 14XX-A1
19 9785180 HOSE, AIR, MOTOR TO MUFFLER - 14XX-A1
20 9780567 BARB, HOSE, .25 FNPT X .25 BARB
21 9688200 Washer 1_2
22 MUFFLER, AIR MOTOR
23 9785177 BRACKET, MUFFLER - 14XX-A1
24 9619000 PULLEY, STD, 60Hz MTR - 54XX
25 9159800 SCREW, SET, …-20 X .50, CUP PT
26 9622800 VALVE, TIRE
27 9622600 CAP, SCHRADER VALVE, NYLON - 54XX
28 9592800 BELT, ROUND
29 9785173 VALVE, BALL, PANEL
...Exploded Views, Continued

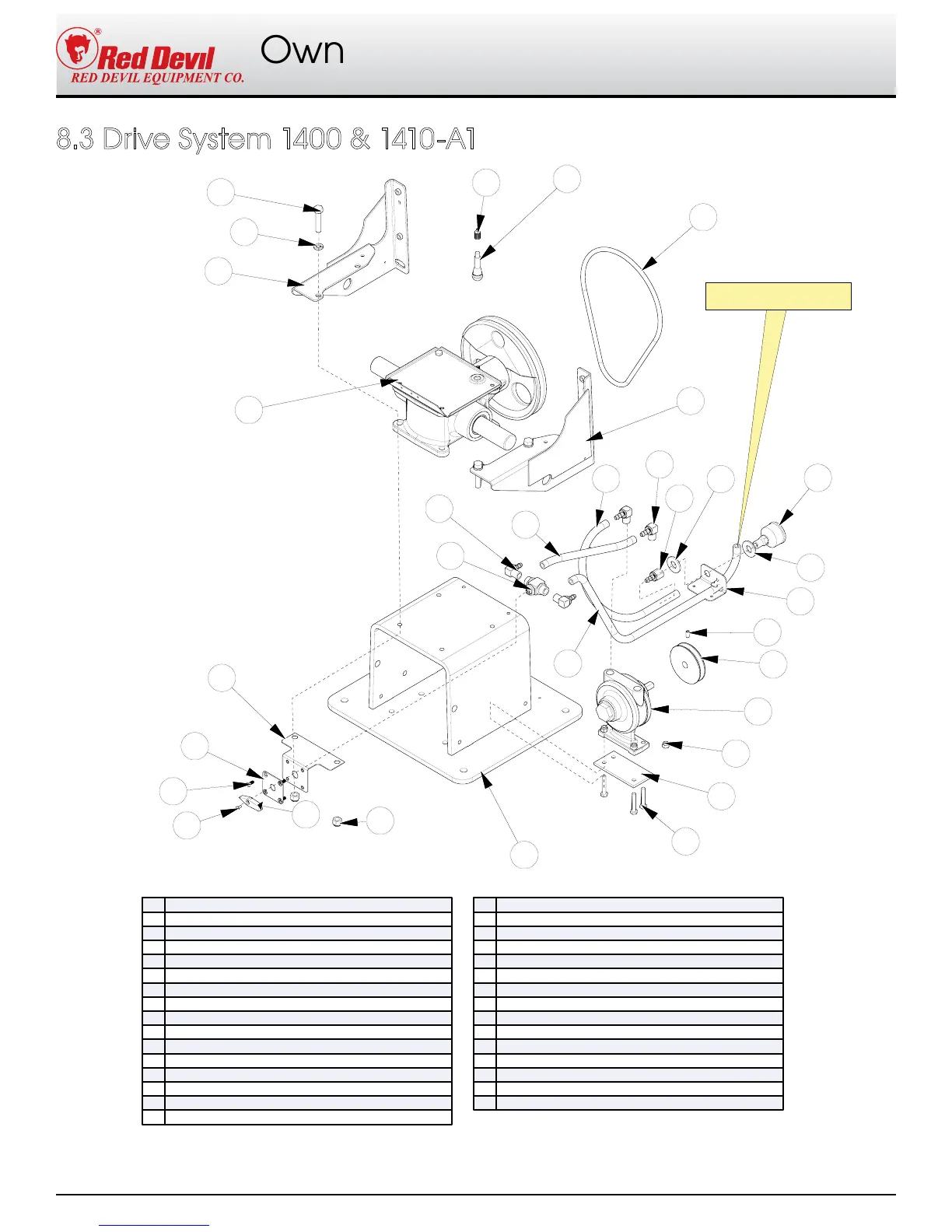

8.3 Drive System 1400 & 1410-A1
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
