RED DEVIL 1400 - Pedestal Base (5151-00); Pedestal Base Parts

26
Owner’s Manual:1400 & 1410
1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) +1-763-533-2969 | (FAX) 763-533-0015
2
4
3
8
1
7
6
5
2
4
3
8
1
7
6
5
ID Description
1 9782610 Top Plate, Pedestal Base
2 9324700 Foot, Suction Cup
3 9436300 NUT, ACORN CAP 5_16-18
4 9100023 WASHER, FLAT 5_16 USS
5 9780617 SCREW HEX 3_8-16 X 2.00
ID Description
69161100 Washer, Flat 3_8 USS
79327500 Rubber feet
89780193 Nut, Nylock 3_8-16

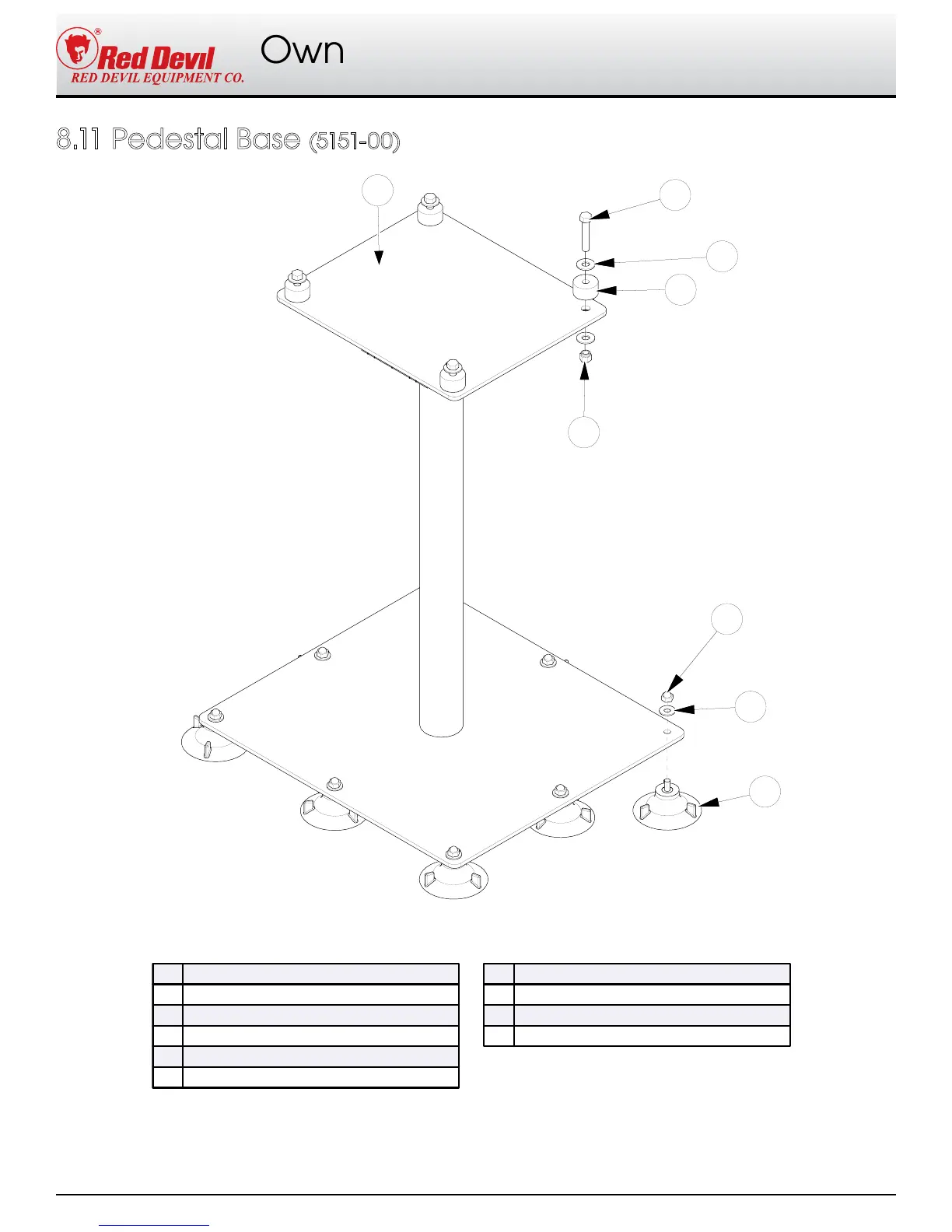

8.11 Pedestal Base (5151-00)
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
