Red Jacket CoreDEF Series - Capacitor Kits Parts List

35
Parts Lists
Submersible Pump And Accessories
Capacitor Kits
Table 6 lists the capacitor kits parts list.
Table 5. Replacement Parts
Item Description P/N
UMP
DP75U1 410852-001
DP75U3 410852-002
DP200U1 410852-003
DP200U17 410852-004
DP200U4 410852-005
Pressure Relief Kit Adjustable Pressure Relief Kit 410881-001
Replacement Cable
Kit
Cable Repair Kit 410886-001
Miscellaneous
Accessories
3/4 HP Relief Valve Kit, 1/2” NPT 410882-001
2 HP Relief Valve Kit, 1-1/4” NPT 410883-001
Check valve kit 410875-001
1-1/4” Adapter Kit, NPT To BSP 410878-001
2” Adapter Kit, NPT To BSP 410879-001
Pressure Gauge Kit 410880-001
Table 6. Capacitor Kits*
Item
(ref. Figure 31) Part Number Description Qty.

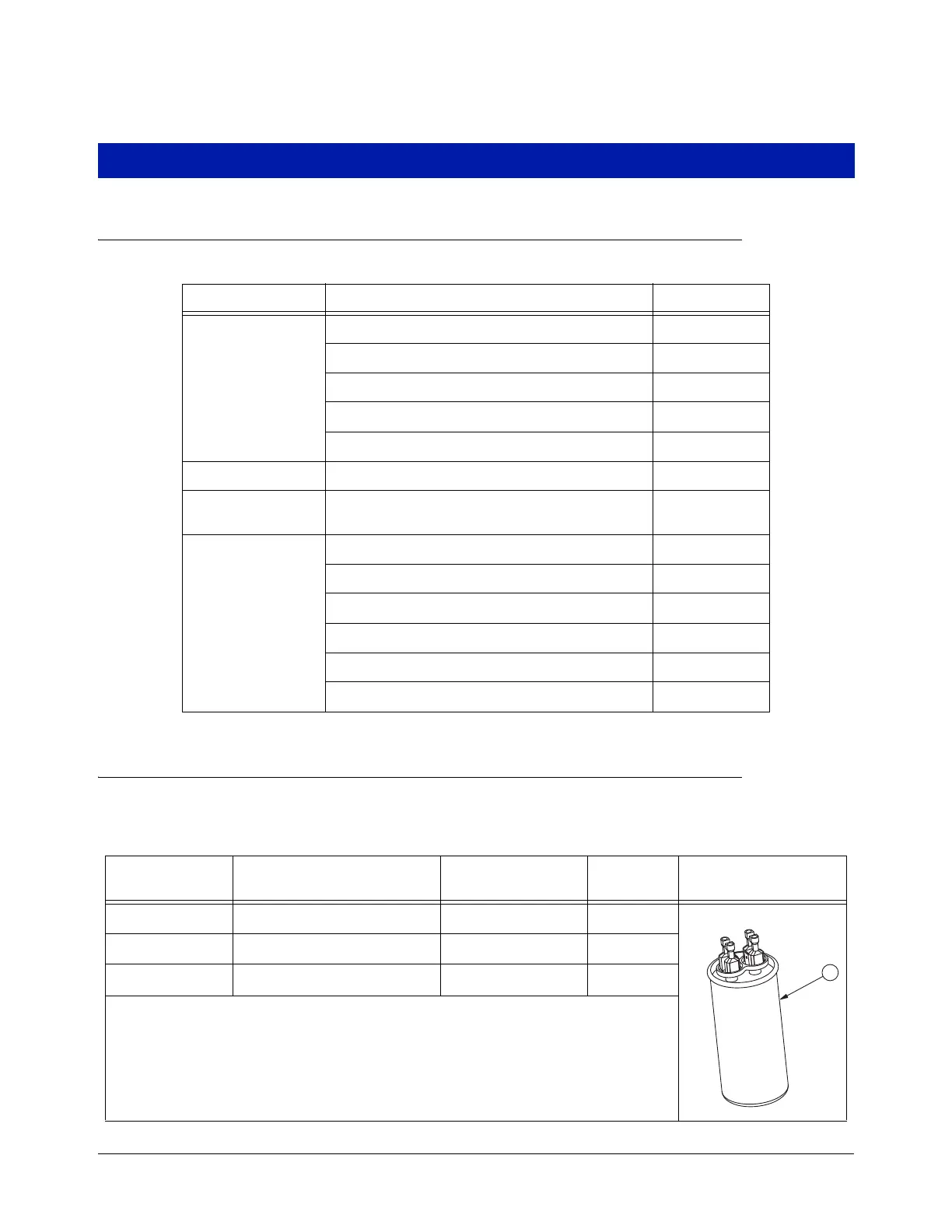

Figure 31. Capacitor Kits
1
410164-001 17.5 F Capacitor
1
1
410164-002 25 F Capacitor
1
1
410164-003 40 F Capacitor
1
*All capacitors contain internal bleed-down resistor and are rated 440 volts.
