Red Jacket CoreDEF Series - Table 9. 880-041-5; 880-042-5 Control Box

Parts Lists Control Boxes
37

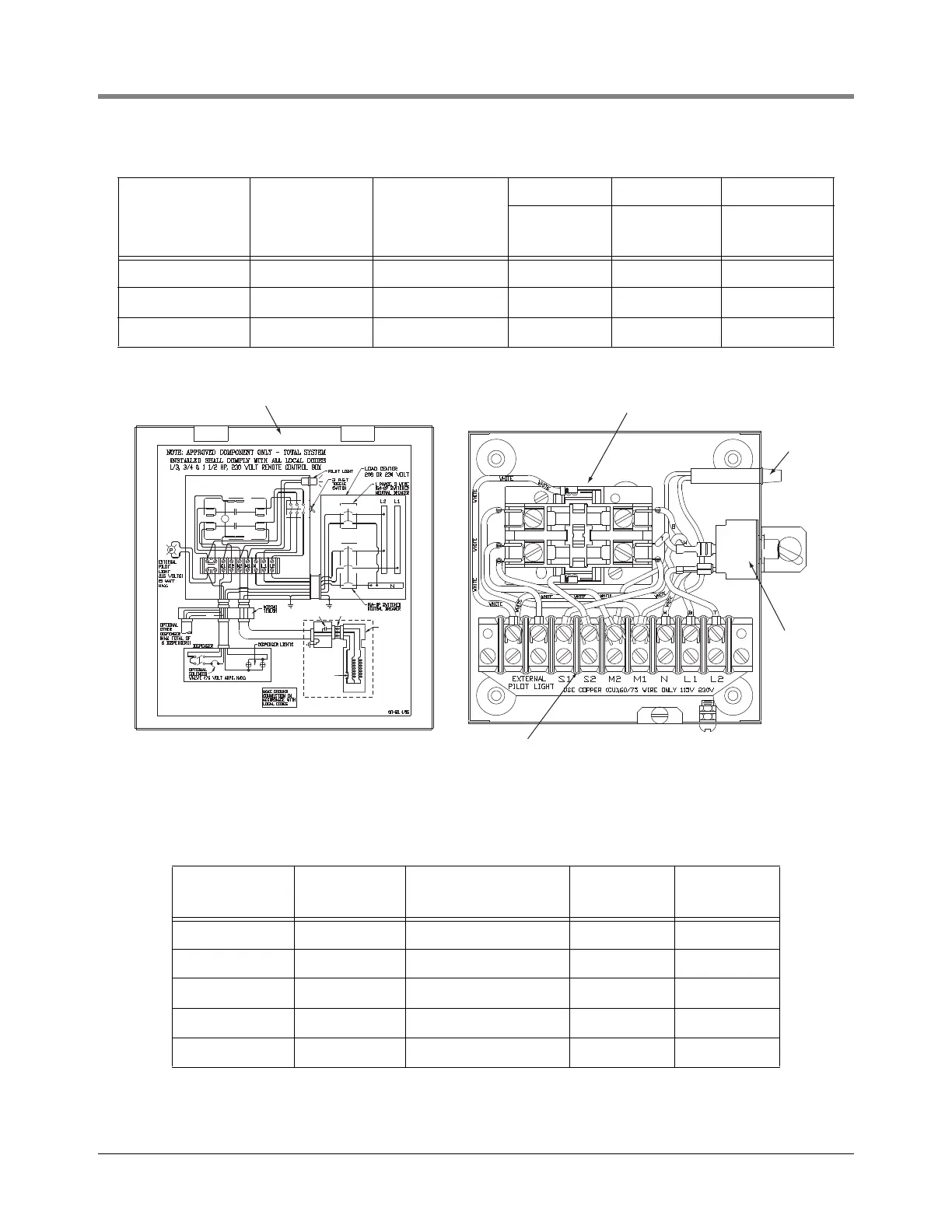

Figure 33. 880-041-5/880-042-5 Control Box
3 247-001-5 Pilot Light Assy. 1 1 1
4 080-858-1 Toggle Switch 1 1 1
5 008-202-1 Terminal Block 1 1 1
Table 9. 880-041-5 / 880-042-5 Control Box
Item
(Ref. Figure 33) Part No. Description
880-041-5
Control Box
W/115V Coil
880-042-5
Control Box
W/230V Coil
1 108-572-4 Control box 1 1
2 247-001-5 Pilot light ass'y 1 1
3 1 Line contactor relay 014-723-1 014-72-1
4 080-858-1 Toggle switch 1 1
5 008-202-1 Terminal block 1 1
Table 8. Control Box W/Capacitor (240V Coil)
Item
(Refer Figure 32) Qty./Part Number Description
0410860-003 0410860-002 0410860-001
CB-3/4 HP
17.5 µF
240V Coil
CB-1-1/2 HP
25 µF
240V Coil
CB-2 HP
40 µF
240V Coil
1
2
3
4
5
Electrical
interlock
Internal
overload
protector
Continuous
duty capacitor
Extractable
packer
Junction box
in manifold
Motor
STP
R
B
O
G
