Red Jacket CoreDEF Series - Capacitor (Models 880-045-5 or 410861-001)

Installation Wiring Diagrams
18

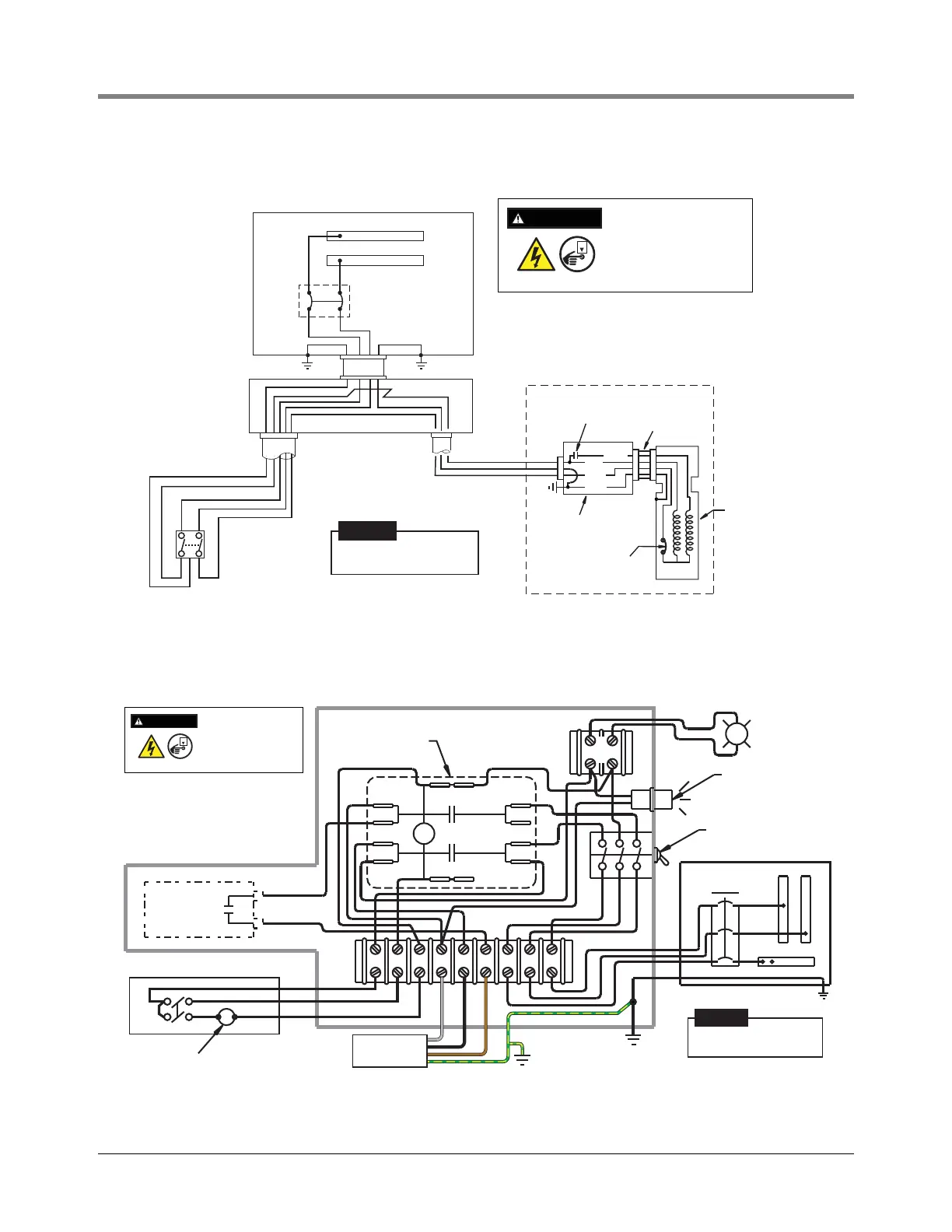

Figure 16. Suggested 208/230 V Wiring Diagram Without Optional Control Box
Figure 17. 240 Vac Remote Control Box With 120 Vac Coil And Capacitor (Models 880-045-5 Or 410861-001)
Load center 208/230 V, 1 Phase, 2 Wire
2 pole switch
15 amp
2 pole switch
Make ground connection in
accordance with local codes.
Wiring
trough
Cable Strain
Relief
Internal
overload
protector
Continuous
duty capacitor
L1
L2
Submersible
DEF pump
Motor
Brown
Black
Green
Grey
Liquid-Tight
Junction Box
NOTICE
DISCONNECT, LOCK OUT,
AND TAG POWER AT THE
POWER PANEL BEFORE
WIRING THE PUMP.
WARNING
OFF
115 volt
25 watt
max.
Load center
208 or 230 volt
L2 L1
N
3 P.S.T. toggle
switch
Pilot light
Line starter
Capacitor
P
EXT
PILOT
LIGHT
S1 S2 S3 M3 NM1 M2 L1 L2
UMP
Dispenser
Optional solenoid valve
(76 volt-amps max.)
BLACK
BROWN
GREEN/YELLOW
GREY
DISCONNECT, LOCK OUT,
AND TAG POWER AT THE
POWER PANEL BEFORE
WIRING THE PUMP.
WARNING
OFF
Make ground connection in
accordance with local codes.
NOTICE
Connect To
Electrical Ground
