FRONT PANEL DESCRIPTION
The front panel bezel material is
flame and scratch resistant, tinted
plastic. An optional NEMA
4X/IP65 bezel version is available
that meets NEMA 4X/IP65
requirements, when properly
installed. There are two 4-digit
LED displays, a red upper Main
Display and a lower green
Secondary Display.
There are up to six annunciators
depending on options installed,
with red backlighting, that
illuminate to inform the operator of
thecontroller andoutputstatus. See
Figure 11, Front Panel for a
description of the available
annunciators.
Four frontpanel buttons are used
to access different modes and
parameters. The following is a
description of each button.
Button Functions
DSP - In the normal operating
mode, the Display (DSP) button
is used to select one of the
operational parameters in the
secondary display or the
temperature unit’s (°F or °C). In
the Configuration Parameter
Modes, pressing this button causes the unit to exit (escape) to the normal
operating mode with no changes made to the selected parameter.
UP, DN - In the normal operating mode, the Up/Down buttons can be used to
directly modifythe setpoint value or % output power (manual modeonly),
when viewed in the secondary display. Otherwise, the parameter must be
called to alter the v alue.
PAR - The Parameter (PAR) button is used to access, enter the change, and
scroll through the available parameters in any mode.

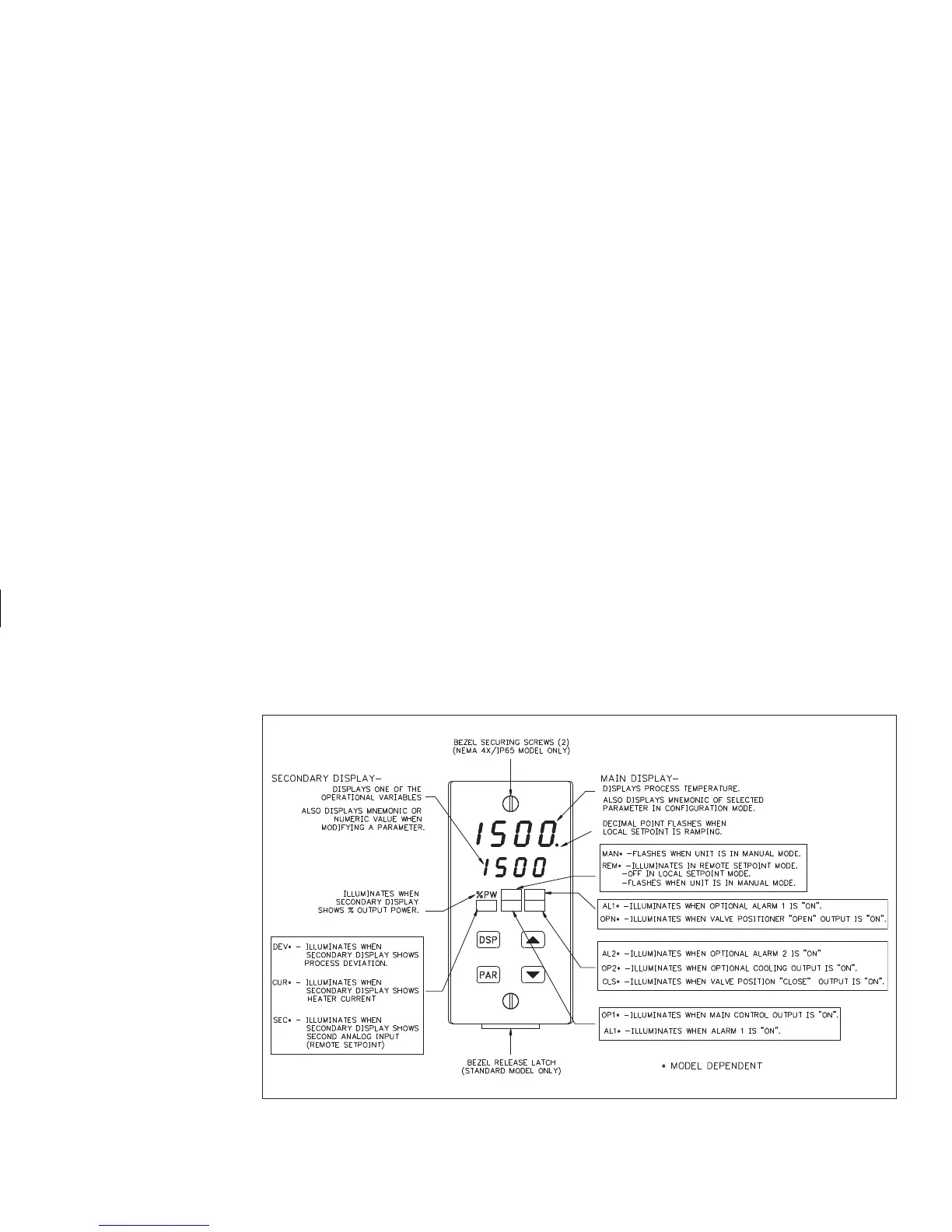

Figure 11, Front Panel
