Configuration Of Parameters
As supplied from the factory, the controller parameters have been
programmed to the values listed in the Programming Quick Reference
Tables.Theusermustmodifythevalues, ifnecessary,tosuitthe application.
Operation and configuration o f the controller is divided into five distinct
operational/programming modes to simplify the operation of the controller:
Normal Display Mode, Unprotected Parameter Mode, Protected Parameter
Mode, Hidden Function Mode, and Configuration Parameter Modules. See
Figure 12, Operational/Programming Modes.

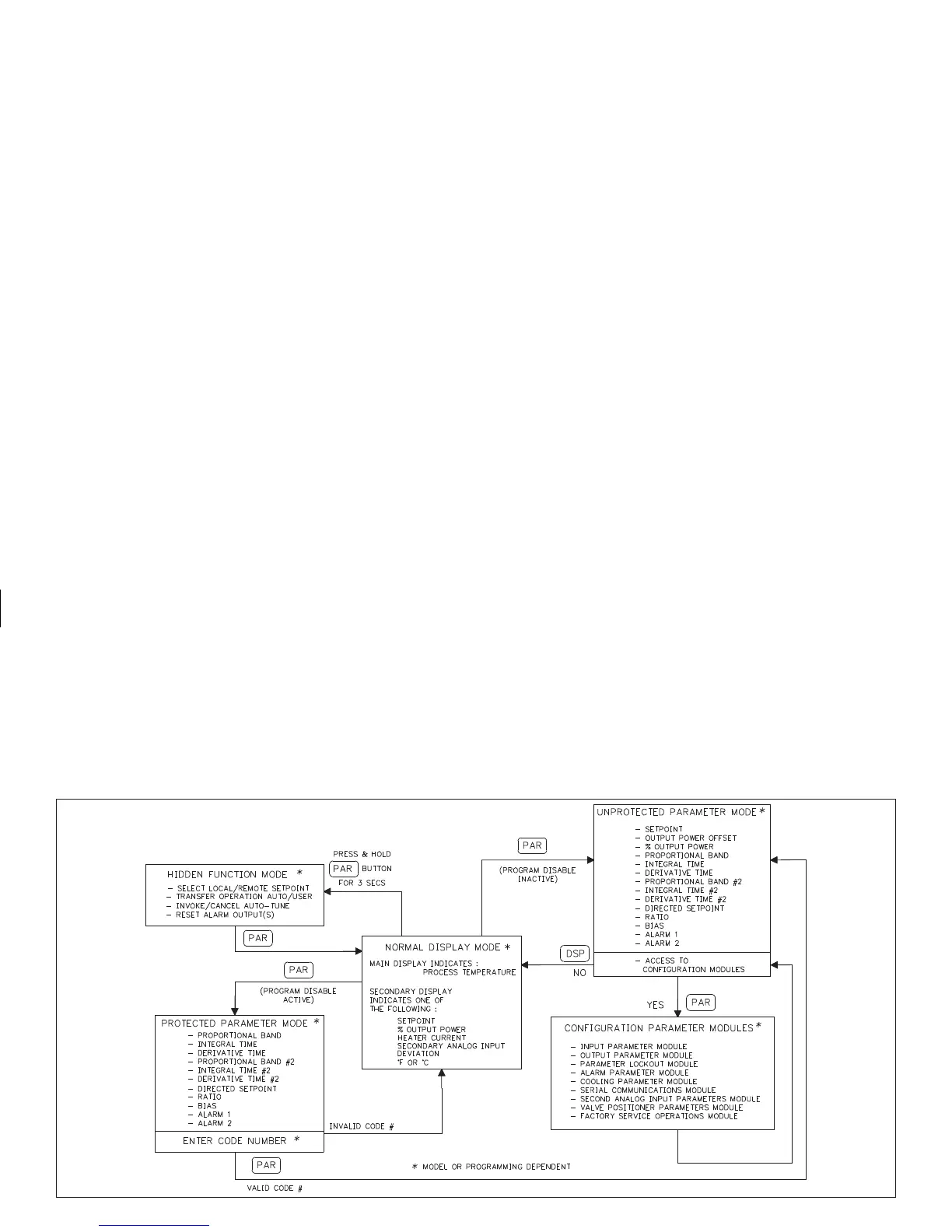

Figure 12, Operational/Programming Modes
