QUICKPLATE MODULE CONNECTORS
The Quickplate Module is designed with two (2) industry-standard 2-pin 0B AUX ports to power camera accessories
when shooting. The two (2) auxiliary connectors provide a maximum combined output of 3.8 A. For example, if one (1)
port is drawing 2 A, the other can provide up to 1.8 A.
NOTE: Align the key and red mark on the AUX port with the key on the cable connector to connect.

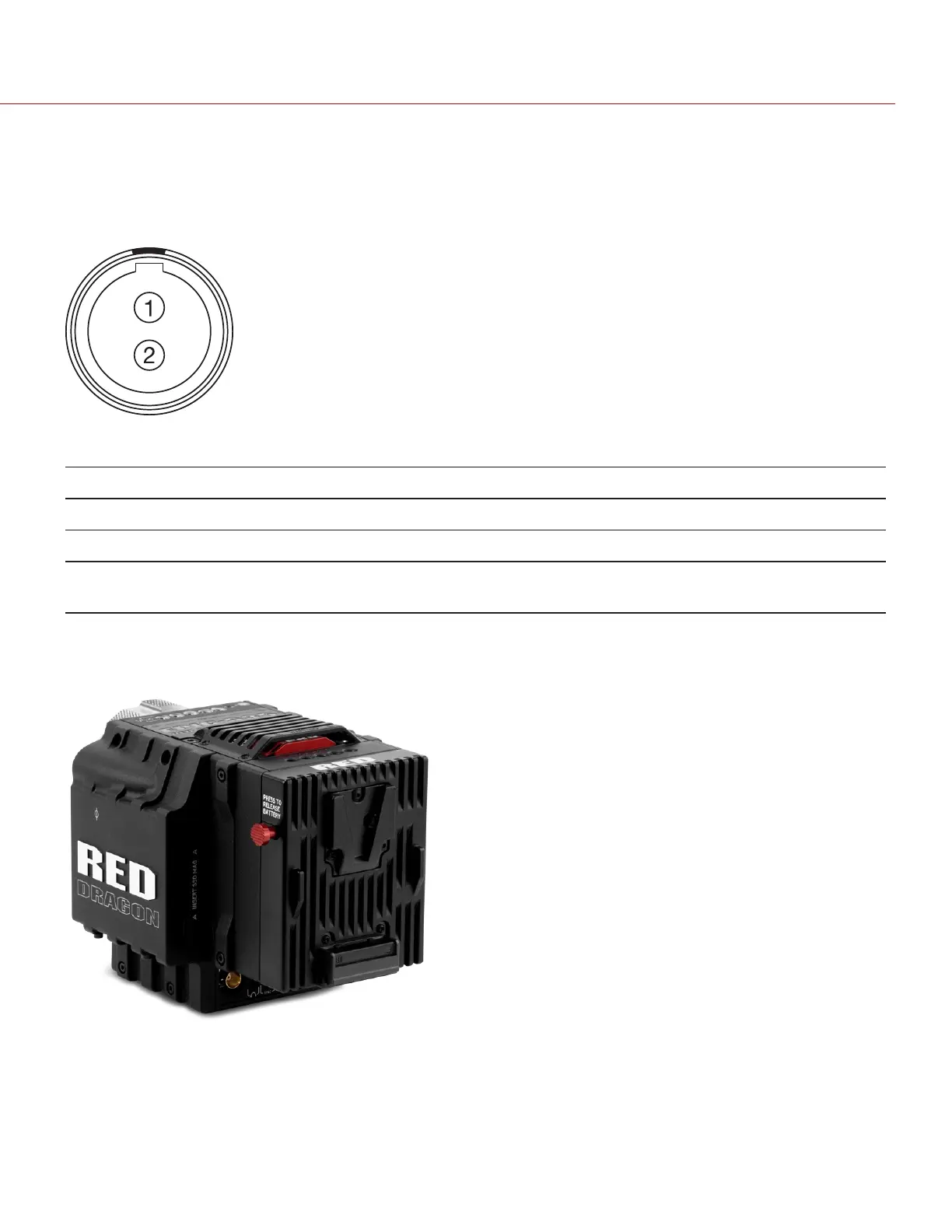

Figure: Front Face of Quickplate Module AUX Connector
2-PIN 0B LEMO AUX CONNECTORS
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through
power
Out
NOTE: Mating connector is EEG.0B.302.CLL.
ATTACH THE QUICKPLATE MODULE
Figure: Quickplate Module Attached to Camera
The Quickplate Module attaches to a Module Adaptor or +1 Adaptor Module in the same way that other DSMC
modules attach. For more information, go to "EPIC/SCARLET Power Module Operations" on page31.
